Specification	Metric	Imperial
Manufacturer	Hyundai Wia	Hyundai Wia
Model	XF6300	XF6300
Year of Manufacture	2016	2016
Machine Type	CNC Simultaneous 5-Axis Vertical Machining Center	CNC Simultaneous 5-Axis Vertical Machining Center
Control System	Siemens Sinumerik	Siemens Sinumerik
Table Diameter	Ø630 mm	Ø24.8 in
Maximum Table Load	600 kg	1,323 lbs
X-Axis Travel	650 mm	25.59 in
Y-Axis Travel	600 mm	23.62 in
Z-Axis Travel	500 mm	19.69 in
Rapid Traverse Rate (X/Y/Z)	60 / 60 / 60 m/min	2,362 / 2,362 / 2,362 IPM
Spindle Type	Built-In Motor Spindle	Built-In Motor Spindle
Spindle Taper	HSK-A63	HSK-A63
Maximum Spindle Speed	15,000 RPM	15,000 RPM
Spindle Power	31 / 25 kW	41.6 / 33.5 HP
Spindle Torque	153 / 123 Nm	112.8 / 90.7 lb-ft
Guideway Type	Roller Linear Guides	Roller Linear Guides
Tool Magazine Capacity	34 Tools	34 Tools
Tool Change Time (Chip-to-Chip)	4.5 sec	4.5 sec
Rotary Table Axes	Direct Drive A & C Axes	Direct Drive A & C Axes
Linear Scales	Standard on X, Y & Z Axes	Standard on X, Y & Z Axes
Rotary Scales	Standard on A & C Axes	Standard on A & C Axes
Thermal Compensation	Box-in-Box Structure with Oil Cooling System	Box-in-Box Structure with Oil Cooling System

Description

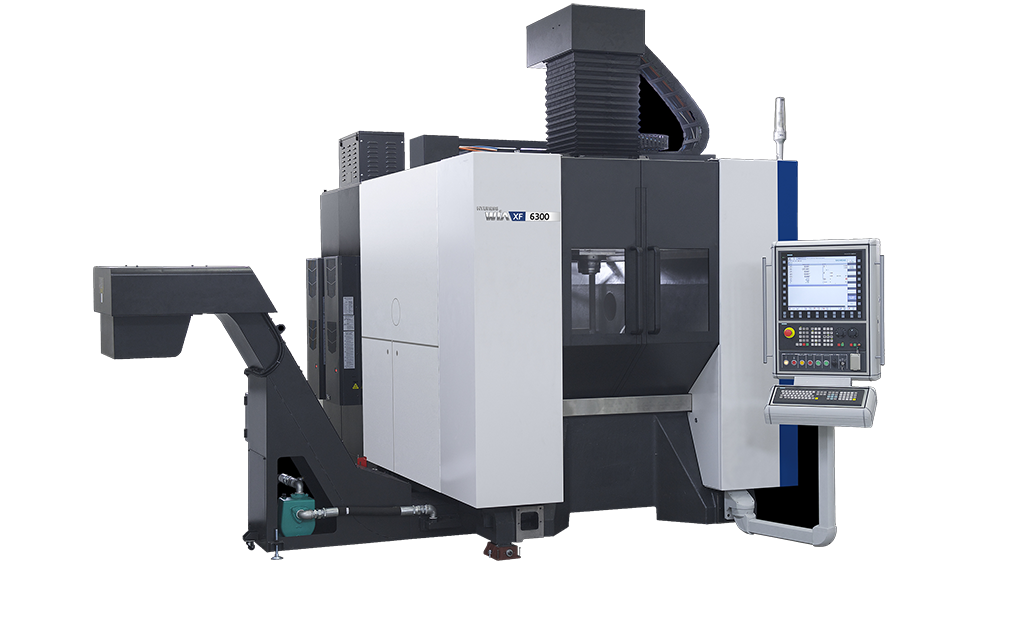

The Hyundai Wia XF6300 is a high-performance simultaneous 5-axis vertical machining center developed by Hyundai Wia’s European R&D Center for advanced mold & die, aerospace, medical, automotive, and precision engineering applications. Manufactured in 2016, the XF6300 combines high-speed machining capabilities with exceptional thermal stability and positioning accuracy. The machine features travels of 650 mm (X), 600 mm (Y), and 500 mm (Z), together with a Ø630 mm direct-drive rotary table capable of full simultaneous 5-axis machining. The A and C rotary axes utilize Direct Drive Motor (DDM) technology, providing outstanding dynamic performance, accuracy, and smooth motion control. The built-in 15,000 RPM HSK-A63 spindle delivers up to 31 kW and 153 Nm torque, making the machine suitable for both high-speed finishing and demanding roughing operations. A 34-position automatic tool changer with a rapid 4.5-second chip-to-chip tool change time maximizes productivity. To ensure world-class machining accuracy, the XF6300 is equipped with linear scales on the X, Y, and Z axes and rotary scales on the A and C axes. Hyundai Wia’s advanced Box-in-Box machine structure combined with a standard oil-cooling system minimizes thermal deformation during long machining cycles, ensuring consistent accuracy and repeatability. With rapid traverse rates of 60 m/min on all linear axes, roller guideways, direct-drive rotary axes, and premium Siemens control technology, the Hyundai Wia XF6300 is an ideal solution for complex 5-axis machining applications requiring speed, precision, and reliability.
