Specification	Metric	Imperial
Manufacturer	Doosan	Doosan
Model	Puma TW2600M-GL	Puma TW2600M-GL
Year of Manufacture	2019	2019
Machine Type	CNC Twin-Spindle Double-Turret Turning Center with Gantry Loader	CNC Twin-Spindle Double-Turret Turning Center with Gantry Loader
CNC Control	Fanuc i Plus	Fanuc i Plus
Number of Axes	6	6
Main Chuck Size	210 mm	8.25 in
Chuck Configuration	(2) 3-Jaw Chucks	(2) 8 in 3-Jaw Chucks
Maximum Swing Over Bed	450 mm	17.71 in
Maximum Turning Diameter	360 mm	14.17 in
Maximum Turning Length	170 mm	6.69 in
Center Distance	460 mm	18.11 in
Maximum Part Weight	5.9 kg	13 lbs
Number of Turrets	2	2
Upper Turret Positions	10 Stations	10 Stations
Lower Turret Positions	10 Stations	10 Stations
Turret Type	BMT55 Live Tooling	BMT55 Live Tooling
X-Axis Travel (Upper Turret)	191 mm	7.5 in
Z-Axis Travel (Upper Turret)	180 mm	7.1 in
X2-Axis Travel (Lower Turret)	191 mm	7.5 in
Z2-Axis Travel (Lower Turret)	180 mm	7.1 in
Maximum Bar Capacity	51 mm	2 in
Spindle Bore	61 mm	2.4 in
Spindle Nose	A2-6	A2-6
Spindle Motor Power	18.6 kW	25 HP
Maximum Spindle Speed	3,500 RPM	3,500 RPM
Rapid Traverse Rate (X / Z / X2 / Z2)	24 m/min	945 IPM
Live Tooling	Included	Included
Maximum Live Tool Speed	5,000 RPM	5,000 RPM
Live Tool Power (Upper Turret)	7.5 kW	10 HP
Live Tool Power (Lower Turret)	7.5 kW	10 HP
Machine Cutting Hours	578 Hours	578 Hours
Automation System	GL200 Gantry Loader with Part Flippers	GL200 Gantry Loader with Part Flippers
Part Handling	(2) Part Stackers	(2) Part Stackers
Chip Conveyor	Included	Included
Coolant System	Included	Included
Machine Weight	7,301 kg	16,097 lbs
Machine Dimensions (L × W × H)	3,876 × 2,715 × 3,395 mm	152.6 × 106.9 × 133.65 in

Description

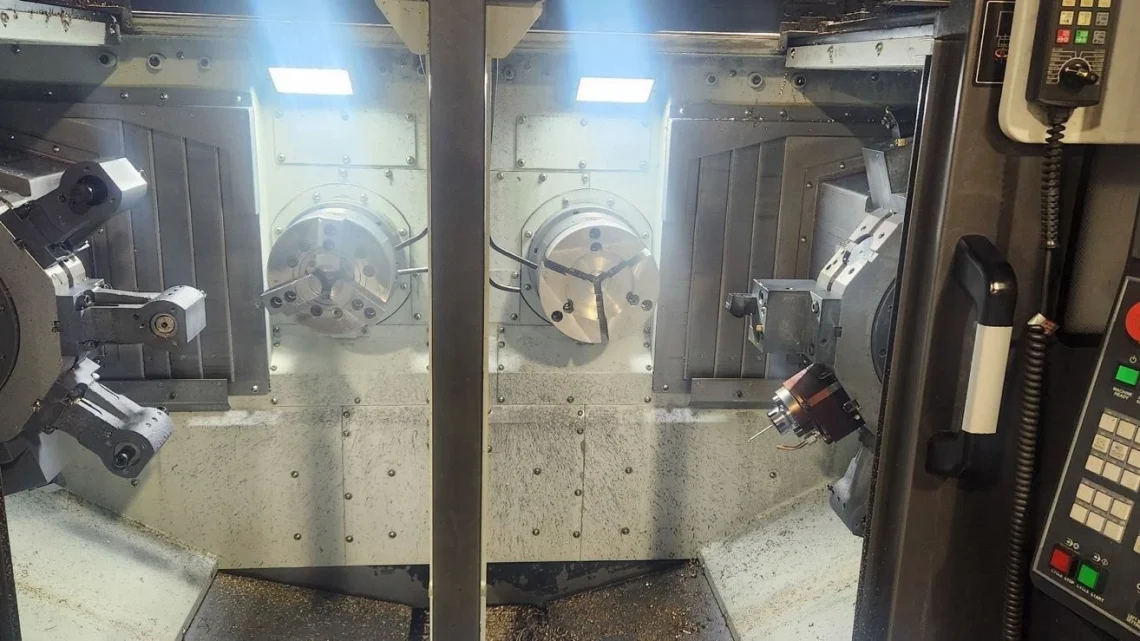

The Doosan Puma TW2600M-GL is a highly automated CNC twin-spindle, double-turret turning center engineered for high-volume production environments. Manufactured in 2019, this machine integrates twin-spindle machining, dual BMT55 live-tool turrets, and a fully automated GL200 gantry loading system with part flippers, enabling complete machining of complex components with minimal operator intervention. The machine features two 8-inch 3-jaw chucks, twin 10-station live-tool turrets, spindle speeds up to 3,500 RPM, and live tooling speeds up to 5,000 RPM. This configuration allows simultaneous machining operations on both spindles, dramatically reducing cycle times and increasing throughput. A major highlight of this machine is its exceptionally low usage, with only 578 cutting hours, making it comparable to a near-new production system. The integrated gantry loader, part flippers, and dual part stackers provide a complete automation package ideal for automotive, hydraulic, aerospace, medical, and precision component manufacturing. The machine is reported to be in excellent condition and represents an outstanding opportunity to acquire a highly automated, low-hour production cell at a fraction of new replacement cost.
