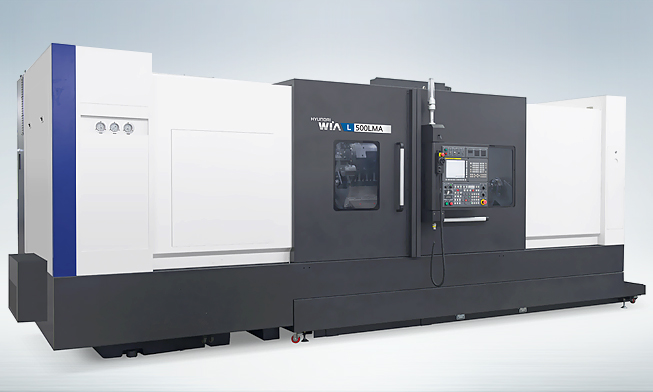

Available now : used HYUNDAI WIA L500LMA CNC Turning Center Chuck 21 inch – Year 2024 made in South of Korea
| HYUNDAI WIA L500LMA CNC Turning Center Chuck 21 inch – Year 2024 | |||
|---|---|---|---|
| Specification | Metric | Imperial | Description |
| Manufacturer | HYUNDAI WIA | HYUNDAI WIA | CNC Turning Center |
| Model | L500LMA | L500LMA | CNC Turning & Milling Center |
| Year of Manufacture | 2024 | 2024 | Latest Generation Machine |
| Machine Type | CNC Turning Center | CNC Turning Center | Turning Center with Live Tooling |
| Maximum Turning Diameter | 690 mm | 27.17 in | Maximum Machining Diameter |
| Maximum Turning Length | 2,100 mm | 82.68 in | Maximum Machining Length |
| Chuck Size | 533.4 mm | 21 in | Hydraulic Chuck |

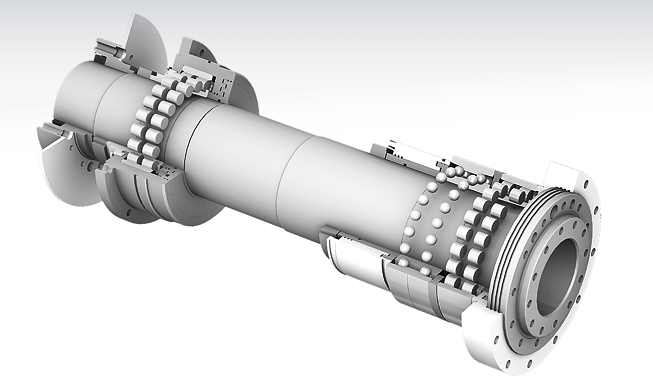

| Spindle Drive Type | Gear Drive | Gear Drive | High Torque Transmission |
| Maximum Spindle Speed | 1,500 rpm | 1,500 rpm | Main Spindle Speed |
| Spindle Motor Power | 45 / 37 kW | 60.3 / 49.6 HP | Maximum / Continuous Output |
| Maximum Spindle Torque | 2,990 / 2,459 Nm | 2,205 / 1,814 lb-ft | Maximum / Continuous Torque |
| X-Axis Travel | 400 mm | 15.75 in | Cross Travel |
| Z-Axis Travel | 2,210 mm | 87.01 in | Longitudinal Travel |
| Rapid Traverse (X) | 20 m/min | 787.4 ipm | X-Axis Rapid Feed |
| Rapid Traverse (Z) | 18 m/min | 708.7 ipm | Z-Axis Rapid Feed |

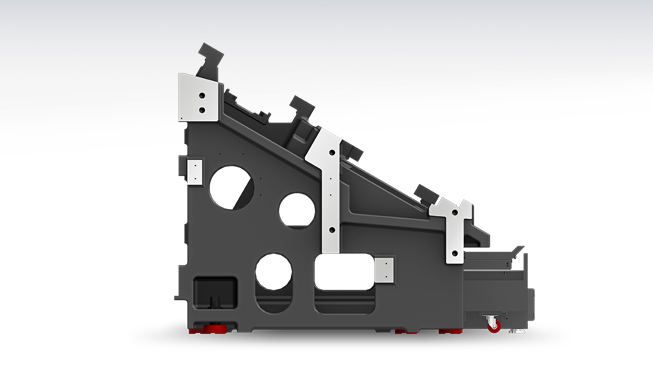

| Slide Type | BOX Guideways | BOX Guideways | Heavy-Duty Box Way Construction |

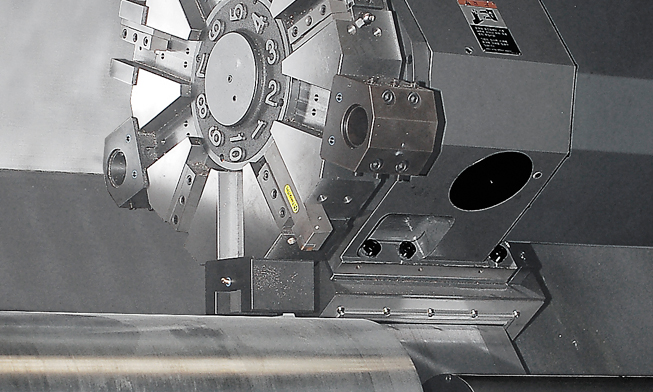

| Turret Capacity | 12 Stations | 12 Stations | Tool Positions |
| Turning Tool Size | 32 mm | 1.26 in | Square Turning Tool Capacity |
| Boring Bar Capacity | 63 mm | 2.48 in | Maximum Boring Bar Diameter |
| Live Tooling | Yes | Yes | Milling, Drilling & Tapping Capability |
| Live Tool Speed | 4,000 rpm | 4,000 rpm | Maximum Milling Spindle Speed |
| Key Features | • Heavy-duty CNC turning center with live tooling • Large 21-inch hydraulic chuck • High-torque geared spindle drive • Powerful 45 kW spindle motor • Up to 2,990 Nm spindle torque • 12-station servo turret • Live tooling up to 4,000 rpm • Rigid BOX guideway construction for superior cutting stability • Long 2,100 mm turning capacity • Ideal for machining large shafts, rollers, oil & gas components, energy equipment, heavy machinery parts and precision industrial components | ||
