02/07/2026

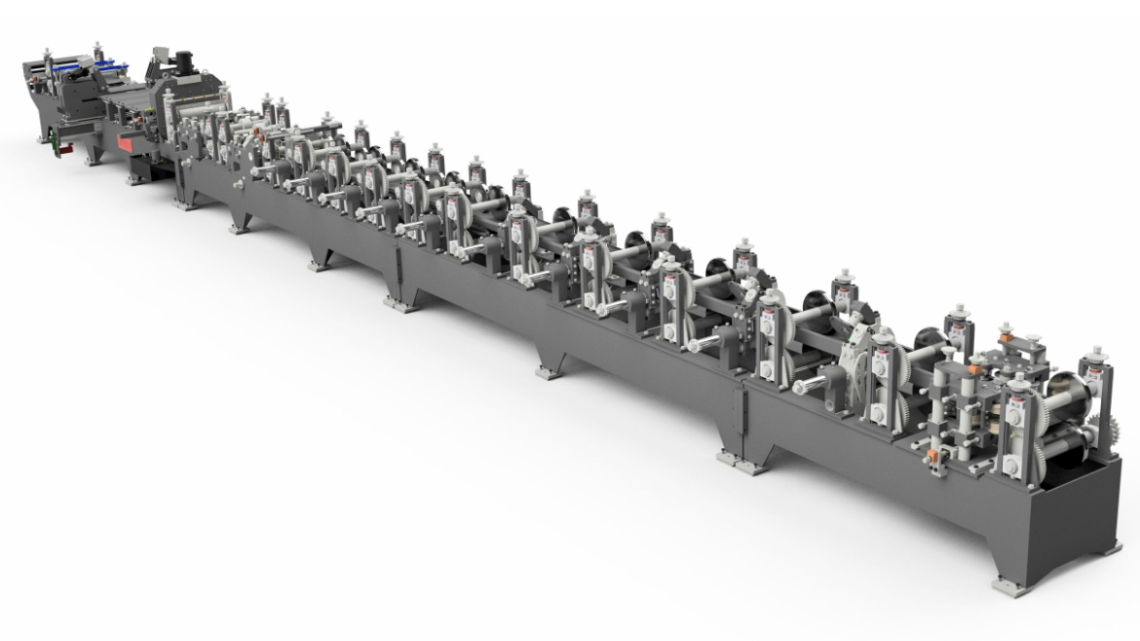

Available now : used HAYES International Quick Change QC 300 Roll Forming Machine for U, C, Z, Sigma Profiles – Year 2015
| HAYES International Quick Change QC 300 Roll Forming Machine for U, C, Z and Sigma Profiles – Year 2015 | |
|---|---|
| Manufacturer | HAYES International |
| Model | QC 300 |
| Machine Type | Roll Forming Machine |
| Profile Capability | |

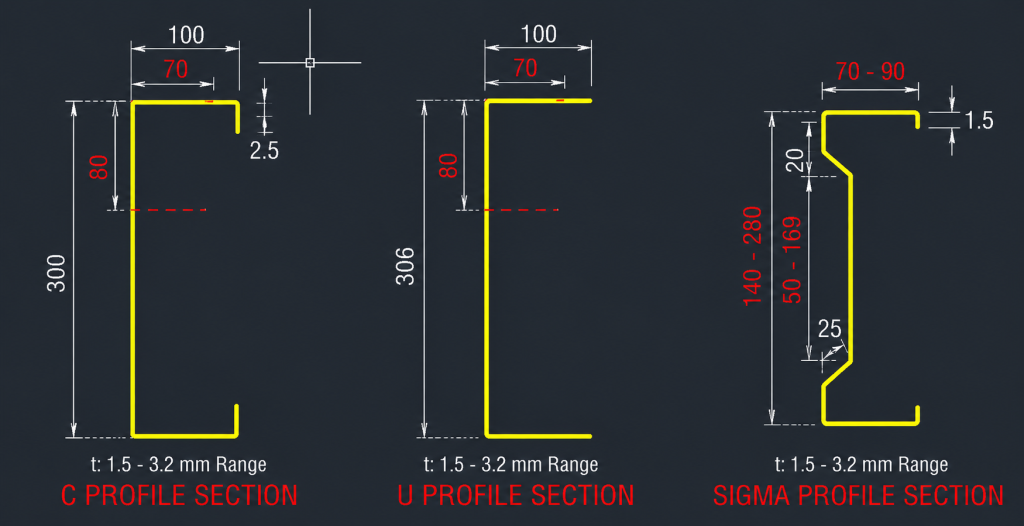

| Supported Profiles | U, C, Z and Sigma Profiles |
| Coil Specifications | |
| Coil Width Range | 130 – 540 mm (5.12″ – 21.26″) |
| Material Thickness | 1.5 – 3.2 mm (0.059″ – 0.126″) |
| Material Tensile Strength | 345 – 550 MPa (50,038 – 79,771 PSI) |
| Material Type | Galvanized Steel, Zinc-Coated Steel |
| Performance | |
| Nominal Roll Forming Speed | 20 m/min (65.6 ft/min) |
| Decoiler | |
| Decoiler Capacity | 8,000 kg (17,637 lbs) |
| Machine Features | |
|
|
