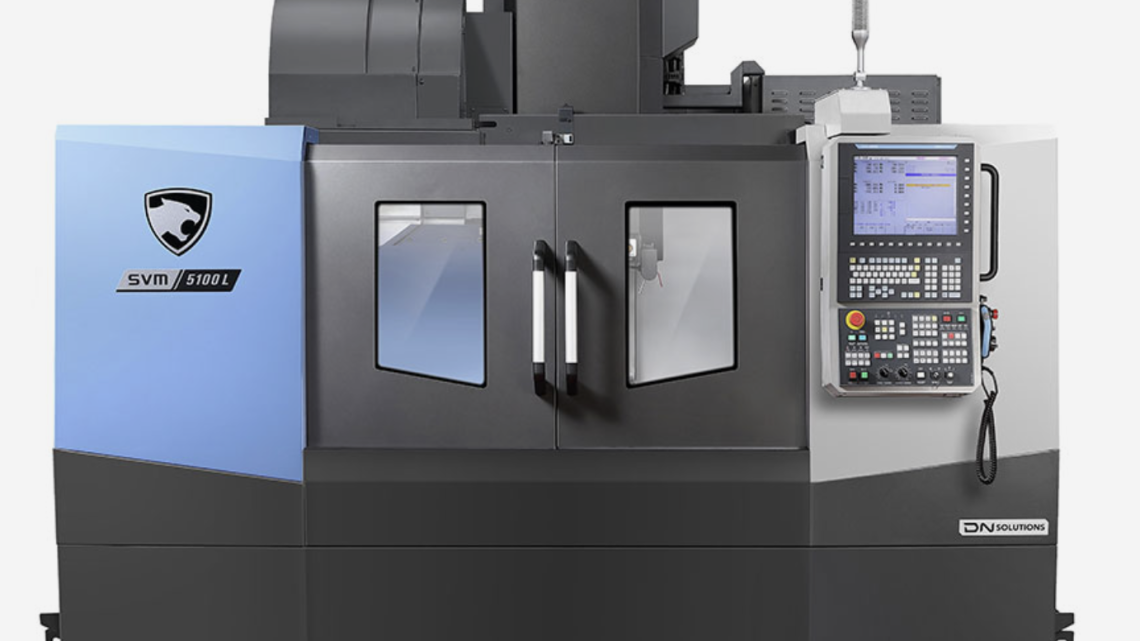

Available now : used DN Solutions ( DOOSAN ) SVM 5100L CNC Vertical Machining Center – Year 2025 made in South of Korea
| DN Solutions ( DOOSAN ) SVM 5100L CNC Vertical Machining Center – Year 2025 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | DN Solutions ( DOOSAN ) | DN Solutions ( DOOSAN ) |
| Model | SVM 5100L | SVM 5100L |
| Machine Type | CNC Vertical Machining Center | CNC Vertical Machining Center |
| Year | 2025 | 2025 |
| CNC Control | Fanuc | Fanuc |
| Number of Axes | 3 + 4th Axis Rotary Table | 3 + 4th Axis Rotary Table |
| X-Axis Travel | 1,270 mm | 50 in |
| Y-Axis Travel | 510 mm | 20 in |
| Z-Axis Travel | 510 mm | 20 in |
| Rapid Traverse (X/Y/Z) | 36 m/min | 1,417 ipm |
| Table Size | 1,320 × 510 mm | 52 × 20 in |
| Maximum Table Load | 800 kg | 1,764 lbs |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Power | 18.5 kW | 25 HP |
| Maximum Spindle Torque | 95.5 Nm | 70.5 ft-lb |
| Spindle Taper | CAT 40 / ISO 40 | CAT 40 / ISO 40 |
| Tool Magazine Capacity | 30 ATC | 30 ATC |
| Maximum Tool Diameter | 80 mm (125 mm adjacent pocket empty) | 3.15 in (4.92 in adjacent pocket empty) |
| Maximum Tool Length | 300 mm | 11.8 in |
| Machine Dimensions (L × W × H) | 2,210 × 3,100 × 2,681 mm | 87 × 122 × 106 in |
| Machine Weight | 6,500 kg | 14,330 lbs |
| Chip Removal | Chip Conveyor | Chip Conveyor |
| 4th Axis | Tsudakoma RWE-160 Rotary Table Included | Tsudakoma RWE-160 Rotary Table Included |
| Inspection System | Probes Included | Probes Included |
| Additional Features | • Fanuc CNC Control • 12,000 RPM Direct-Coupled Spindle • CAT 40 Spindle • 30-Station Automatic Tool Changer (ATC) • Chip Conveyor • Tsudakoma RWE-160 4th Axis Rotary Table • Touch Probe System • High-Speed Vertical Machining Center | |
