Available now : SEIBU KOKI LHS-3318D Universal Facing Lathe Swing Over Carriage 1800mm – Year 1989 made in Japan Lathe

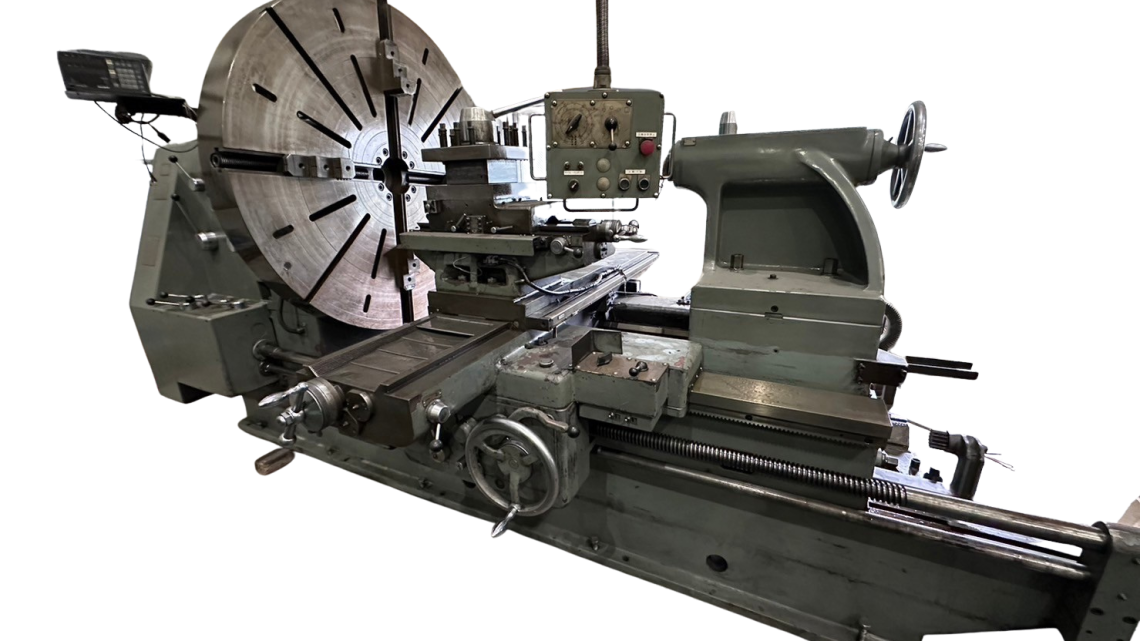

SEIBU KOKI LHS-3318D Universal Facing Lathe Swing Over Carriage 1800mm – Year 1989
| Machine Specifications | ||
|---|---|---|
| Swing Over Bed | 49.9 in | 1270 mm |
| Swing Over Carriage | 70.9 in | 1800 mm |
| Swing Over Saddle | 31.7 in | 805 mm |
| Cutting Width | 8.3 – 35.8 in | 210 – 910 mm |
| Bed Width | 30.3 in | 770 mm |
| Spindle Speed Range | 0 – 250 RPM, 4-Step Variable Speed | |
| Front Spindle Bearing Diameter | 9.1 in | 230 mm |
| Longitudinal Feed Range | 0.002 – 0.079 in/rev | 0.05 – 2.0 mm/rev (12 Steps) |
| Cross Feed Range | 0.002 – 0.079 in/rev | 0.05 – 2.0 mm/rev (12 Steps) |
| Tool Slide Feed Range | 0.001 – 0.039 in/rev | 0.025 – 1.0 mm/rev (12 Steps) |
| Automatic Tool Slide Travel | 15.7 in | 400 mm |
| Main Motor | 18 HP | 15 kW AC Motor (30 min / Continuous) |
| Overall Bed Length | 131.5 in | 3340 mm |
| Required Floor Space | 100.4 x 153.5 in | 2550 x 3900 mm |
| Machine Weight | 21,605 lb | 9800 kg |
| Standard Accessories | Operating Tools, Foundation Bolts, Center Rest Set | |
| Hardened Surfaces | Bed, Saddle, and Slide Surfaces | |
| Lead Screw Pitch | 0.47 in | P = 12 mm |
