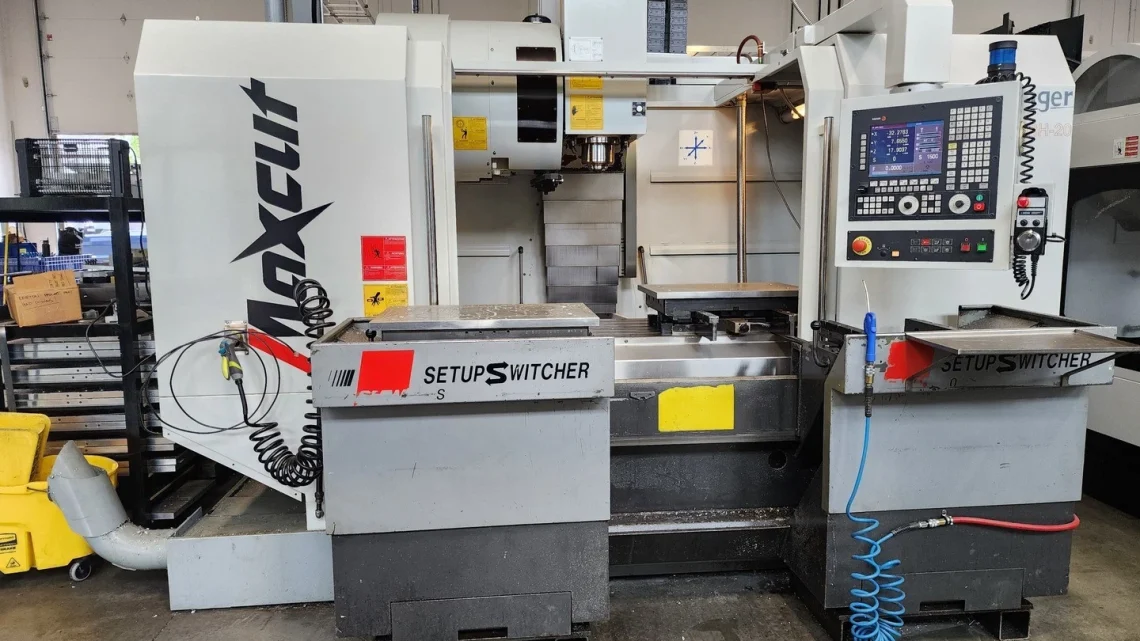

Available now : Maxcut Challenger RH-20 CNC Vertical Machining Center – Year 2012 made in Taiwan
| Maxcut Challenger RH-20 CNC Vertical Machining Center – Year 2012 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | Maxcut | Maxcut |
| Model | Challenger RH-20 | Challenger RH-20 |
| Year of Manufacture | 2012 | 2012 |
| Serial Number | 1223321597 | 1223321597 |
| CNC Control | Fagor 8055i/A MC with LCD Color Display | Fagor 8055i/A MC with LCD Color Display |
| Table | ||
| Table Size | 1300 × 600 mm | 51.18″ × 23.62″ |
| Table Height | 840 mm | 33″ |
| Maximum Table Load | 800 kg | 1,760 lbs |
| T-Slots | 5 T-Slots | 5 T-Slots |
| Axis Travels | ||
| X-Axis Travel | 1120 mm | 44.09″ |
| Y-Axis Travel | 635 mm | 25.00″ |
| Z-Axis Travel | 610 mm | 24.02″ |
| Spindle | ||
| Spindle Taper | ISO 40 / CAT 40 | ISO 40 / CAT 40 |
| Maximum Spindle Speed | 10,000 rpm | 10,000 rpm |
| Spindle Bearing Inside Diameter | 70 mm | 2.756″ |
| Spindle Center to Column | 675 mm | 26.58″ |
| Spindle Nose to Table | 30 – 640 mm | 1.18″ – 25.19″ |
| Spindle Motor Power | 11.2 / 13.8 kW | 15 / 18.5 HP |
| Automatic Tool Changer (ATC) | ||
| ATC Type | Swing Arm Type | Swing Arm Type |
| Tool Capacity | 24 Tools | 24 Tools |
| Tool Selection | Bi-Directional Shortest Path | Bi-Directional Shortest Path |
| Maximum Tool Weight | 8 kg | 17.6 lbs |
| Maximum Tool Diameter | 130 mm | 5.12″ |
| Maximum Tool Diameter (Adjacent Pocket) | 70 mm | 2.76″ |
| Maximum Tool Length | 300 mm | 11.81″ |
| Feed Rates | ||
| Rapid Traverse X/Y/Z | 24 m/min | 1,000 ipm |
| Cutting Feed Rate X/Y/Z | 15 m/min | 600 ipm |
| Accuracy | ||
| Positioning Accuracy | ±0.005 mm | ±0.0002″ |
| Repeatability | ±0.002 mm | ±0.00008″ |
| Motors | ||
| X-Axis Servo Torque | 14.84 Nm | 10.95 lb-ft |
| Y-Axis Servo Torque | 14.84 Nm | 10.95 lb-ft |
| Z-Axis Servo Torque | 27.34 Nm | 20.16 lb-ft |
| Coolant Pump Power | 0.56 kW | 0.75 HP |
| Electrical | ||
| Voltage | 400 V | 400 V |
| Phase | 3 Phase | 3 Phase |
| Current | 60 Amps | 60 Amps |
| Power Requirement | 35 kVA | 35 kVA |
| Coolant & Lubrication | ||
| Coolant Tank Capacity | 210 Liters | 55.5 US Gallons |
| Through Spindle Coolant | Included | Included |
| Wash Down System | Coolant Gun Included | Coolant Gun Included |
| Automatic Lubrication | Included with Low Lubrication Alarm | Included with Low Lubrication Alarm |
| Machine Features | ||
| Full Enclosure Guard, Rigid Tapping, Portable MPG, Precision Ground Ball Screws, Heavy-Duty Ribbed Cast Iron Construction, One-Piece Box-Type Base, Telescopic Way Covers, Chip Auger Conveyor, Heat Exchanger, Low Voltage Circuit System, EMC-SCHAFFNER EMC Protection, Fully Enclosed Heavy-Duty Metal Guarding with Removable Side Doors. | ||
| Dimensions & Weight | ||
| Machine Dimensions (L × W × H) | 3300 × 2500 × 2800 mm | 132″ × 100″ × 112″ |
| Floor Space Required | 5270 × 3250 mm | 207″ × 128″ |
| Machine Weight | 4,760 kg | 10,494 lbs |
| Shipping Weight | 6,500 lbs | 2,948 kg |
| Additional Equipment | SMW Setup Switcher Model 150S NOT Included | SMW Setup Switcher Model 150S NOT Included |
