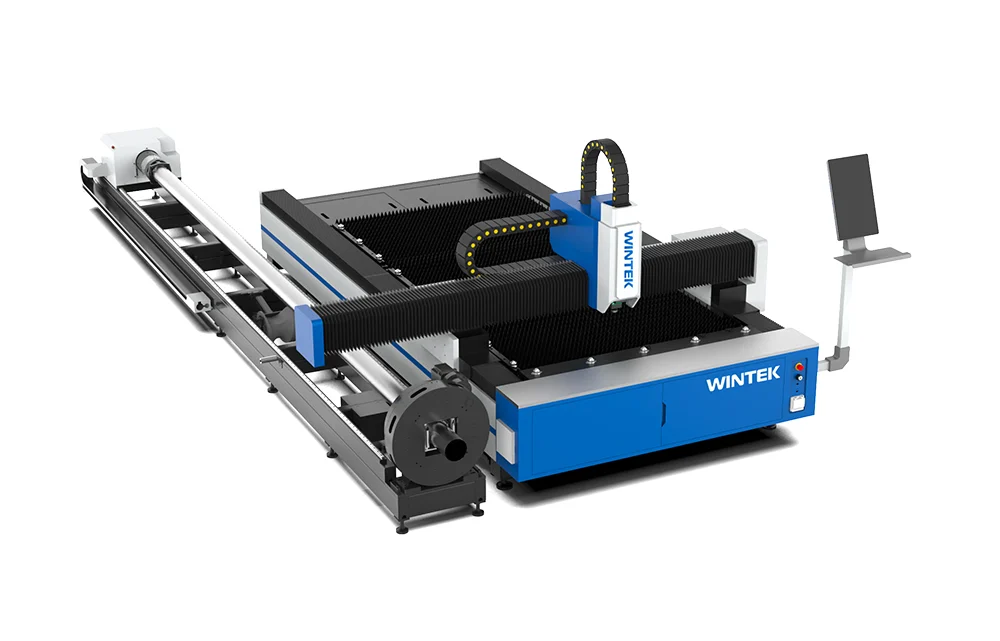

The dual-use sheet and tube laser cutting solution is a high-performance system engineered to combine flat metal and pipe processing in one efficient platform. It is capable of handling metal sheets as well as round, square, and custom-shaped tubes, making it suitable for a wide range of industrial fabrication needs.

Built with a precision pneumatic chuck system, it enables fast loading, secure clamping, and stable rotation of tubes during processing, ensuring improved cutting accuracy and higher production efficiency. Advanced fiber laser technology delivers strong beam quality, high electro-optical conversion efficiency, and fast cutting speeds, producing clean and precise results across different metal materials.

This machine is widely used in industries such as sheet metal processing, automotive parts manufacturing, construction steel structures, and metal furniture production, where high productivity and reliable cutting performance are required.

Key Features

1. Dual-Use Cutting System

Supports both sheet metal cutting and tube cutting in one machine, enabling flexible production for a wide range of industrial fabrication requirements and reducing the need for separate equipment.

2. Wide Power Range (1KW–30KW)

Offers multiple laser power options from 1KW to 30KW, allowing users to process different material thicknesses with stable performance, from thin sheet metal to heavy industrial steel plates.

3. High Precision CNC Control

Advanced CNC control system ensures ultra-precise positioning accuracy, excellent repeatability, and smooth cutting paths, resulting in clean edges and high-quality finished parts with minimal post-processing.

4. High-Speed Cutting Performance

Equipped with an optimized motion structure, high-response servo motors, and fast acceleration system, the machine significantly improves cutting efficiency for mass production environments.

5. Premium Fiber Laser Source

Adopts a high-performance fiber laser generator with excellent beam quality, high electro-optical conversion efficiency, stable output power, and long service life exceeding 100,000 hours, reducing overall operating costs.

6. Automatic Tube Rotary System

Designed for round, square, rectangular, and special-shaped tubes, the rotary system provides stable automatic clamping and high-precision rotation, ensuring consistent cutting accuracy during tube processing.

7. Intelligent Cutting Head

Features an advanced auto-focus laser cutting head that automatically adjusts focal position in real time according to material thickness, maintaining stable cutting quality and reducing operator intervention.

8. Rigid Machine Structure

Built with a heavy-duty welded bed and reinforced frame, the machine offers strong structural stability, reduced vibration during high-speed operation, and long-term durability for continuous industrial use.

Technical Specifications

Item	Specification
Laser Power	1KW – 30KW
Cutting Area (Sheet)	3000×1500mm / Customized
Tube Diameter Range	20–350mm (customizable)
Position Accuracy	±0.03mm
Reposition Accuracy	±0.02mm
Max Speed	Up to 120m/min
Control System	CNC Professional Controller
Supported Formats	DXF, DWG, AI, PLT
Cooling System	Industrial Water Chiller
Laser Source Type	Fiber Laser Generator



Applications

This dual-use sheet and tube laser cutting machine is widely used in a variety of metal fabrication industries that require high precision and efficient production. It is suitable for both small workshops and large-scale industrial manufacturing environments.

Typical applications include sheet metal processing, automotive parts manufacturing, construction steel structures, metal furniture production, electrical cabinet fabrication, and machinery parts production. With its ability to process both flat sheets and tubes, it significantly improves production flexibility and reduces equipment investment costs.

Applicable Materials

This machine is designed to cut a wide range of metal materials with stable performance and high precision, including carbon steel, stainless steel, mild steel, galvanized steel, aluminum, brass, copper, and various alloy metals.

It performs especially well on reflective and high-density metals, delivering smooth cutting edges and minimal thermal deformation.

Cutting Quality & Performance

The machine delivers excellent cutting quality with smooth, clean, and burr-free edges. Thanks to advanced fiber laser technology and a stable motion system, it ensures high precision and consistent performance during continuous operation.

Tube cutting is precise and stable, with no deformation during rotation, while sheet cutting achieves fine detail processing with minimal post-processing requirements. This greatly improves overall production efficiency.

Machine Structure

The machine is built with a heavy-duty welded steel frame to ensure long-term stability and durability. Key components include a high-performance fiber laser source, CNC control system, auto-focus cutting head, pneumatic chuck system, and industrial water cooling system.

The rigid structure minimizes vibration during high-speed operation, ensuring consistent cutting accuracy even under heavy workloads.

Optional Configurations

To meet different production requirements, the machine can be equipped with multiple optional configurations, including different laser brands, upgraded cutting heads, fully enclosed protective covers, automatic loading systems, rotary chuck upgrades, and dust removal systems.

These options allow users to customize the machine based on material type, production volume, and precision requirements.

Advantages

Compared with traditional cutting equipment, this machine offers significantly higher efficiency, lower operating costs, and greater flexibility. It combines sheet and tube processing in one system, reducing the need for multiple machines and saving workshop space.

With high-speed cutting capability, long service life, and stable performance, it is an ideal solution for modern metal fabrication industries.

FAQ

Q1: Can this machine cut both sheet metal and tubes?

Yes, this machine is a fully integrated dual-use laser cutting system designed for both sheet metal and tube processing. It allows users to switch between flat cutting and pipe cutting without changing equipment, significantly improving production flexibility and reducing investment costs.

Q2: What materials can it cut?

It can cut a wide range of metal materials with stable performance, including carbon steel, stainless steel, galvanized steel, aluminum, brass, copper, and various alloy metals. The fiber laser source ensures smooth cutting edges and minimal heat-affected zones across different materials.

Q3: What tube shapes are supported?

The machine supports multiple tube types, including round tubes, square tubes, rectangular tubes, oval tubes, and custom-shaped profiles. The automatic rotary chuck system ensures stable clamping and precise rotation during cutting.

Q4: What is the typical laser power range?

This machine is available in multiple power options ranging from 1KW to 30KW. Lower power models are suitable for thin sheet and light metal processing, while higher power configurations are designed for thick plate cutting and heavy industrial applications.

Q5: Is training provided for operation and installation?

Yes, we provide complete technical support including remote installation guidance, operation training, and maintenance instructions. Our engineers can assist customers step-by-step to ensure the machine is ready for production quickly and safely.

Q6: What is the warranty period?

The standard warranty period is 12 months. During this time, we provide free technical support and replacement of non-human-damaged parts. Long-term after-sales support and spare parts supply are also available to ensure stable machine operation.

Conclusion

The dual-use sheet and tube fiber laser cutting machine represents a new generation of intelligent metal processing equipment designed to meet the evolving demands of modern manufacturing. By integrating both sheet metal cutting and tube cutting capabilities into a single high-performance system, it significantly improves production flexibility, reduces equipment investment, and optimizes workshop space utilization.

With advanced fiber laser technology, high-precision CNC control, and a rigid machine structure, the system ensures exceptional cutting accuracy, smooth edge quality, and stable long-term performance. Whether processing thin metal sheets or heavy-duty tubes, the machine delivers consistent results with minimal post-processing, helping manufacturers increase productivity while maintaining high-quality standards.

The intelligent auto-focus cutting head, automatic rotary tube system, and high-speed motion components work together to provide efficient, stable, and reliable operation even in continuous industrial production environments. This makes the machine an ideal solution for industries such as sheet metal fabrication, automotive manufacturing, construction engineering, metal furniture production, and mechanical parts processing.

At Wintek Laser, we are committed to providing advanced laser solutions that combine innovation, reliability, and cost efficiency. Every machine is built to strict quality standards and tested for stable performance before delivery, ensuring customers receive equipment that is ready for long-term industrial use. In addition, we offer comprehensive technical support, remote installation guidance, operator training, and long-term after-sales service to ensure smooth operation and maximum return on investment.

Choosing this dual-use fiber laser cutting machine means choosing higher efficiency, lower production costs, and stronger market competitiveness. It is not just a cutting tool, but a complete solution for modern metal fabrication businesses aiming to upgrade their production capabilities and scale their operations globally.

With continuous technological innovation and customer-focused service, Wintek Laser will continue to support manufacturers worldwide in achieving smarter, faster, and more efficient metal processing solutions.
