The MAZAK INTEGREX i-630V/6 is a high-performance CNC Multi-Tasking Turn-Mill Machining Center engineered for large, complex, high-precision part production in sectors such as aerospace, energy, and heavy industry. It combines full 5-axis milling, powerful turning, and vertical machining capabilities in a single setup. Below is a highly technical breakdown of its advantages:

---

🔧 1. Multi-Tasking Capability (MILL + TURN + 5-Axis)

• Simultaneous 5-axis machining allows complex part geometries to be produced with fewer setups.
• Supports milling, turning, drilling, tapping, and deep hole boring on a single platform.
• Eliminates the need for multiple machines (lathe + mill), thus reducing floor space, operator time, and workholding costs.

---

⚙️ 2. High-Rigidity Gantry Design + Tilting Spindle Head

• The tilting B-axis spindle head (±150°) enables machining of inclined surfaces and undercuts without repositioning the workpiece.
• Double column gantry structure ensures maximum stiffness and thermal stability, critical for large, heavy parts.
• Roller guideways on all linear axes contribute to high rigidity and vibration dampening.

---

🚀 3. Powerful Spindle + Advanced Tooling

• Main Spindle (Milling):
  • Up to 10,000 rpm or 12,000 rpm (HSK-A100 or CAT50)
  • High-torque motorized spindle (up to 90 kW)
• Turning Spindle:
  • Built-in C-axis table rotates at up to 500 rpm (with ±0.0001° control), capable of heavy-duty turning operations.
  • Maximum workpiece weight: ~1,200 kg

---

📐 4. Large Work Envelope & Payload Capacity

• X / Y / Z travel: 1,050 mm / 1,050 mm / 1,600 mm
• Table diameter: 800 mm (rotary table), with integrated C-axis
• Suited for large aerospace housings, turbine components, engine casings, etc.

---

🧠 5. MAZATROL SmoothX CNC Control

• 5-axis simultaneous contouring with advanced path smoothing and jerk control.
• Touchscreen interface with SmoothX platform offers:
  • Optimized toolpath control
  • High-speed surface accuracy (via Hyper Smooth Control)
  • AI-based spindle and axis tuning for thermal compensation
  • 3D toolpath simulation and anti-collision technology

---

🔁 6. Automatic Tool Changer & Tool Management

• Up to 120-tool capacity ATC (optionally expandable)
• Tool breakage detection, tool life monitoring, and adaptive toolpath optimization
• Matrix magazine supports large-diameter and long tooling

---

🛠️ 7. In-Process Measurement & Automation Readiness

• Supports Renishaw RMP600 or similar probes for automatic tool and workpiece measurement
• Prepped for robot loading, pallet changers, and FMS integration
• Compatible with Mazak Smart Factory / iSMART automation ecosystem (IoT and data analytics)

---

🌡️ 8. Thermal Stability & Accuracy Features

• Symmetrical gantry structure minimizes thermal displacement
• Active spindle cooling and temperature compensation functions
• Accuracy class: ISO 230, JIS B6336, suitable for aerospace tolerances (<5µm)

---

🧩 9. Application Versatility

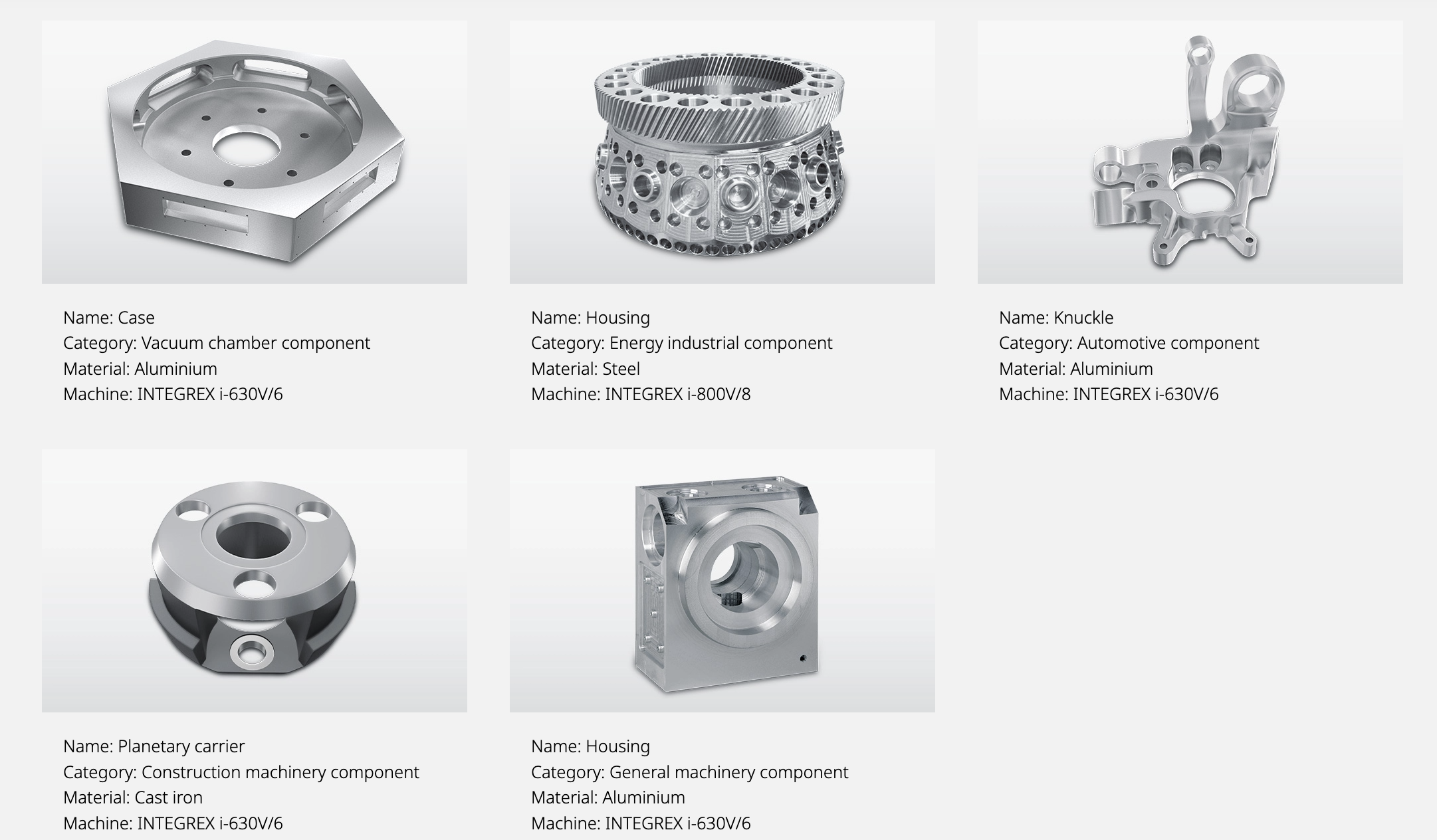

• Capable of producing complex parts such as:
  • Turbine impellers
  • Structural aerospace components
  • Oilfield valve bodies
  • Power generation rotors
• Supports hard part machining, inconel, titanium, and other superalloys with high material removal rates

---

✅ 10. Reduced Lead Time and Improved Precision

• One-chuck manufacturing minimizes part transfers, eliminating cumulative tolerance stack-ups.
• Significantly lowers setup time (up to 70% reduction) compared to traditional sequential operations.
• Enhanced repeatability and tight tolerance control due to integrated multi-functionality.
