Description

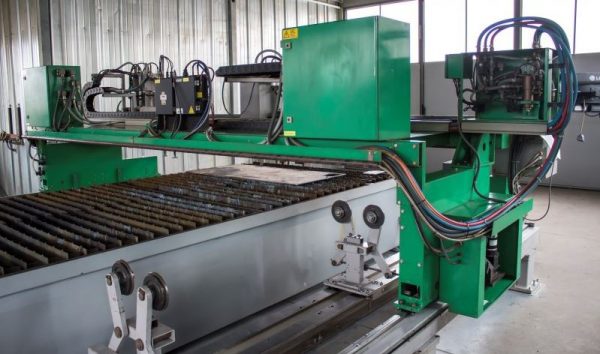

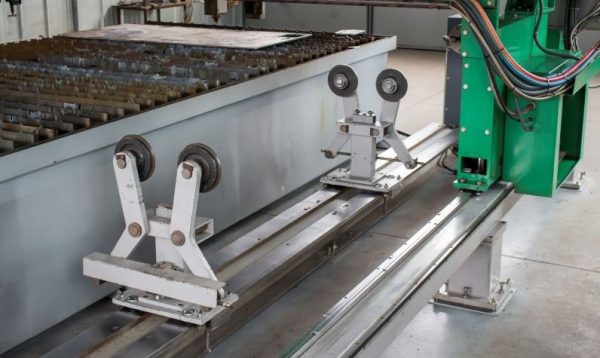

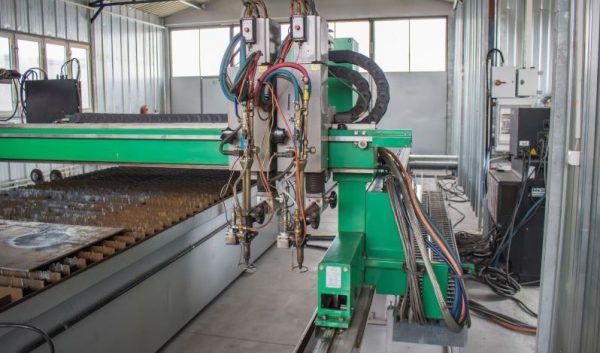

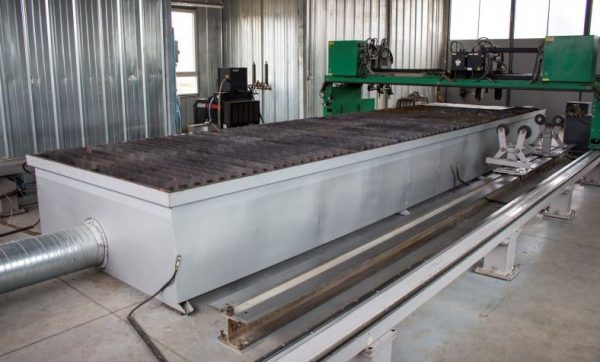

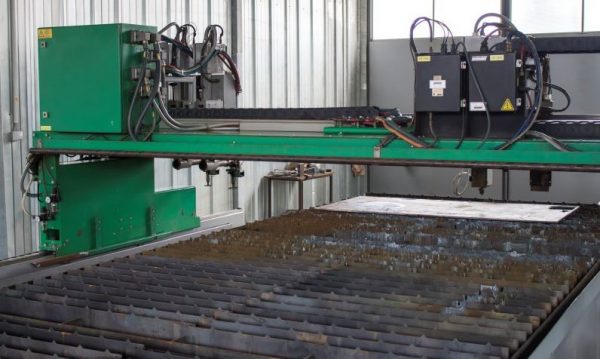

Zinser 2215 CNC500 – 1997 Model
Cutting machine – Plasma / gas
| Metal length | 2000 mm |
| Metal width | 8000 mm |
| Type of source | Plasma |
| Source model | Hypertherm 200A (HT2000) |
| CNC | Yes |
| Type of CNC | 500 ver. 3,56 |
| Power | 36 W |
| Zinser 2215 CNC500 Plasma Cutting | |
| Length x width x height | 5600.0 × 10800.0 × 2000.0 |
Production year: 1997
Control: CNC 500 ver. 3.56
Cut type: plasma, autogen
Thickness of plasma cutting: 30 mm
Autogen cutting thickness: 160 mm
Plasma source: HYPERTHERM 200A (HT2000)
Table type: suction
Working area: 2000 x 8000 mm
Positioning accuracy: 0.01 mm
Number of burners: 3
Cutting speed range: 0 – 10000 mm / min
Speed range: 0 – 10000 mm / min
Gate clearance: 400 mm
Diameter of processed pipes: 50 – 500 mm
Length of processed pipes: 2000 mm
Power consumption: 36 kW / h
Power supply: 400 V + 230 V
Machine width: 5600 mm
Depth of machine: 10800 mm
Machine height: 2000 mm
Very good condition
Documents: DTR, instruction manual
Standard equipment: CNC 500 controller, 3 burners, HYPERTHERM HT2000 plasma source, pipe smoking equipment, spare electrode nozzles, swirling rings
Optional equipment: filtration system, ASTER software with instruction manual and training
