Açıklama
X Axis | 3100 mm |
---|---|
Y Axis | 1000 mm |
Z Axis | 1500 mm |
CNC type | Heidenhain |
Table length | 3500 mm |
Table width | 800 mm |
Spindle taper | ISO 50 |
Max. spindle speed | 1800 rpm |
Spindle motor power | 26 kW |
Overhauled | no |
Weight | 15000 kg |

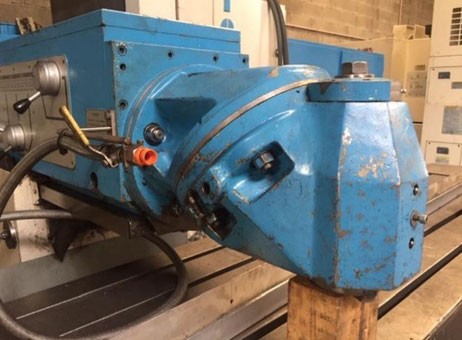

Fixed bed milling machine
Brand: Zayer
Model: 3500 BF 3
CNC Heidenhain
Table dimensions: 3500 x 800 mm
Longitudinal travels: 3,100 mm
Cross travels: 1000 mm
Vertical travel: 1500 mm
Speed: 1800 rpm
Cone type: ISO 50
Spindle power: 26 Kw
Weight: 15,000 Kg
