Description

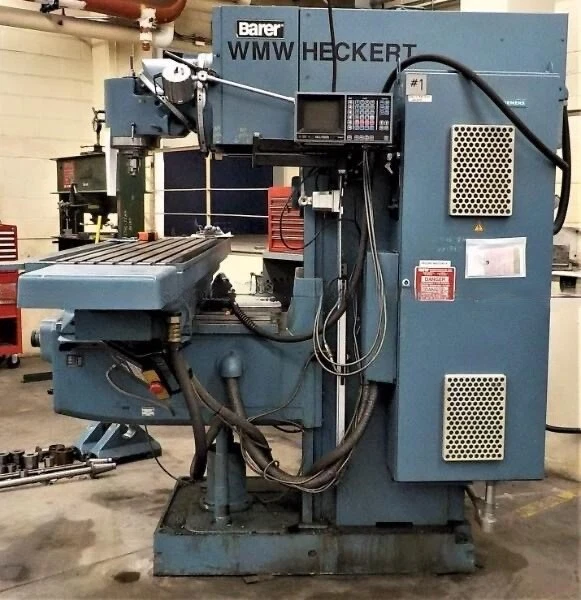

WMW HECKERT FU-400S ApUG Universal Console Milling Machine – Year 1991

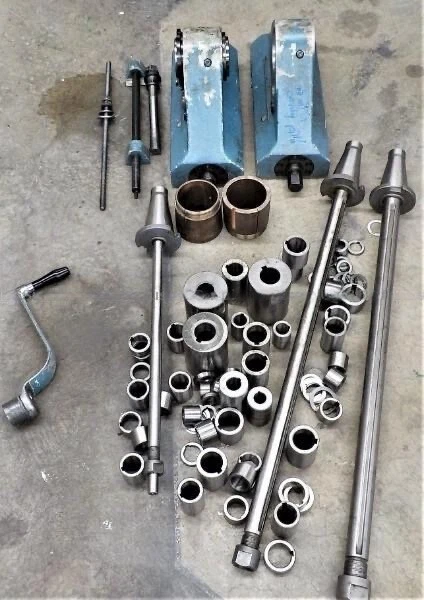

sale for WMW Heckerts FU 400-S ApUG , in working condition comes with some accessories
Technical specs
Details
x-travel 1320 mm
y-travel 345 mm
z-travel 400 mm
table clamping area 1800 x 450 mm
max. workpiece weight 1500 kg
table swivelling to both sides 45°
tool taper 50 SK
Diameter on front bearing 110 mm
blade cutter head diameter 315 mm
max. torque milling spindle 1850 Nm
speed steps 18
spindle turning speed range 28 – 1400 U/min
feeds X,Y-axis 16 – 800 mm/min
feeds Z-axis 5 – 250 mm/min
rapid traverse X,Y-axis 3150 mm/min.
rapid traverse z-axis 1000 mm/min
milling spindle motor 11 kW
feed motor 2,2 kW
weight of the machine ca. t
dimensions of the machine ca. m
Control unit conventional
