Açıklama
Turning length | 1050 mm |
---|---|
Turning Ø | 300 mm |
Ø above the bed | 520 mm |
Ø above transversing slide | 440 mm |

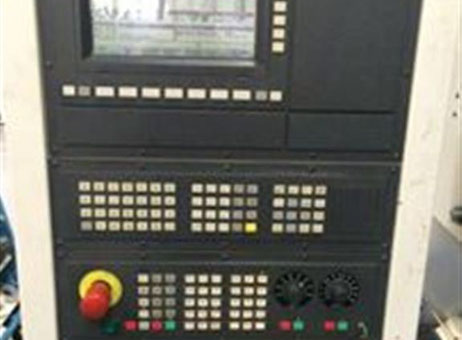

Type of CNC | Siemens 840 C |
Spindle taper | DIN 55026 |
Spindle bore | 100 mm |
Turning speed | 4000 rpm |
Tailstock | no |
Bar feeder | no |
Weight | 10500 kg |
2 revolvers 12 times,
driven tools,
Milling spindle HSK 50 A,
Tool changercracking spindle 96-fold,
chip conveyor,
Equipment
