Tsugami M08SY-II CNC Turning Center with EDGE Technologies Rebel V-65 Servo Bar Feeder – Year 2023

Contact us for price

Category:

Description

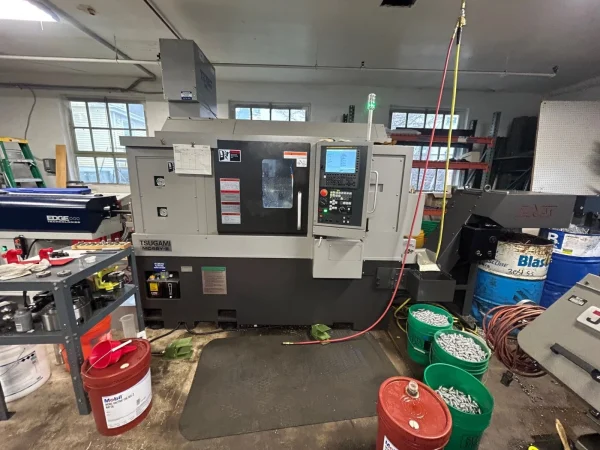

Tsugami M08SY-II CNC Turning Center – Year 2023

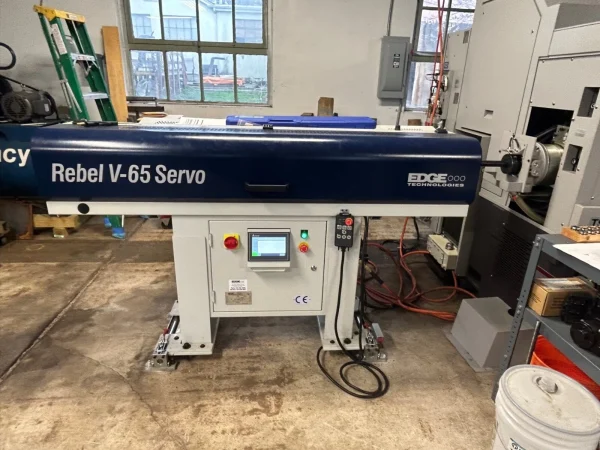

EDGE Technologies Rebel V-65 Servo Bar Feeder

Collet Chuck for sub and main spindle, 3 Jaw chuck for sub and main included

Standard Specification M08SY-II
Max machining diameter 280mm (11.02”)
Max bar capacity 65mm (2.56”)
Main spindle speed 4,500min-1
Back spindle speed 4,500min-1
Live tool speed 5,000min-1
Total number of turret positions 12
Rapid traverse rate X/Z X: 24 m/min Z: 27 m/min
Rapid traverse rate A/Y A: 27 m/min Y: 12 m/min
Main Spindle Motor 10/15 HP
Back Spindle Motor 7.4/10 HP
Live Tool Motor 1.2/5 HP
Width × Depth × Height 106”×74”×75”
Weight 13,228 lbs
C axis Main and Sub Spindle
Rigid Tap Main, Sub, Live tool

Including:

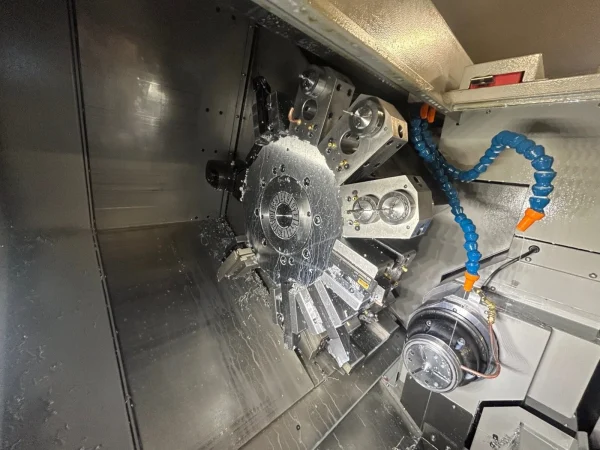

1. 12 Position Turret with All Positions Driven
2. 300 PSI High Pressure Coolant Thru Turret and Ejector
3. Y Axis Turret Positioning by Compound Slide with 3.94” Total Stroke
4. All Stations Live Tool Capable with 5Hp live tool motor
5. Integrated Motor Main Spindle with C-axis and Brake
6. 2 Speed Electronic Winding on Main Spindle for high torque at lower speeds
7. Integrated Motor Sub Spindle with C-axis and Brake
8. Spindle Chiller circulating temperature controlled oil to Main and Sub spindle
9. Rigid Tapping on Main, Sub, and Live tool
10. Spindle and Turret Air Purge
11. Tool Touch Setter, Manual Swing Down
12. 8” 3 Jaw Hollow Chuck on Main Spindle
13. 2.56” Bar Capacity Through Main Spindle
14. 6” 3 Jaw Hollow Chuck on Sub Spindle
15. 2.04” Though Sub Spindle Bore
16. Foot Switches for Main and Sub Chucks
17. Pneumatic Ejector, 5.5” stroke (3295-Y1471)
18. Parts Catcher with Conveyor
19. Thermal Compensation
20. Removable Coolant Tank (Rear Removal)
21. Turret Access Ports for easy realignment
22. Prepped for 1000 PSI Coolant Thru Turret (1000 PSI Pump Sold Separately)
23. Internal Work Light
24. RS232 Interface
25. Manual Handle Retrace
26. Door Interlock
27. Bar feeder Interface
28. Standard Tool Set
29. Leveling Plates, Bolts
30. Transit Clamps
31. Tooling Package Including:
a. 3 Double Turning Holders (3295-H520) (1.0” Square Shank tooling)
b. 4 Double Drill Holders (3295-H510) (1.5” Bore)
c. 2 Boring Sleeves (3295-H540-0100) (.750” ID)
d. 2 Boring Sleeves (3295-H540-0200) (1.00” ID)
e. 2 Cross Live Heads (3295-Y161) (ER25 Collet taper)
f. 1 Front Live Head (3295-Y171) (Front Only, ER25 Collet taper)
g. 1 Back Live Head (3295-Y301) (Back Only, ER25 Collet taper)
h. 1 Cut-off Holder (3295-H530) (1.0” / 25.4mm Square Shank)
i. Work Stopper (3296-Y1261)
