Trumpf TRUMATIC L 3050 2006 Model + Liftmaster
Metal length | 3000 mm |
---|---|
Power | 5000 W |
Metal width | 1500 mm |
Type | CO₂ |
Option to cut tubes | no |
Max thickness | 25 mm |
CNC | yes |
CNC type | Siemens |
Travel X | 3000 mm |
Travel Y | 1500 mm |
Travel Z | 115 mm |
Max weight of the workpiece | 710 kg |
Length x width x height | 9800.0 × 2000.0 × 4600.0 |
Weight | 11500 kg |
Worked hours | 21000 hours |

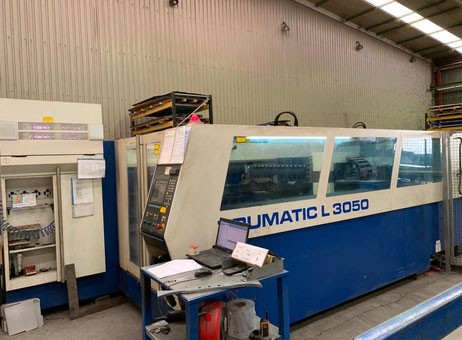

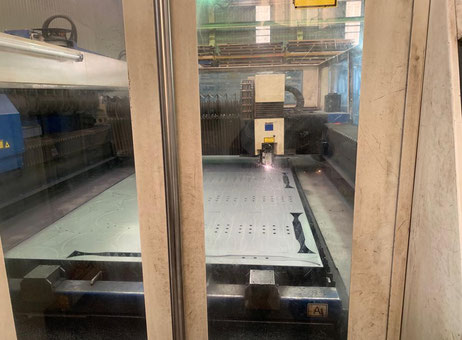

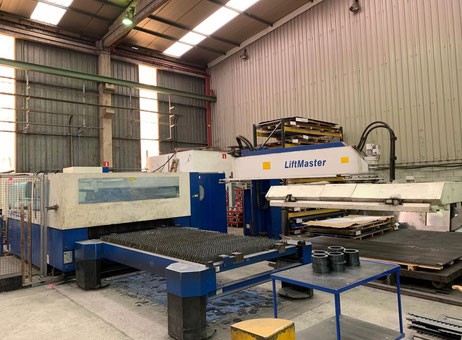

Trumpf 3050 + Liftmaster, 5000 w.
21000 cutting hours
2 tables of 3000×1500
Automatic loading and unloading
Machine with Trumpf maintenance
