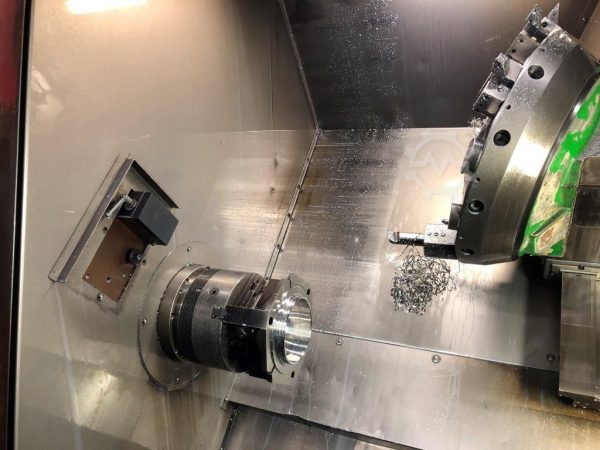

Traub TNA 500 – Year 1995

Learn Price

Description

TRAUB TNA 500
CNC – Turning- and Milling center

turning diameter 460 mm
turning length 1.000 mm
control Mitsubishi / TRAUB TX-8F
swing diameter 680 mm
swing diameter over slide rest 445 mm
Main spindle:
spindle nose DIN 55026 A8
spindle hollow 80 mm ( L=600mm )
chucking diameter 250 – 315 mm
turning speed range – spindle – 2.800 min/-1
power capacity – main spindel 31 kW – 545 Nm
C-Axis 0,001 ° Torque 544 Nm
turret:
toolpositions 12 pos.
tool taper VDI 40 ( Diameter 40 mm )
Shank diameter 25 x 25 mm
travel -x axis 320 mm
travel -z axis 1.070 mm

Driven Tool Stations:
Number of driven toolspositions 12 pos.
power capacity driven tool-stations 6,6 kW 60 Nm

without Tailstock

total power requirement 42 kW
weight of the machine ca. 6,8 t
dimensions of the machine ca. 5,5 x 2,3 x 2,2 m

Chip conveyor including Cooling Pump
tool setting
Signal-Light
hydraulic system
Two Jaw Chuck SMW Diameter 250mm Typ KNC-S250
Turret including Tool Drive
C-axis
live tool holders 2x Z / 2x X
fixed tool-holders
