Description

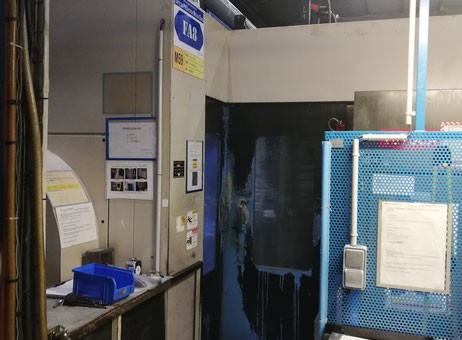

Toyoda FH 80 S – Year 2003
Axis X | 1350 mm |
---|---|
Axis Y | 1150 mm |
Axis Z | 1150 mm |
Type | Horizontal |
Type | Continuous |
CNC | FANUC 15iM |
Table length | 800 mm |
Table width | 8000 mm |
Max. part weight | 1600 kg |
Number of tool pockets | 120 |
Spindle taper | ISO50 |
Max. spindle speed | 6000 rpm |
Spindle motor power | 30 kW |
Number of pallets | 2 |
TOYODA FH80S-5A
Machine specifications: table 800 x 800 (xxy) mm x axis 1350 mm y axis 1150 mm z axis 1150 mm a axis -100 // 17 ° b axis 360 ° spindle speed 0 – 6,000 rpm spindle motor power 30 kw working feeds z and y 0 – 24000 mm / min. Working feeds x 0 – 15000 mm / min. Working feeds a and b 0 – 4000 ° / min. Nc: fanuc 15im 120 tool atc iso50
Pallet change 2 pallets built in 2003
