Description

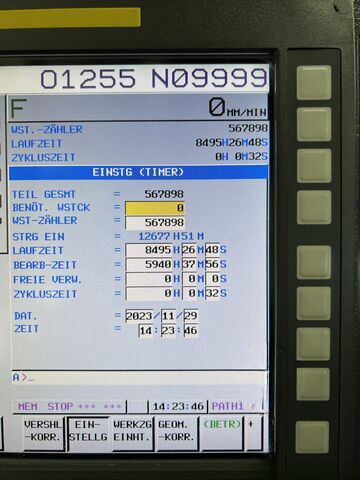

STAR Micronis SR-20 JII type B CNC Swiss Lathe – Year 2018
STAR SR with IEMCA loading magazine
Manufacturer Catalogue Information about Star SR-20JII :
The SR-20JII Type B improves upon the long-serving SR-20J model, offering increased rigidity, accuracy and versatility through a combination of improved engineering and expanded functionality.

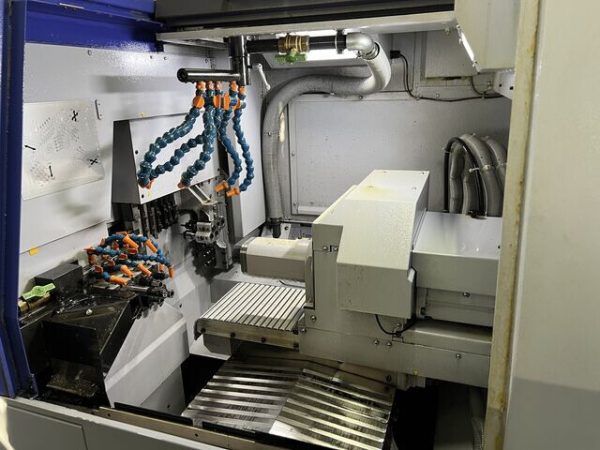

Combining a 6-tool turning platen with a 5-spindle cross drilling unit and an 8-spindle back working tool post, the SR-20JII boasts impressive tooling capacity allowing for a huge range of machining options.
The updated design features dovetail slideways for the X1, Y1, Z2 and Y2 axes improving the machine’s rigidity – ensuring stable, repeatable results even when cutting the most challenging materials.
The sub-spindle speed, power and accuracy have also been increased by adopting a built-in spindle motor offering 10,000 rpm and 3.7Kw.
The SR-20JII Type B represents the latest evolution in 20mm sliding head machining – and the most advanced technology of its type on the market.
Star SR-20JII
BENEFITS
Improved metal removal rates with increased power on driven tools and sub-spindle
Switchable between guide bush and non-guide bush modes
Main and sub spindle speed 10,000 rpm / power 3.7Kw
Reduced cycle times due to more overlapped machining possibilities
Improved rigidity due to dovetail guideway structure
Increased flexibility due to more tooling configurations
Improved ergonomics with large cutting room and headstock “up and over” doors
Increased accuracy due to built-in spindle motors
| MAIN SPINDLE SIDE | |
|---|---|
| NUMBER OF AXES | 8 |
| MAIN SPINDLE (HEADSTOCK) | Z1 / C1 AXIS |
| TOOL POST | X1 / Y1 AXIS |
| MAX. MACHINING DIAMETER | 20 MM / 22.2 MM (OPTION) |
| HEADSTOCK STROKE (SWISS TYPE / NGB MODE) | 205 MM |
| MAIN SPINDLE POWER | 3.7 KW |
| MAIN SPINDLE SPEED | 10,000 RPM |
| MAIN SPINDLE TOOLING | |
| TURNING TOOL | 6 TOOLS @ 12 MM SQ |
| DRILLING ARM SLEEVE HOLDER CAPACITY | 5 X Ø 22 MM SLEEVES (ER16) |
| POWER DRIVEN TOOL (PDT) POSITIONS | 3 + 2 MODULAR STATIONS |
| MAX (PDT) SPEED | 8,000 RPM |
| SUB SPINDLE SIDE | |
|---|---|
| SUB SPINDLE | X2 / Y2 / Z2 / C2 AXIS |
| MAX. CHUCKING DIAMETER | 20 MM / 22.2 MM (OPTION) |
| SUB SPINDLE POWER | 3.7 KW |
| SUB SPINDLE SPEED | 10,000 RPM |
| SUB SPINDLE TOOLING | |
| BACK-WORKING PLATEN POSITIONS | 8 |
| MAX DRILL SPEED CAPACITY | ER16 |
| POWER DRIVEN TOOL (PDT) POSITIONS | 8 (ER16) |
| MAX (PDT) SPEED | 8,000 RPM |
| FMB | BAR FEED DIMENSION A (MM) | ||
|---|---|---|---|
| MICROMAG 08-20 | 3415 (1.6M) | 5015 (3.2M) | 6015 (4.2M) |
| MINIMAG 2-20 | 3415 (1.6M) | 5015 (3.2M) | 6015 (4.2M) |
| TURBO 2-20 | 3215 (2.2M) | 4215 (3.2M) | 5215 (4.2M) |
| TURBO 3-36 | 3320 (2.2M) | 4320 (3.2M) | 5320 (4.2M) |
