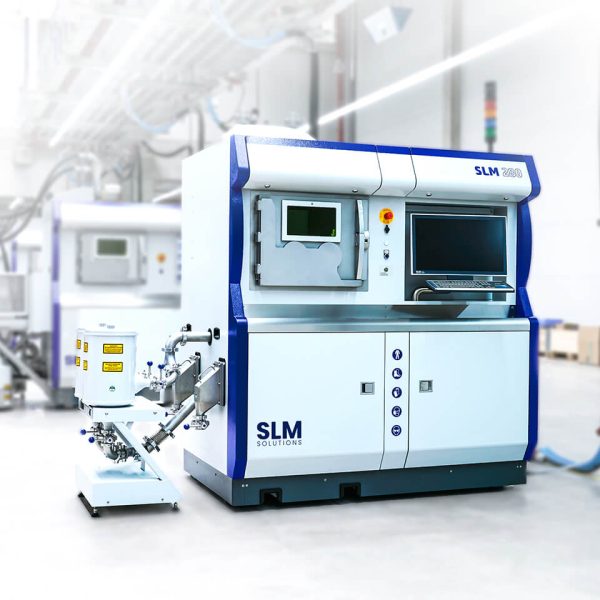

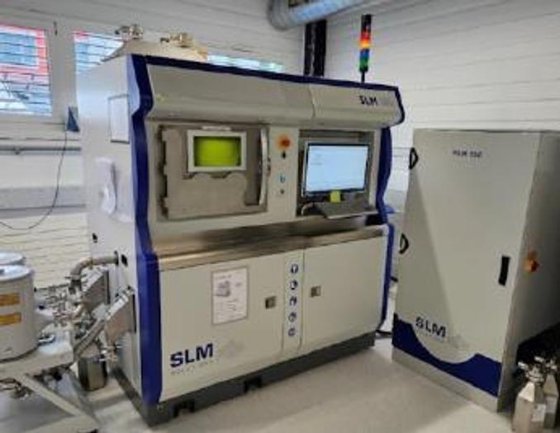

SLM SOLUTIONS SLM 280HL 2.0 Single Metal 3D Printing – Year 2018

Learn Price

Categories: ,

Description

SLM SOLUTIONS SLM 280HL 2.0 Single – Year 2018
Metal 3D printing with multiple lasers and closed-loop powder handling.

Condition:used
Year:2018
Installation:2018
Equipment:HRSH 050 L/W 5kW cooling unit, PSM 100 V3 vibrating screen station, SLM AMC 330 safety vacuum cleaner, BPH 280 handling device
Installation space in mm (x/y/z):280x280x350
Laser power:400W
Build speed:35 cm3/Hour* 35 cm3/Hour*
Practice layer thickness:20-100μm
Min. track width / wall thickness:180µm
Operative beam focus freely selectable:100µm – 700µm
Compressed air requirement:ISO 8573-1, 18l/ bar
Dimensions in mm (w x h x d):1800 x 1900 (2400) x 1000
Weight in kg:approx. 1000
E-connection / consumption:400 Volt 3NPE, 32 A, 50/60Hz, 6 KW/h
Exposure speed:15 m / s
Shielding gas consumption in the process:Ar/N2, 2,5l/min
Flood shielding gas consumption:Ar/N2, 1700l/min
Mass:Approx. 1000KG Approx. 1000KG
Build chamber in mm (x/y/z):280x280x350
Laser power:400/1000 W, YLR fiber laser
Build speed:35 cm3/Hour* 35 cm3/Hour*
Pract. layer thickness:20-100μm
Min. scan line / wall thickness:180µm
Operational beam fokus variable:100µm – 700µm
Scan speed:15 m / s
Inert gas consumption in operation:Ar/N2, 2,5l/min
Inert gas consumption venting:Ar/N2, 1700l/min
Compressed air requirement:ISO 8573-1, 18l/ bar

Weight:Approx. 1000KG

Manufacturer Catalogue Information about
SLM SOLUTIONS SLM®280 2.0 Metal 3D printing Machines :

Metal 3D printing with multiple lasers and closed-loop powder handling. The SLM®280 2.0 is ideal for medium to high volume metal additive manufacturing part production and prototypes.

  • 280 x 280 x 365 mm build envelope
  • Multi-laser (twin)
  • Multi-material

SLM®280 2.0

Ideal for medium to high volume metal part production and prototypes, the robust second generation SLM®280 2.0 selective laser melting system offers a 280 x 280 x 365 mm build envelope and patented multi-beam laser technology with up to two fiber lasers exposing the build field via a 3D scan optic. Multi-laser systems can achieve build rates 80% faster than a single laser, and patented bi-directional powder recoating minimizes manufacturing time by reducing the number of passes required to lay fresh powder during a build.

Outfitted with a standard PSM powder sieve, overflow bottles transfer material between sieve and machine reducing operator contact with loose powder. PSM sieves and powder change kits allow users material flexibility while maintaining powder quality in an inert atmosphere.

Multi-laser Technology

The SLM®280 can be equipped with up to two 700W fiber lasers to accelerate the printing process of many metal additive powders.

Highest Productivity

Patented bi-directional powder recoating helps reduce manufacturing time by depositing a new layer of powder in both directions without having to return to a “home” position.

Material Flexibility

Paired with a Powder Sieving Machine (PSM), the SLM®280 offers material flexibility. Manual sieves allow efficient material changeover for adaptable production while maintaining safety and quality
