Description

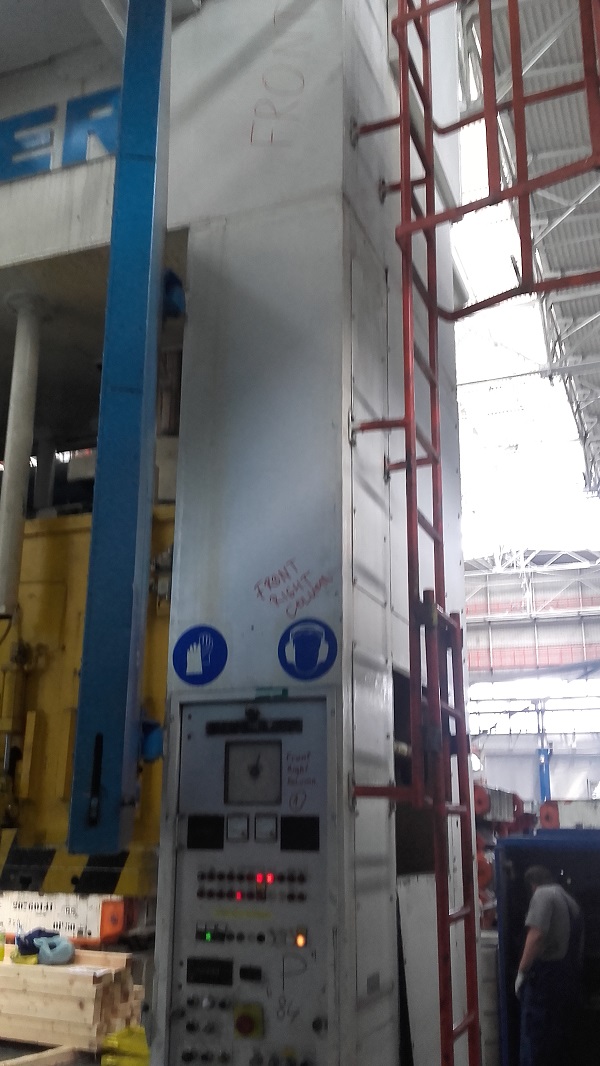

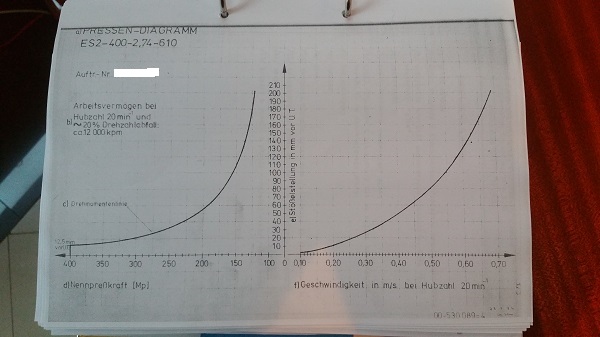

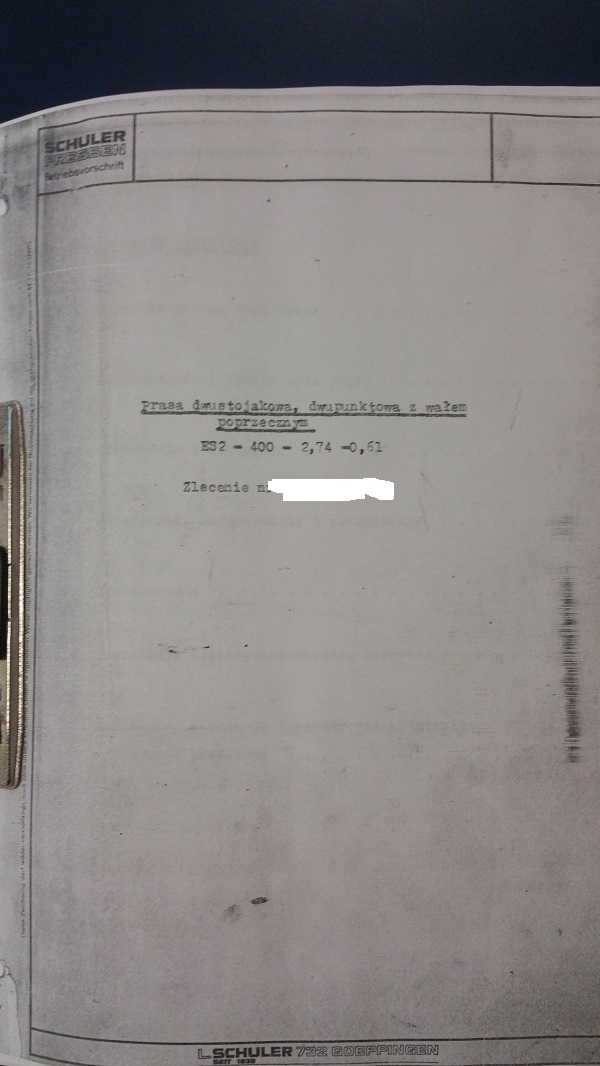

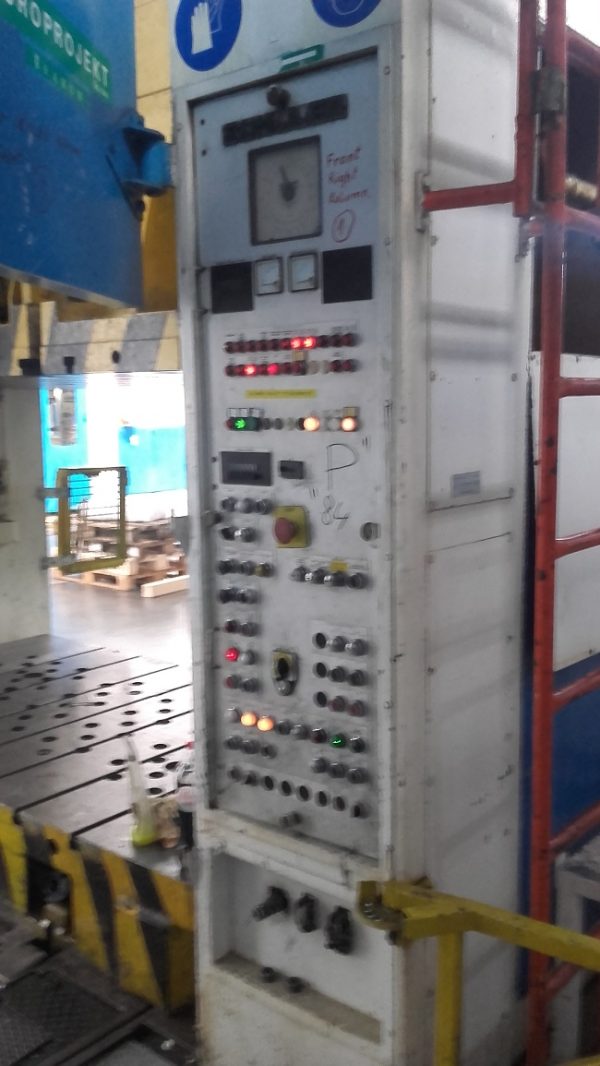

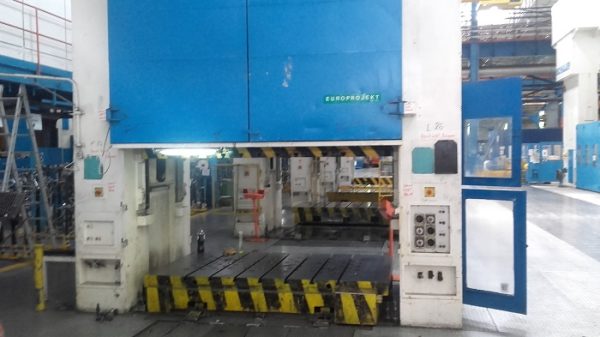

SCHULER ES2 400 T Mechanical Press
| Power in tons | 400 T |
| Table length | 2743 mm |
| Table width | 1524 mm |
| Motor power | 60 kW |
Press Capacity 400 Tons
Rated Tonnage Point 12.5 mm
Distance between the a sliding table and slider 1018 mm
Slide Adjustment 305 mm
Motor power for adjusting the slider 5,5 kW ca. 1000 rpm
Slide Stroke 610 mm
Size of Slider 2743 x 1524 mm
Number of sliding tables 1
Size of Table 2743 x 1524 mm
Table height 400 mm
Number of air cushions in the table 2
Diameter of piston 1000 mm
Piston stroke 203 mm
number of strokes per minute 20
Cushion Capacity 70 Tons x 2 pcs.
Cushion Stroke 203 mm
Main Motor Capacity 60 KW ca. 1500 rpm
Moving Bolster Front Exit
