Description
Turning length | 275 mm |
Turning Ø | 180 mm |
Ø above the bed | 200 mm |
Type of CNC | Siemens 840D |
X-axis | 240 mm |
Z-axis | 738 mm |
CNC Vertical Lathe | |
Spindle bore | 90 mm |
Turning speed | 6500 rpm |
Spindle motor power | 41 kW |
Tailstock | no |
Bar feeder | no |
Scherer Feinbau VDZ120 | |
Length x width x height | 1900.0 × 2200.0 × 2720.0 |
Weight | 7000 kg |
Scherer Feinbau VDZ120 CNC vertical lathes / pick-up lathes
br. vertical pick-up lathe make Scherer Feinbau
Type VDZ120 left and right version with Siemens 840DTECHNICAL SPECIFICATIONS
Swing diameter 200 mm
Turning diameter 180 mm
Slide path Z-axis (vertical) 240 mm
X-axis slide travel (horizontal) 738 mm
Diameter in the front bearing 90 mm
Spindle head with short taper DIN55026 A5
Rated power 100%ED 29.3 KW
Nominal torque 200 Nm
Rated speed 1400 rpm
Maximum speed 6500 rpm
Travel speed Z-axis max. 30 m/min
Travel speed X-axis max. 60 m/min
Rated voltage 400 volts, 50 Hz
Back-up fuse 80 A
Total power requirement 41KW
dimensions + weight
LxWxH 1.90 x 2.2 x 2.72 m
Weight 7000kg
EQUIPMENT and ACCESSORIES
Hollow shaft motor with circulating oil cooling in the headstock
chip conveyor
coolant device
Pallet belt on the left

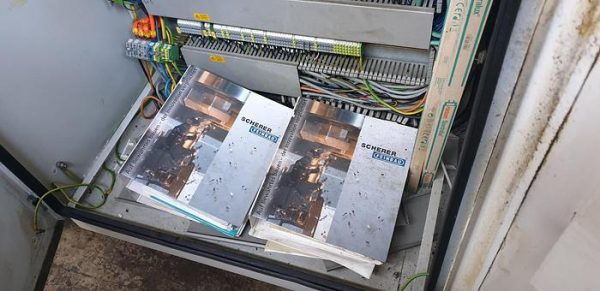

control cabinet cooling unit
