Açıklama
Metal length | 6000 mm |
---|---|
Power | 5000 W |
Metal width | 2000 mm |
Type | Fiber |
Option to cut tubes | yes |
Max thickness | 25 mm |
CNC | yes |
CNC type | CYPCUT |
Travel X | 6200 mm |
Travel Y | 3500 mm |
Travel Z | 200 mm |
Max weight of the workpiece | 2500 kg |
Length x width x height | 200000.0 × 5000.0 × 2600.0 |
Weight | 22000 kg |
Built-in tube cutting

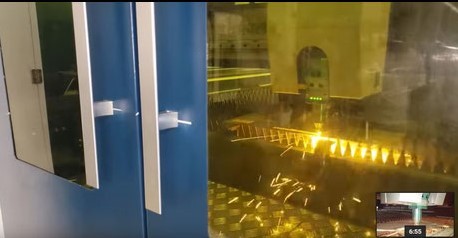

Fiber laser 6000 x 2000 with double loading + unloading table
5000 Watt IPG source
Laser head Cooling Ciller

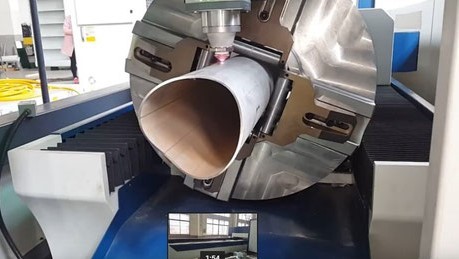

Spindle for cutting tubes Maximum tube diameter 220.
Cut rectangular, square, circular tubes, corner irons etc. etc.
Nestig software on the machine and 2/3 office licenses
