Reishauer RZ 150 CNC Gear Grinding Machine – Year 2007

Contact us for price

Categories: , ,

Description

Reishauer RZ 150 CNC Gear Grinding Machine – Year 2007
Max wheel Ø 150 mm
Max. gear width 100 mm
Max. spindle speed 5200 rpm
Max. workpiece weight 2 kg
Length x width x height 4800.0 × 3500.0 × 3200.0mm
Weight 8500 kg
Measurements width: 3500
Measurements depth: 4800
Measurements height: 3200
Machine weight: 8500
Spindle speed range: 0 – 5200
Workpiece weight: 2 kg

Wheel diameter: 150 mm
Max wheel width: 100 mm
Module: 1 – 3
Number of teeth: 5 – 150
Max helix angle: +- 40 degrees
Top circle diameter: 10 – 145 mm
Base circle diameter: 10 – 145 mm
Grinding stroke: 100 mm
Clamping length: 350 mm

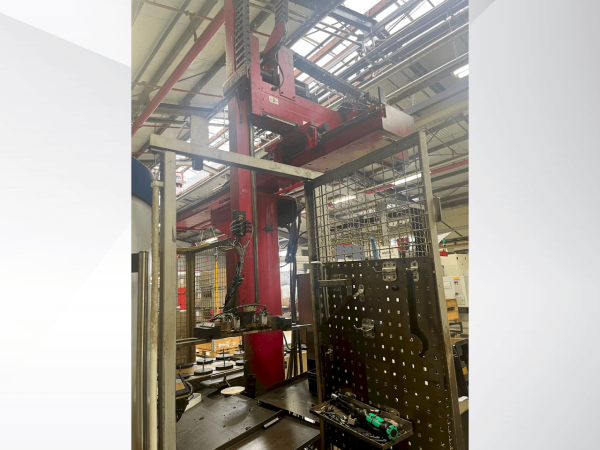

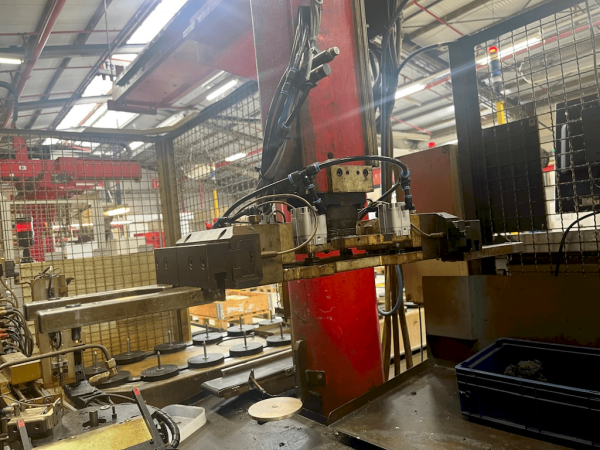

Rice robot handlingMachine still under power

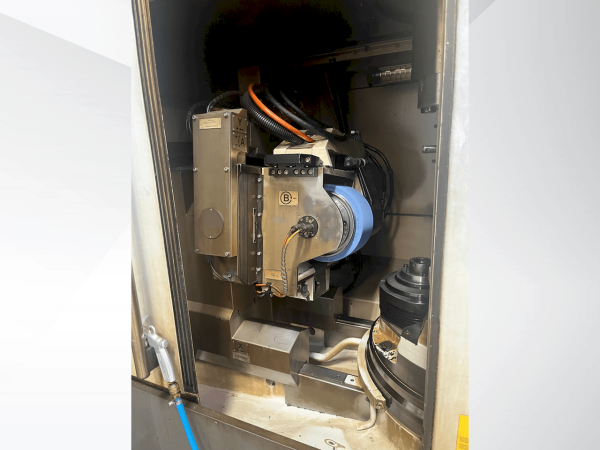

Reishauer RZ 150 grinding machine was manufactured in 2007.
It features a maximum wheel diameter of 150 mm,
wheel width of 100 mm, and can handle workpieces up to 2 kg.
The machine offers a grinding stroke of 100 mm and a clamping length up to 350 mm.
It supports spindle speeds from 0 to 5200 1/min and includes Rice robot handling.
