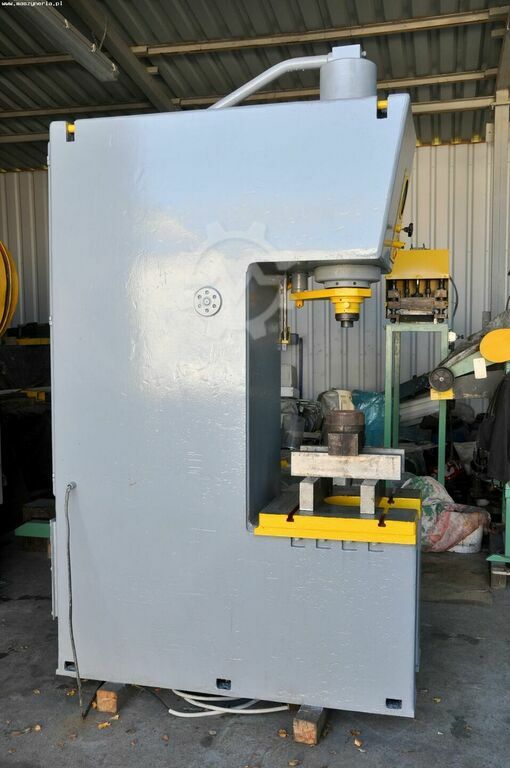

The reach hydraulic press PH-WN 40 was produced in the 1980s by the Polish factory Ponar-Żywiec.
Technical data :
maximum pressure of the press: 40 tons
table dimensions: 600 x 650 mm
width of the through-cut in the table: 200 mm
press projection: 350 mm
pressing speed: 0.4 m / min
maximum piston lifting speed: 9.9 m / min
maximum piston lowering speed: 4.6 m / min
maximum upward movement of the piston: 20 tons
piston diameter: 165/120 mm
maximum piston stroke: 550 mm
low stage pressure: 2 Mpa
high stage pressure: 20 Mpa
low stage efficiency: 9 dm3 / min.
high stage efficiency: 100 dm3 / min.
pump: oil pump PŁN-2
pump drive motor power: 5.5 kW
dimensions of the press (width x length x height): 725 x 1527 x 2600 mm
weight: 2.4 tons
