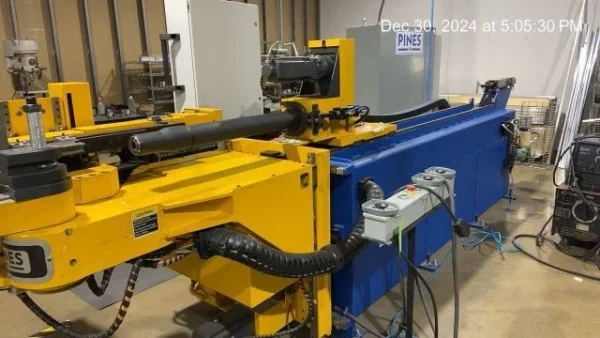

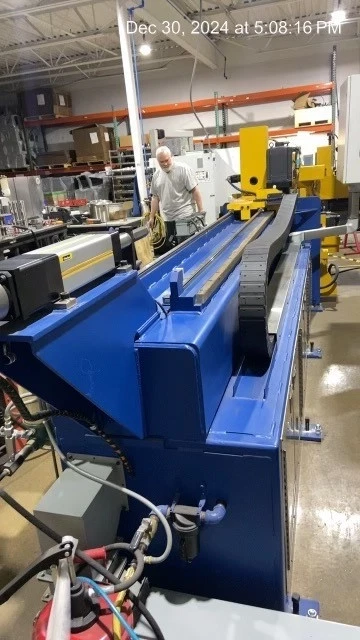

• Pines e40 Electric 10-Axis CNC Rotary Bender – Year 2021

    Contact us for price

    Categories: ,

    Description

    Pines e40 Electric 10-Axis CNC Rotary Bender – Year 2021
    SPECIFICATIONS:
    Maximum radius – 6”
    Minimum radius to diameter ratio – 1D
    Programmable motion – 10-Axis
    Maximum bend angle – 190º
    Bend arm repeatability – +/- 0.05º
    Carriage repeatability – +/- .005”
    Bend arm forward speed – 25 RPM
    Standard tube length over mandrel – 13’
    B-Axis travel: 360º – Speed: 60 RPM
    Y-Axis travel: 6’ – Speed: 2000 IPM
    Working height ~ 48.5”
    Voltage – 480 3 Phase 60 Hz. 50 amp circuit required (220/3/60 @ 80 amps also available)

    CAPACITIES:
    Round tubing, mild steel Y.P. to 40,000 psi – 1-1/2” x .109”
    Round tubing, non-ferrous Y.P. to 25,000 psi – 1-5/8” x .187”
    Round tubing, Stainless steel Y.P. to 60,000 psi – 1-3/8” x .065
    Steel pipe, schedule 80 – 1
    Square tubing, mild steel – 1-1/8“ x .125

    MACHINE CONTROL:

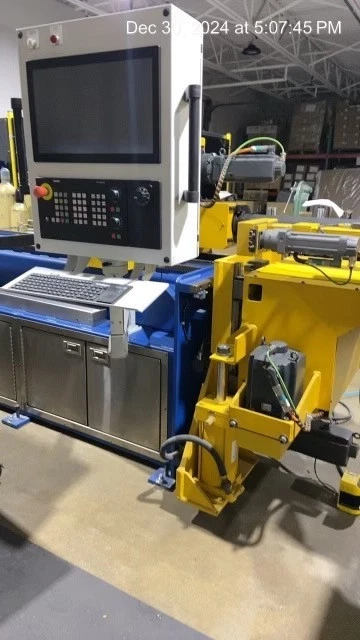

    Siemens 840D 10-Axis CNC Control
    SIMATIC IPC 477E. 22″ Multitouch neutral.
    Windows 10 Emb loaded with Sinumerik Operate and WinCC RT software
    Safety Integrated motion control system with reserve IO
    Single Block operation for bend recipe troubleshooting
    Machine operation animation
    Keyboard with Touch Mouse
    Advanced Self Diagnostics
    Detailed Error Messages with Troubleshooting Procedures
    Built in Siemens CNC Help manuals with descriptions
    Enhanced Error Reporting and Logging
    Configurable Levels of Operation
    Displays and Rotates Parts In 3D
    Edit/Display Part Programs in XYZ, YBC, Absolute modes
    Edit/Display Parts Programs in Millimeter, Inches or Feet and Inches
    Bend in Open Collet or Closed Collet Mode
    Bend recipes can be stored Locally or in a Remote PC location through LAN
    Automatic Part Program Backups
    Programming from CAD source (Optional)
    Production Monitoring

    STANDARD EQUIPMENT:
    Counterclockwise Rotation
    Servo Controlled Swing Arm
    Hitch Feed Capable
    PDI Zone Recapture
    In-Line Programable Pressure Die Assist – With Z-Axis Shift
    Clamp Die Holder

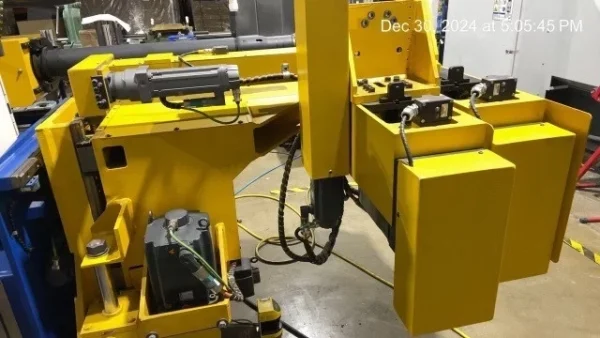

    Electric Swing & Stationary Arms – Quick Change Programmable Pressure Tooling
    Wiper Die Holder

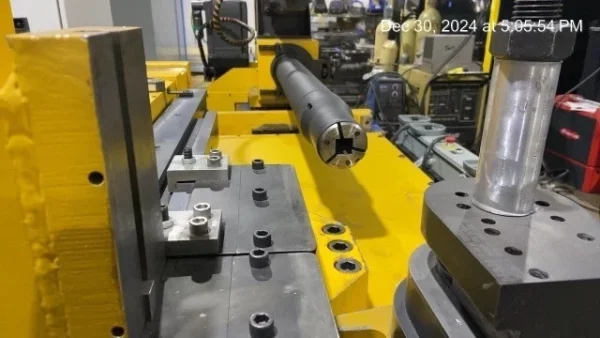

    Programable Mandrel Extractor – Tangent Position and Extract Length
    Heavy Duty Automatic Mandrel Lubricator
    Laser Safety Scanner
    Dual Palm Remote Operator Control
    Roll Forming (Calendaring) Capability on Top Stack (Additional tooling required)
    Self-Diagnostic Program
    Carriage Push for Shorter Grip Lengths
    Spring Back Compensation
    Servo Drives Power to 10 Axes. (Y, B, C, PDA, PDA Z, Mandrel, Nose X, Nose Z,
    Clamp, and Pressure Die)
