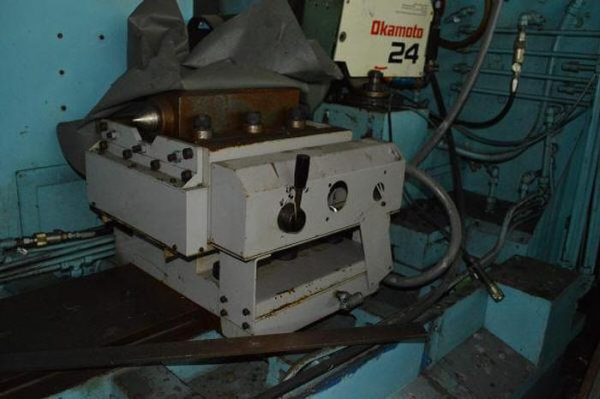

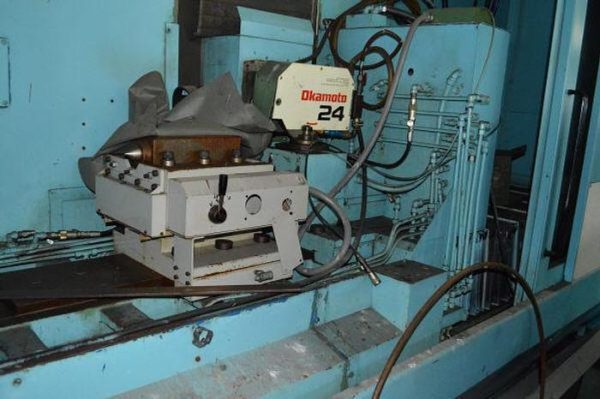

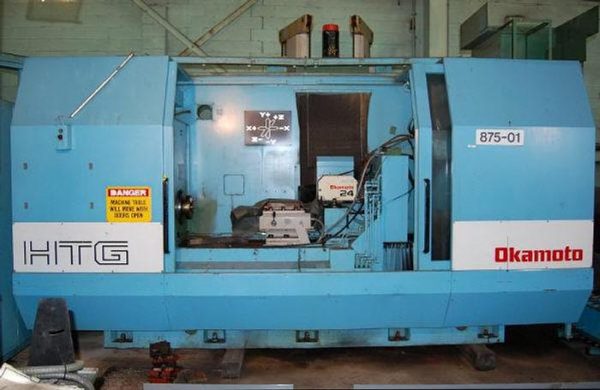

OKAMOTO HTG-24 – CNC Gear Grinder

Learn Price

Categories: ,

Description

OKAMOTO HTG-24
CNC STRAIGHT GEAR & SPLINE GRINDER 4-AXIS

Model HTG-24
Condition Used
OKAMOTO HTG-24 CNC STRAIGHT GEAR & SPLINE GRINDER 4-AXIS
CNC  Gear Grinding Machine
External gear diameter, maximum 24″
External gear root circle dia, minimum 3/4″
Teeth width, maximum 20″
Swing diameter, maximum 24″
Center distance, maximum 21.65″
Table longitudinal travel, x-axis 45″
Wheelhead vertical travel, y-axis 20″
Column cross travel, z-axis 10″
Rapid traverse rate, x-axis 590 IPM
Rapid traverse rate, y-axis 36 IPM
Rapid traverse rate, z-axis 72 IPM
Index travel rate, a-axis 5 RPM
Number of teeth, range 4 TO 600
Diametral pitch, range 1.95 TO 31.75 DP
Grinding wheel diameter, maximum 11.8″
Grinding wheel width, maximum 2″
Spindle motor, horsepower 10 HP

HTG-24 OKAMOTO 4-AXIS CNC STRAIGHT GEAR &
SPLINE GRINDER
Brand OKAMOTO
MODEL HTG-24

EQUIPPED WITH:
FANUC OM CNC CONTROL W/SPINDLE LOAD METER
INTERNAL GEAR OR STEP GEAR W/SMALL RELIEF ATTACHMENT
HEAVY-DUTY HIGH PRESSURE COOLANT/FILTRATION SYSTEM
HYDRAULIC SYSTEM W/ OILMATIC AUTOMATIC OIL COOLER
COMPLETE CONTROL CABINET W/PENDANT CONTROL

NOTE: MACHINE IS USED FOR GRINDING SPUR GEARS OR
SIMILAR WORKS WITH HIGH PRECISION AND PERFORMANCE.
