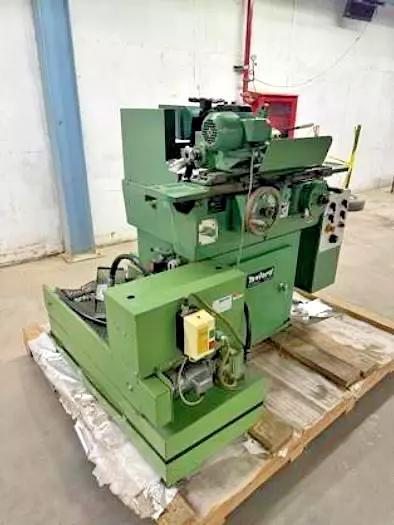

Myford MG12-ME Precision Cylindrical Grinder with BEDATEC 10BTL11 filter system – Year 1991
The Myford MG12-ME is a precision cylindrical grinder renowned for its high accuracy and reliability in industrial applications. Designed for tool rooms and production environments, it offers exceptional performance for the needs of new and reconditioned machinery.
Key Specifications:
• Swing over table: 5 inches
• Distance between centers: 12 inches
• Maximum grinding diameter: 3 inches
• Table travel: 13.75 inches
• Table rotary: ±10 degrees
• Grinding wheel size: 12” diameter x 1.5” width x 5” diameter
• Wheel head motor power: 3 HP
• Workhead speed range: 50-900 RPM
• Approximate dimensions: 58” L x 55” W x 60” H
• Approximate weight: 2,226 lbs
Additional Features:

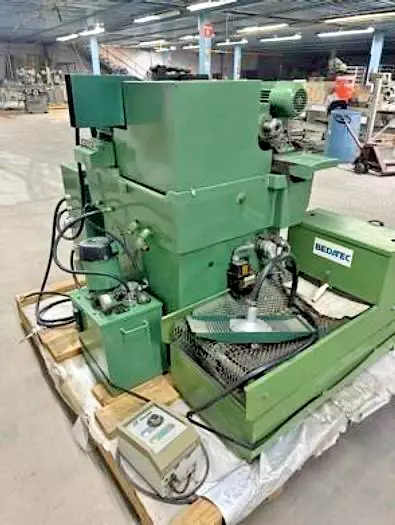

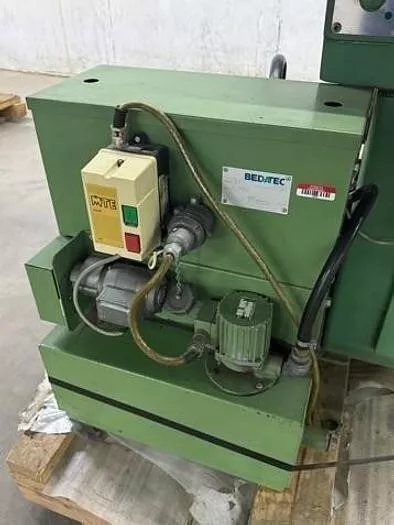

• BEDATEC 10BTL11 filter system: Improves oil and coolant filtration, ensuring cleaner operation and longer machine life.

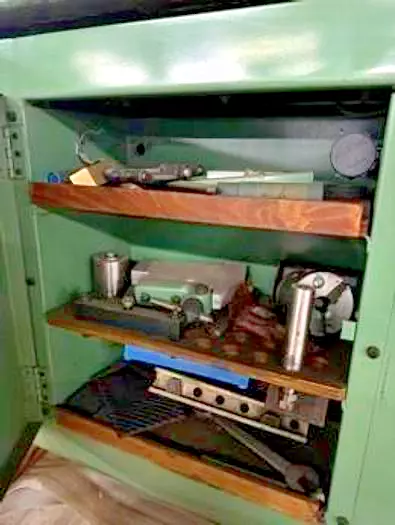

• Tailstock and dressing attachment: Included for versatile grinding operations.
• Drill chuck and collet set: Facilitates precise workholding.
• 4-jaw chuck: Provides additional workholding options.
