Description
| MITUTOYO CRYSTA-Apex S 776 | coordinate measuring machine |
| Length x width x height | 1470.0 × 1700.0 × 2730.0 |
| Weight | 1675 kg |

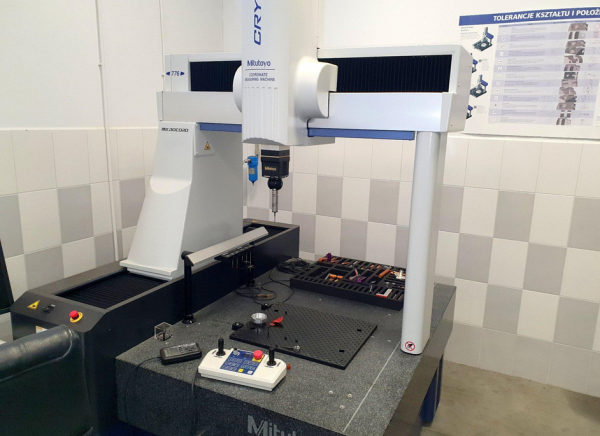

MITUTOYO CRYSTA-Apex S 776 coordinate measuring machine, manufactured in Japan in 2017, is designed to perform extremely accurate measurements of details using the contact or non-contact method. The stable structure of the machine, high-quality components and high measurement speed, up to 8 mm / s, guarantee the best results of the measured elements.
The CMM (Coordinate Measuring Machine) has a granite work table with dimensions (L x W) 860 x 1420 mm, on which objects weighing a maximum of 800 kg are placed. The mounted RENISHAW SP25M probe takes the dimensions of the measured detail and presents them as a set of coordinates of points, making it possible to perform measurements on objects with very complex shapes.
The CRT AS 776 measuring machine is offered with extensive equipment, which includes, among others RENISHAW FCR 25 magazine with probes and accessories and MCOSMOS V4 software installed, making it easy to perform all measuring tasks with the highest speed, ease and reliability. The total weight of the machine is 1675 kg.
Technical parameters of the MITUTOYO CRYSTA-Apex S 776 measuring device
– measuring range in the X / Y / Z axes: 700/700/600 mm
– maximum acceleration for each axis: 1,333 mm / s2
– maximum measurement speed: 8 mm / s
– measurement resolution: 0.1 µm
– dimensions of the working table (length x width): 860 x 1420 mm
– maximum permissible length measurement error MPEE0: 1.7 + 3 L / 1000 µm
– measurement error of the shape of a single MPEPFTU stylus: 1.7 µm
– maximum permissible measuring error of MPETHP scanning: 2.3 µm (50 s)
– travel speed (driving mode): 0-80 mm / s
– travel speed (slow mode): 0-3mm / s
– travel speed (measurement mode): 0.05mm / s
– speed of travels (CNC mode): 8-300 mm / s
– maximum workpiece weight: 800 kg
– maximum height of the detail: 800 mm
– air pressure: 0.4 MPa
– air consumption: 60 l / min
– dimensions (L x W x H): 1470 x 1700 x 2730 mm
– total weight of the CRYSTA-Apex S 776 machine: 1675 kg
Equipment of the measuring machine MITUTOYO CRYSTA-Apex S 776
– measuring probe: RENISHAW SP25M
– software: MCOSMOS V4
– the magazine for the automatic replacement of the probe stylus systems: RENISHAW FCR 25
– setting rings
– measuring heads for inside diameter gauges
– micrometric depth gauges
– electronic calipers
– micrometer support
– set of digital micrometers
– granite work table
– desktop computer: DELL Precision T 3620
– monitor: DELL (2 pcs.)
– printer
