Description

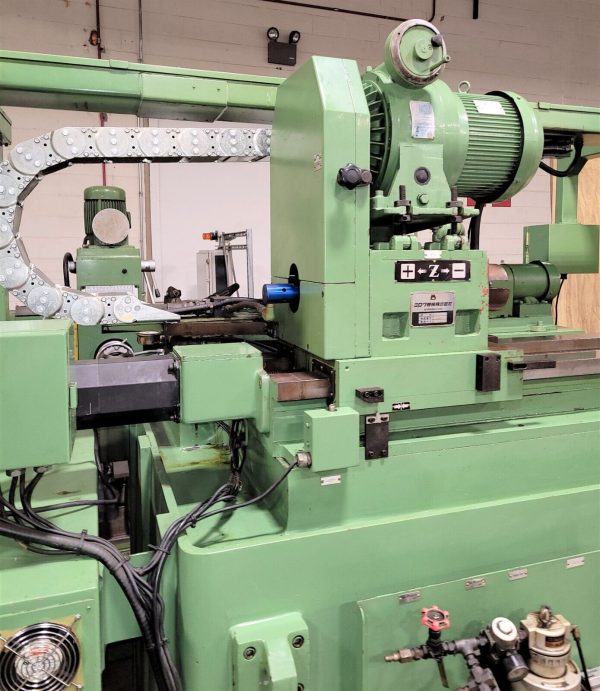

Miroku MEG-1000CNC Knee Type Gun Drilling Machine – Year 1993
Machine SPECIFICATIONS
| Miroku MEG-1000CNC | Knee Type Gun Drilling Machine |
|---|---|
| Hole Diameter | 5mm – 24mm (.19” – 1”) |
| Max. Hole Depth | 1,000mm (39.3”) |
| Spindle Speed (Infinitely Variable) | 800 rpm – 7,200 rpm |
| Cutting Feed Range | 0 – 500mm/min. (0 – 19.6”/min.) |
| Rapid Traverse | 5,000mm/min. (196”/min,) |
| Table Size | 1,000mm x 1,500mm (39.3” x 56”) |
| Vertical Stroke | 480mm (18.9”) |
| Cross Stroke | 780mm (30.7”) |
| Loading Capacity | 2,000 kgs (4,410 lbs.) |
| Coolant Capacity | Main Tank: 580 L (225 Gal.) / Sub Tank: 350 L (92 Gal.) |
| High Pressure Coolant Pump | 105kg/cm2 x 54 L (1,500 psi) |
| Spindle Motor | 2.2kw (3 HP) |
| X-Axis | 0.9kw (1.2 HP) |
| Y-Axis | 2.8kw (3.75 HP) |
| Z-Axis | 0.9kw (1.25 HP) |
| High-Pressure Pump | 5.5kw (7.4 HP) |
| Cascade Pump | 0.75kw |
| Voltage | 460/480V 60Hz |
| Floor Space | 6,270mm x 2,800 mm (247” x 110”) |
| Machine Weight | 9,000kgs (20,000 Lbs.) |
| EQUIPPED WITH: Miroku Fanuc 18M CNC Controls for Positioning and Drilling Operations. Operators Pendant with Full CRT and Keyboard. Remote MPG. 3-Axis Positioning. 39” x 56” T-Slotted Table on Adjustable Height Knee. Variable Speed Spindle Drive. (2) Whip Guides. Chip Box. Coolant System. Chip Conveyor. Assorted Bushings and Gizmos.The Mireku can be inspected under power on our floor. |
|
