Description

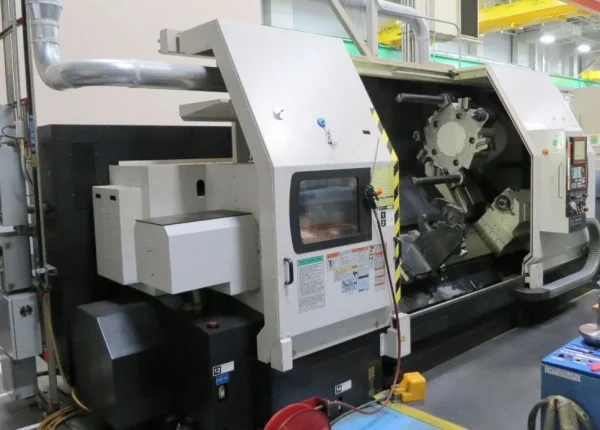

Mazak Slant Turn 50NR CNC Heavy-Duty Lathe – Year 2008
Brand: MAZAK
Model: SLANT TURN 50NR
Year: 2008
2008 Mazak Slant Turn 50NR CNC Lathe #7671
Specifications
X-Travel: 25.00″
Z-Travel: 80.00″
Distance Between Centers: 89″
Max Swing Over Bed: 22.05″
Max Turning / Cutting Length: 80.00″
Max Cutting / Turning Diameter: 32.00″
Spindle

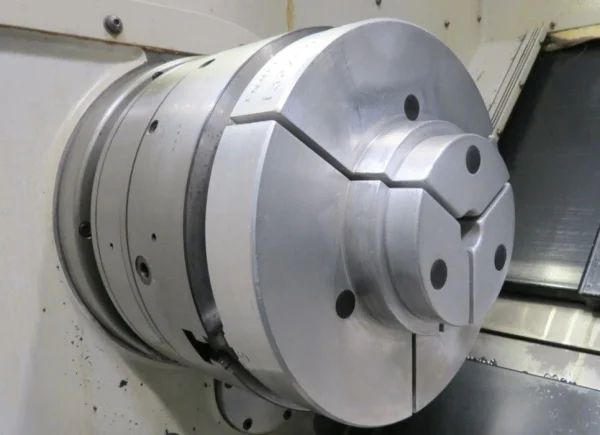

Chuck Size: 12.0″
Chuck Type: Manual
Chuck Description: 3-Jaw Chuck
Spindle Bore: 10.80″
Spindle Speed: 1,000 RPM
Spindle Motor: 50 HP

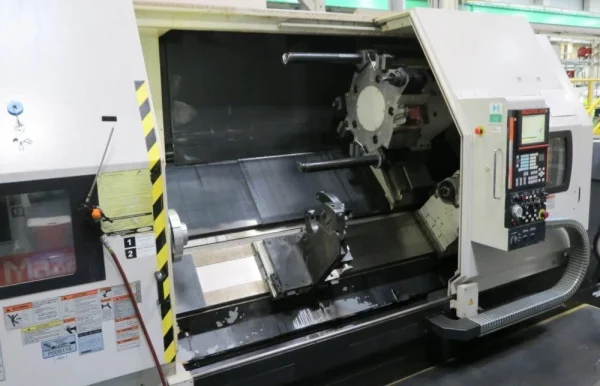

Turret
Single Turret: Equipped With
Tool Positions: 15
Turret Options: Turret Type: Vertical Drum
Control

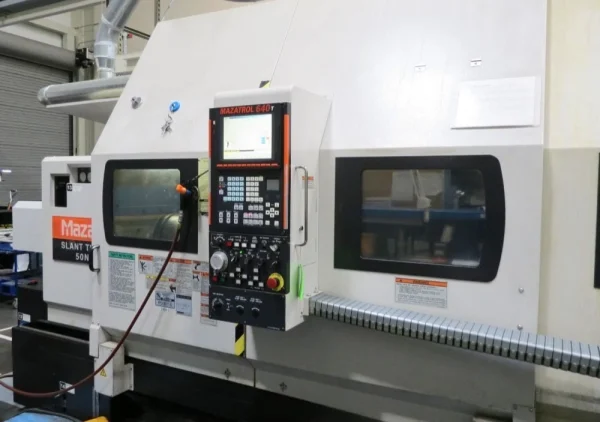

Control Make/Model: Mazatrol 640T CNC Control
Tailstock / Steadyrest
Tailstock: Equipped With
Steadyrest Type: Hydraulic
Options
Machine Options: Mist Collector
Additional Machine Specs:
Workpiece Diameter: 16.54″ (standard)
Workpiece Length: 79.13″ (max.)
Bed Configuration: 45 deg. Slant Type
Tsubakimoto Mayfran Chip Conveyor
Donaldson Torit WSO 25-1 Mist Collector
Foot Control
Chip Removal: Chip Conveyor
The 2008 Mazak Slant Turn 50NR CNC Lathe is a robust, large-capacity turning center engineered for demanding industrial applications. With a maximum swing of 31.69″ over the carriage wing and a generous 89.25″ between centers, it’s ideal for machining long, heavy components. Powered by a 50 HP spindle motor (30-minute rating), the lathe offers a workpiece diameter capacity of 16.54″ and a maximum machining length of 79.13″, giving it the strength and range to handle substantial turning jobs with precision.
Equipped with Mazatrol 640T CNC control, the machine enables intuitive programming and seamless operation. Its vertical drum turret holds 15 tools (10 outside, 5 inside), offering versatile tooling setups for a variety of part features. The hydraulic tailstock, featuring a 74.80″ stroke and MT No. 5 spindle center, ensures reliable part support throughout machining. With X-axis travel of 14.76″ and Z-axis travel of 82.09″, the 50NR provides ample stroke for complex and lengthy parts.
Additional features include a 12″ 3-jaw chuck, Tsubakimoto Mayfran chip conveyor, Donaldson Torit WSO 25-1 mist collector, and foot controls for hands-free operation. Operating on 480V 3-phase power, this machine is well-equipped for continuous production environments. Whether you’re in energy, aerospace, or heavy equipment industries, the Mazak Slant Turn 50NR combines power, control, and durability to meet the challenges of large-scale, precision turning.
