Description

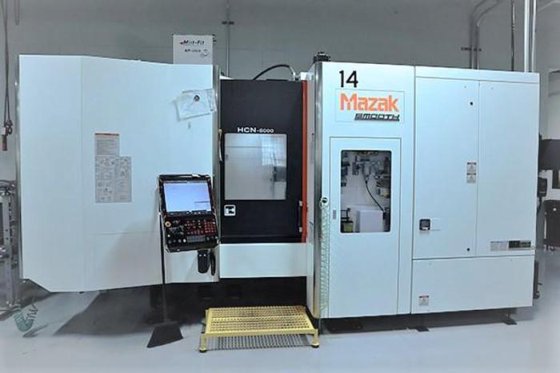

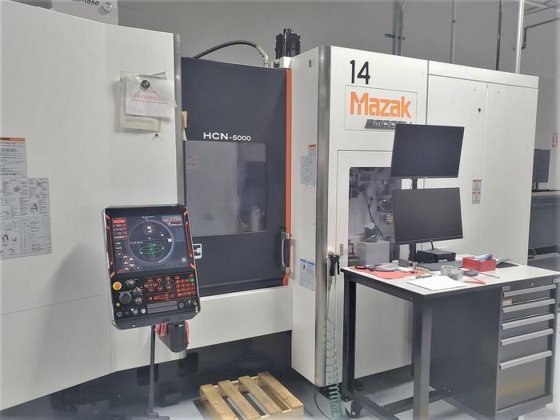

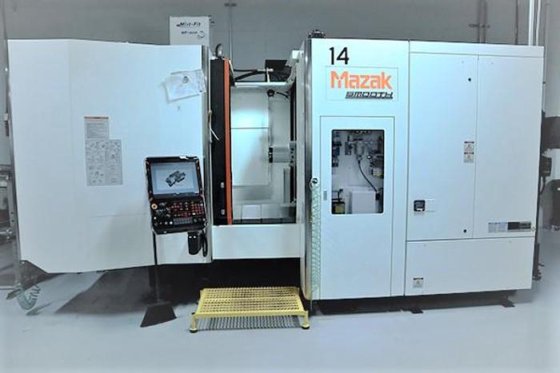

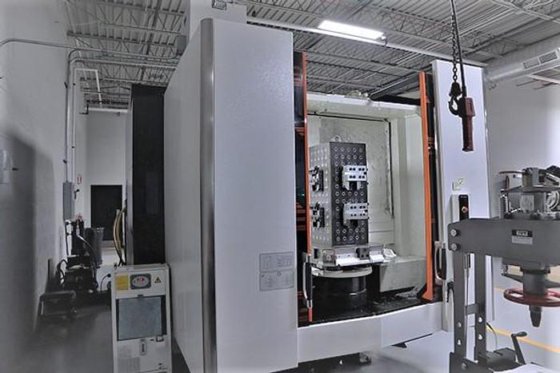

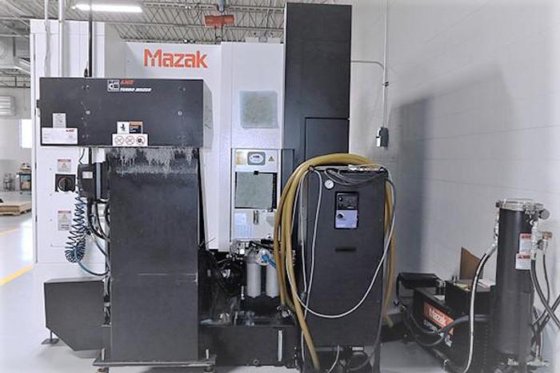

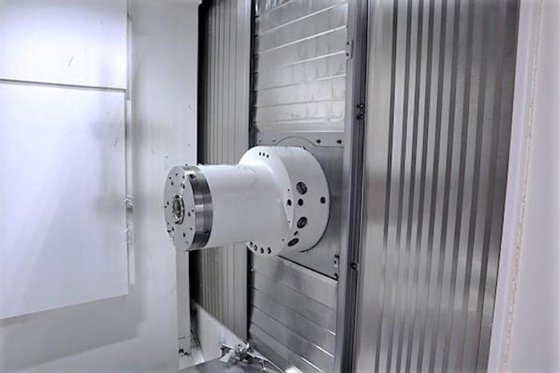

Mazak Nexus HCN 5000E – Year 2019
CNC Horizontal Machining Center with 2 Pallet Changer System
Condition:used
Year:2019
Control:Mazatrol Smooth G Control

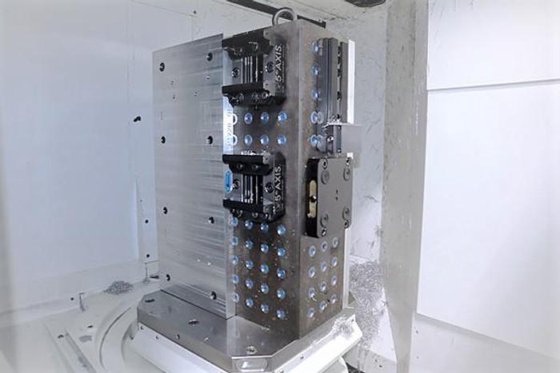

Pallet size / number of pallets:19.7″ x 19.7″ / 2 Pallets
Table indexing:0.001 Degree NC Rotary Table 360,000 Positions
Maximum table load:1,543 lbs.
Maximum workpiece diameter / height:31.5″ x 39.37″
Distance spindle center to table top:2.76″ – 34.25″
Distance spindle nose to table top:3.94″ – 32.68″
X-axis travel:28.74″
Y-axis travel:28.74″
Z-axis travel:31.50″
Spindle taper:CAT #40 – Big Plus
Spindle speeds:14,000 RPM
Spindle motor:40 HP

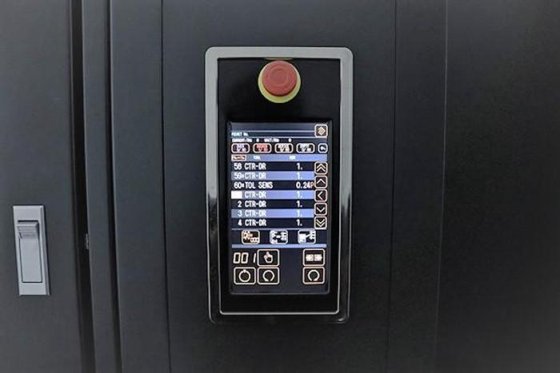

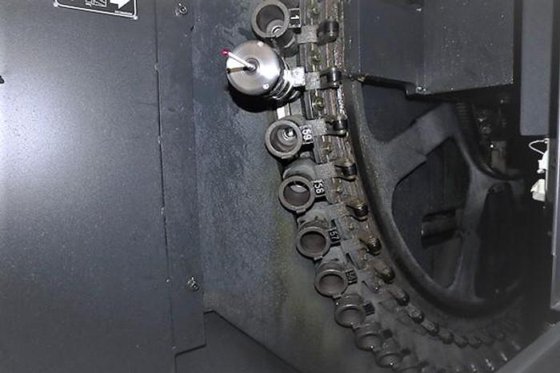

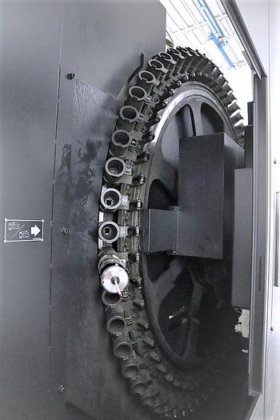

Number of tool positions:60 Station Tool Changer
Maximum tool diameter / length / weight:6.69″ / 20.08″ / 26 lbs.
Tool change time chip to chip:2.6 seconds
Rapid traverse rates:2,362 IPM
Machine dimensions:194.02″ x 96.22″ x 110.8″
Machine weight:26,411 lbs.

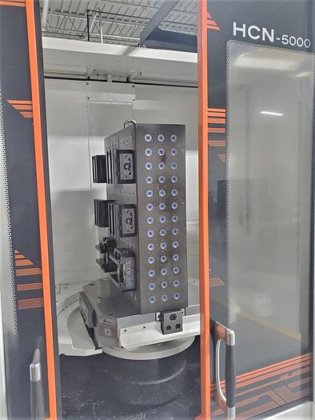

2 Pallet Changer System
.001 Degree Rotary Table – 360,000 Positions

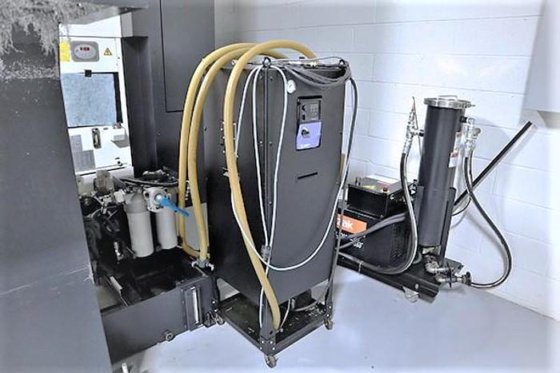

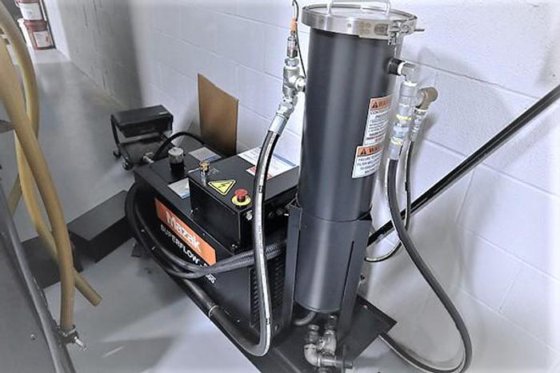

1000 PSI Mazak Super Flow S8 Coolant Through Spindle
Automatic Tool Length Measurement Probe
Renishaw OMP60M Part Probe
Chip Conveyor

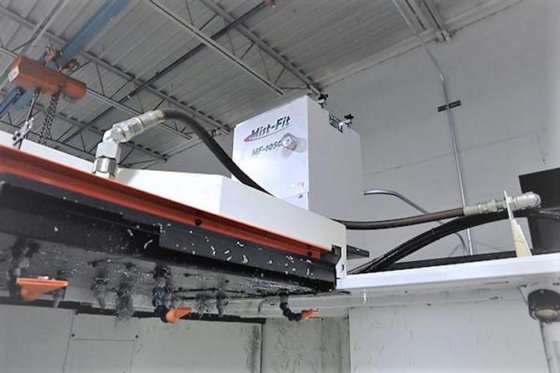

Mist Collector
Workpiece Air Blast
Additional Work Light
Upgraded High Performance Package
Niagara Coolant
Rigid Tapping
Remote Jog Handle
EIA/ISO Input Function
RS-232 C Port for DNC Interface
PCMCIA Interface 2 Slots
3.5″ Floppy Disk Drive
Network Interface for LAN
Backround Tool Path Check
Auto Power Off
User Macro
Adaptive Feedrate Control

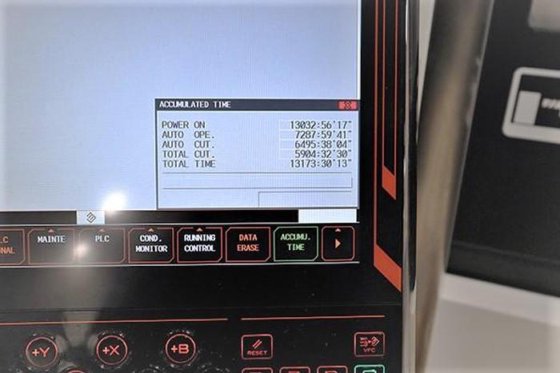

Automatic Operation Hour 7,287
Total Cutting Hours 5,904
