Description

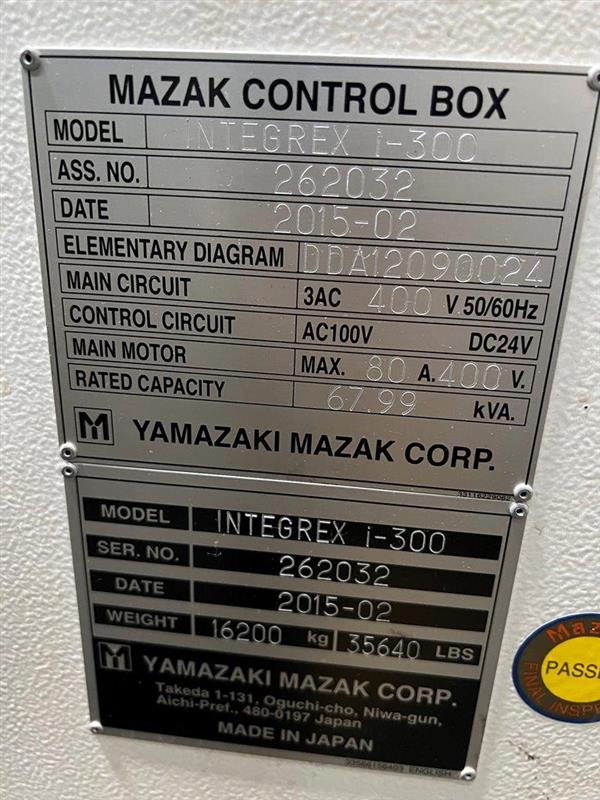

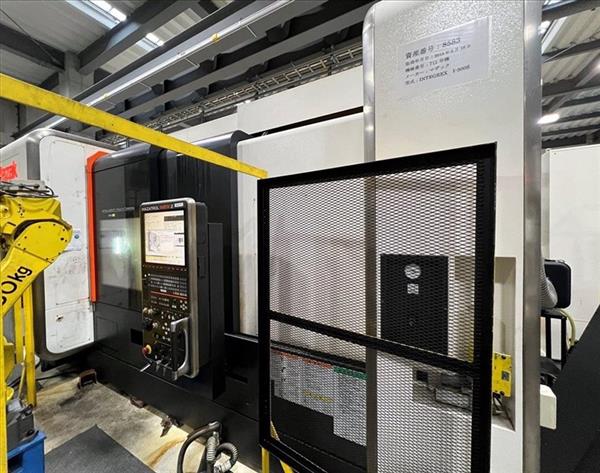

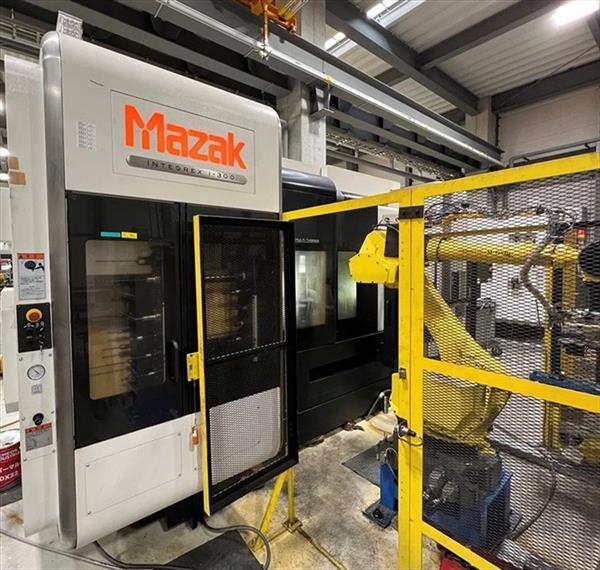

MAZAK INTEGREX I-300/1500 MultiTasking Turn-Mill Year 2015
Swing Over Bed: 25.9″
Turning Diameter: 25.9″
Turning Length: 59.8
Distance Between Centers: 61.48
Chuck Size: 12″
Spindle Nose: A2-8
Spindle Bore Diameter: 3.59″
Bar Capacity: 3.15″
Spindle Speed: 4000 RPM
Spindle Power: 40 hp
B-Axis Head Indexing: +- 120°
B-Axis Milling Spindle Speed: 12,000 RPM
B-Axis Milling Spindle Taper: CAPTO C6
B-Axis Milling Spindle Power: 30 hp
ATC for Milling Spindle: 72 ATC
Tool Diameter: 3.54″ , 4.92″
Tool Length: 15.7″
Tool Weight: 26.46 lbs
X-Axis Travel X1, X2, X3: 24.21″
Z-Axis Travel Z1, Z2, Z3: 62.4″
Y-Axis Travel Y1, Y2, Y3: 9.84″
C-Axis Indexing: .0001°
Rapid Traverse Rates X1, X2, X3: 1969 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1969 IPM
Rapid Traverse Rates Y1, Y2, Y3: 1575 IPM
Tailstock Taper: MT 5
Tailstock Travel: 57.48″
Equipped With:

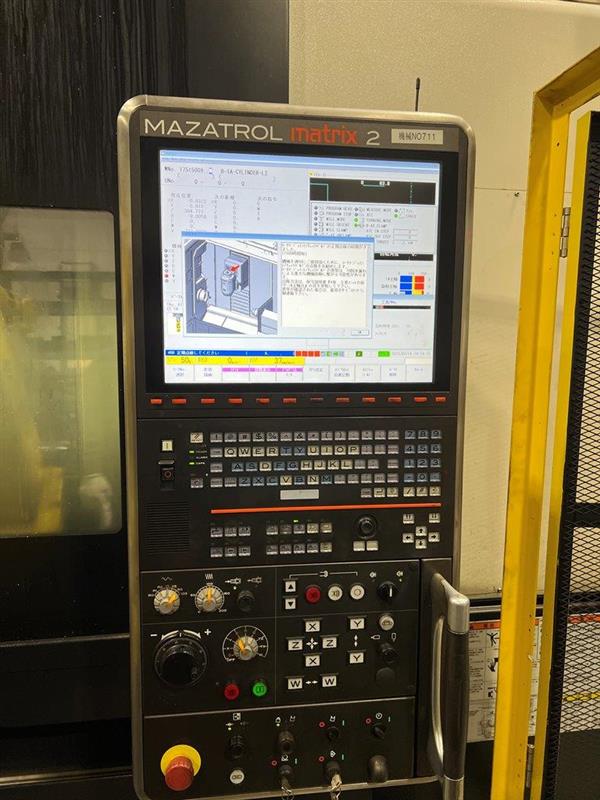

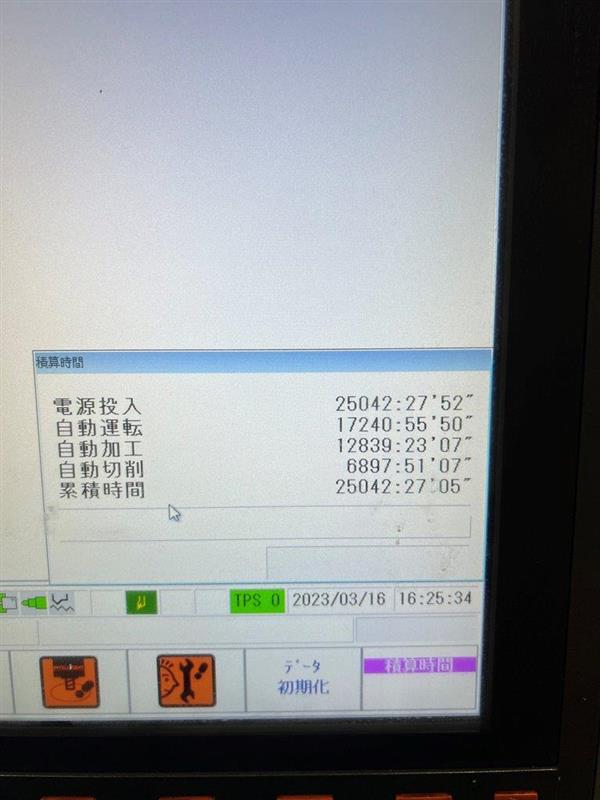

Mazatrol Matrix II CNC Conversational Control

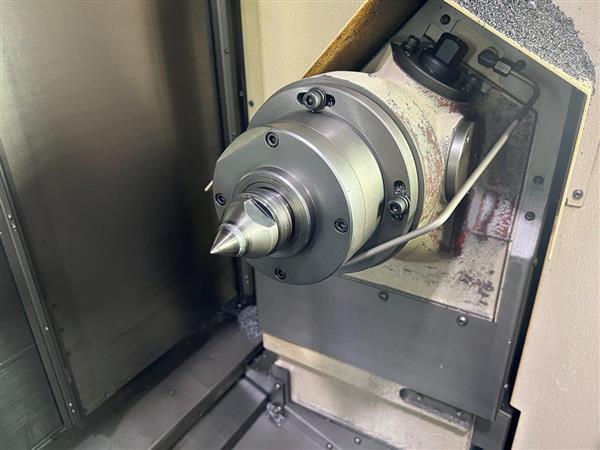

Programmable Tailstock
Auto Door Open & Close
Automatic Tool Presetter
Comparison Stop, 654.1, Sync. Mill Tapping

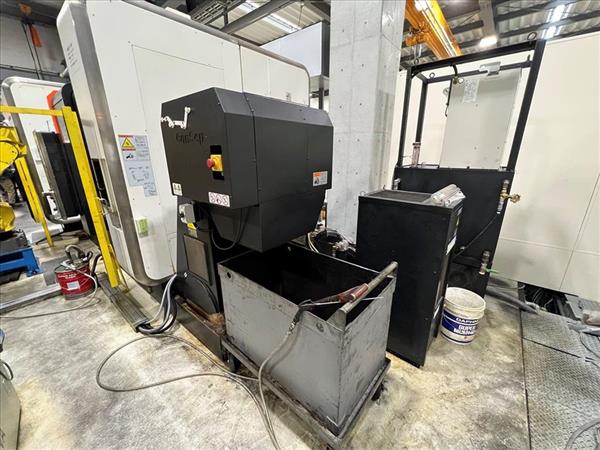

Concept 2000 Chip Removal System
Dynamic Comp., 3-D CO-OR Rot., Auto ATLM
EIA Helical Tap Cycle, EIA Pattern Cycle
EIA, Spiral, EIA 3D Comp.
EXT-Data I/O, High Speed, Shape Comp.

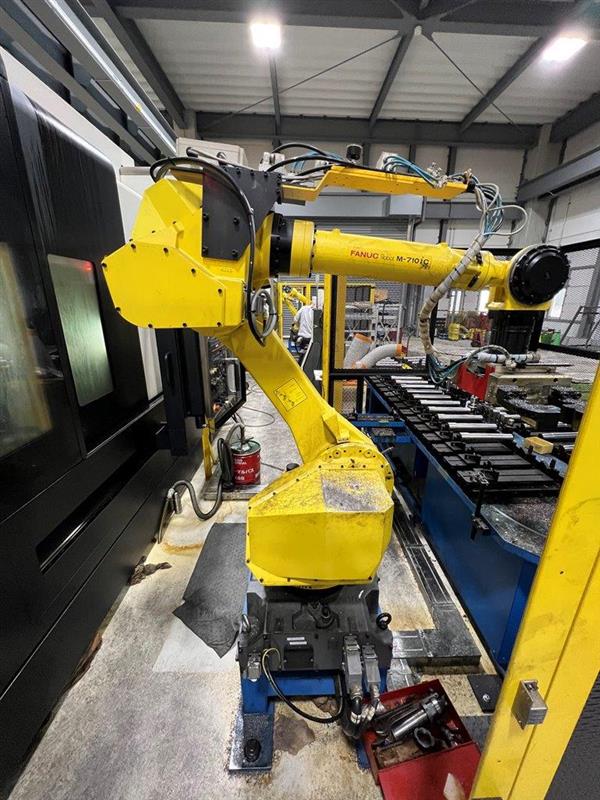

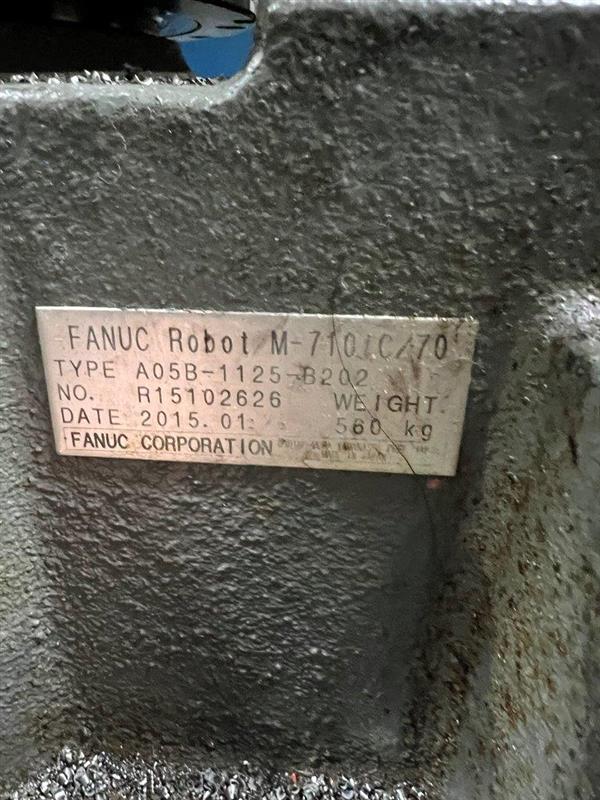

Fanuc M-710 iC/70 6 Axis Robot, 154 lbs Payload, 80.7″ Reach

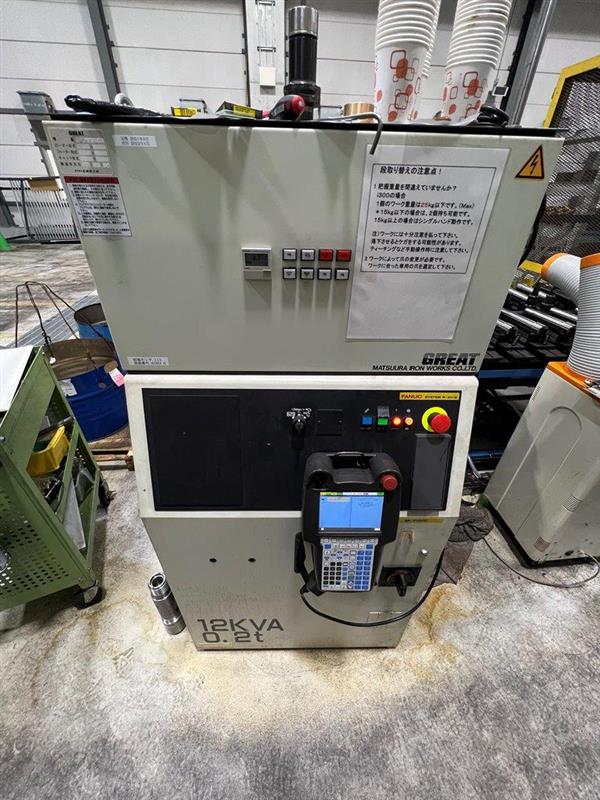

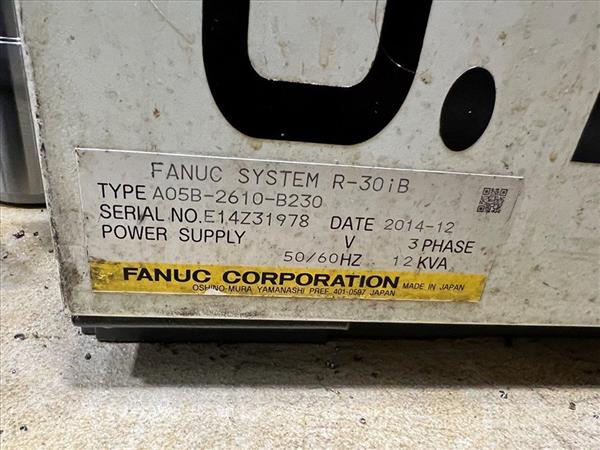

Fanuc System R-30 iB Robot Controller with Pendant
G00 Slope Constant
Inch/mm Convertion
Polar Coordinates Input
Rotation, Geometric, Scaling
ROT-Axis Shape Comp.
Simultaneous 5 Axis

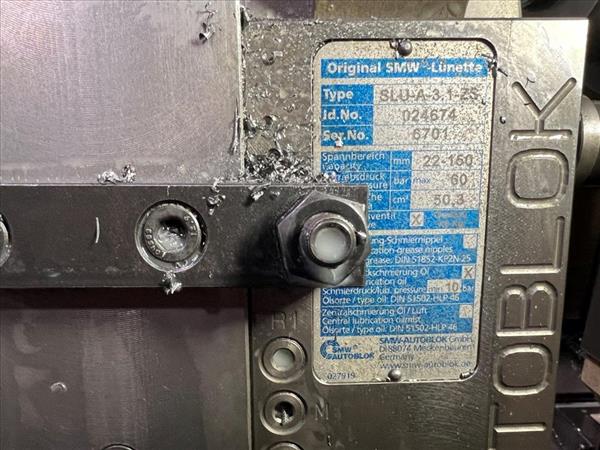

SMW SLU-A-3.1-ZS Fully Programmable Stedy Rest
Tilted Working Plane
Tool Center Point Control
Variable 600 Sets, Cylinder
