MAZAK INTEGREX 400-III ST – Year 2003

Learn Price

Categories: , ,

Description

MAZAK INTEGREX 400-III ST – Year 2003
CNC MultiTasking Turn-Mill Machine

MACHINE SPECIFICATION

X1 AXIS TRAVEL: 24.8″
X2 AXIS TRAVEL: 9.06″
Y AXIS TRAVEL: 10.23″
Z1 AXIS TRAVEL: 62.4″
Z2 AXIS TRAVEL: 60.24″
B-AXIS TILT HEAD: + 210 DEG TO – 30 DEG
C-AXIS INDEXING: 0.001 DEG
MAX TURNING DIA: 30″
MAX TURNING LENGTH: 60″
BAR CAPACITY: 3.46″
MAIN SPINDLE CHUCK SIZE: 12″
SUB SPINDLE CHUCK SIZE: 8″
MAX. MAIN SPINDLE SPEED: 3300 RPM
MAX. SUB SPINDLE SPEED: 4000 RPM
SPINDLE MOTOR 40 HP

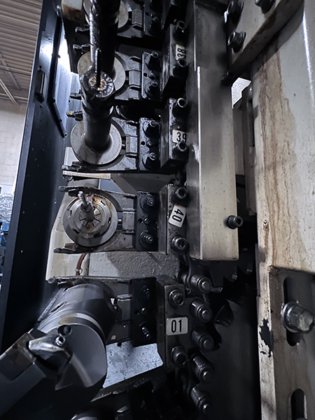

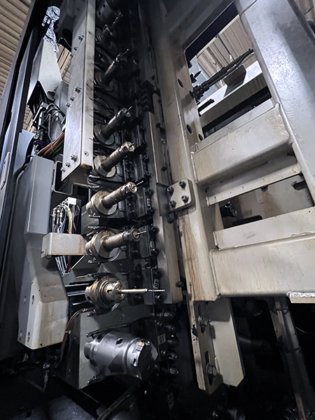

TURRET TOOLING 40 STATION
LOWER TURRET CAPACITY: 9 TOOLS
RAPID RATE X/Z AXES: 1,496 IPM
LIVE MILLING SPEED: 12,000
ROTARY TOOL MOTOR: 25 HP
TOOL TAPER CAPTO C6
DIMENSIONS 202″ X 93″ X 115″
WEIGHT 28,500 LBS

MACHINE EQUIPPED WITH

  • SYNCHRONOUS 5-AXIS TURNING CENTER

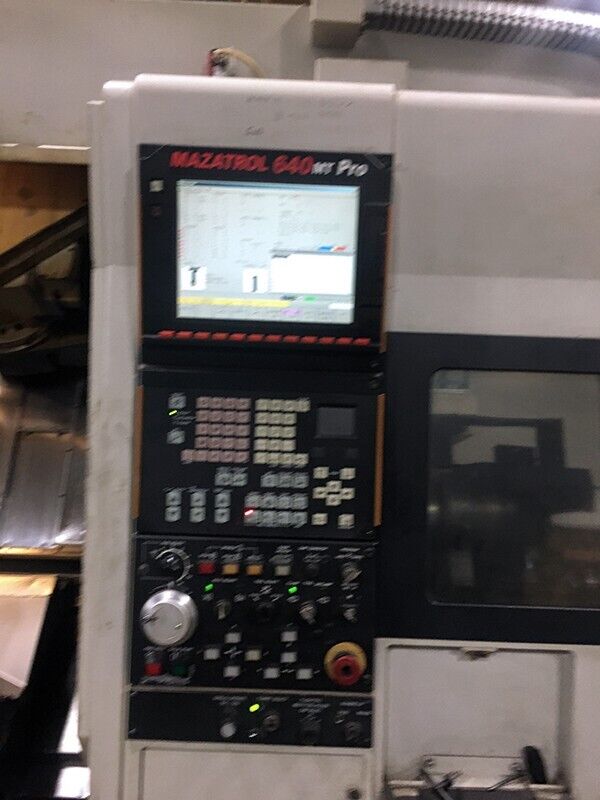

  • MAZATROL 640MT CONTROL
  • 12″ CHUCK ON MAIN SPINDLE
  • 8″ CHUCK ON SUB-SPINDLE
  • 40 TOOL CAPACITY
  • TOOL PRESETTER
  • LOWER TURRET WITH 9 POSITIONS
  • Y-AXIS
  • B-AXIS MILLING UPPER SPINDLE
  • COOLANT THRU SPINDLE
  • MIST COLLECTOR
  • ALL PICTURED TOOLING
