Description
MAZAK CYBERTECH TURN 5500T CNC Heavy-Duty Turning Center – Year 2012
Specifications
X-Travel: 19.20″
Z-Travel: 166.77″
Distance Between Centers: 157″
Max Swing Over Bed: 36.02″
Max Turning / Cutting Length: 120.00″
Max Cutting / Turning Diameter: 26.61″
Spindle
Chuck Size: 16.0″
Chuck Type: Hydraulic
Chuck Description: 3-Jaw Chuck
Spindle Speed: 500 RPM
Spindle Motor: 60 HP
Turret
Tool Positions: 10
Second Turret Positions: 8
Control

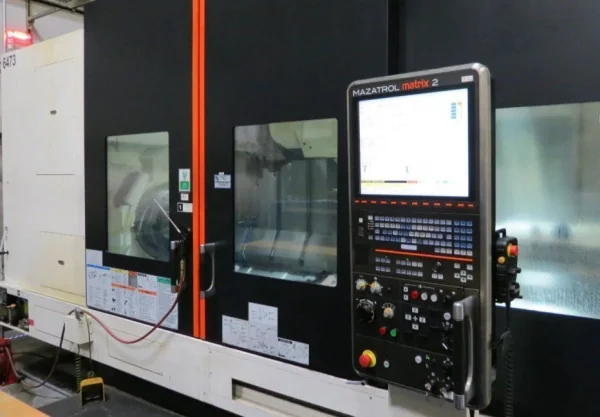

Control Make/Model: Mazatrol Matrix 2 CNC Control
Control Options: Manual Pulse Generator / Pendant
Tailstock / Steadyrest
Tailstock: Equipped With
Options
Additional Machine Specs:
Tailstock Chuck: 7″
Tsubakimoto Mayfran Chip Conveyor
Donaldson Torit WSO 25-1 Mist Collector
(2) Mazak T8-1000 Superflow Coolant System
Kouwakougyo Oil Chiller
Kanto Seiki Oil Chiller
Foot Control
Chip Removal: Chip Conveyor

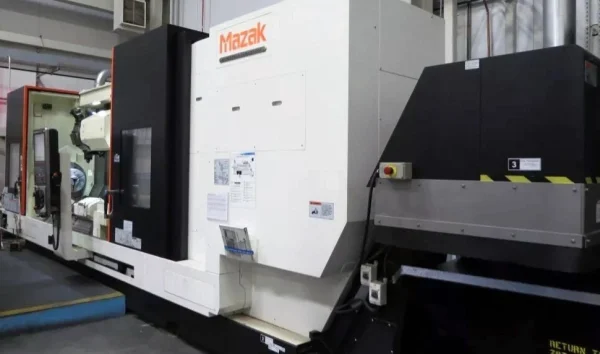

The 2012 Mazak Cybertech 5500T CNC Lathe is a high-capacity turning center designed to handle long, heavy workpieces with unmatched stability and accuracy. With a 16″ 3-jaw main chuck and a 7″ tailstock chuck, the machine supports parts up to 157.48″ in length. It offers a maximum swing of 36.02″ and a cutting diameter of up to 26.61″ on the upper turret, supported by a powerful 60 HP spindle motor (50 HP continuous) capable of operating from 2 to 500 RPM for optimal torque and speed balance.

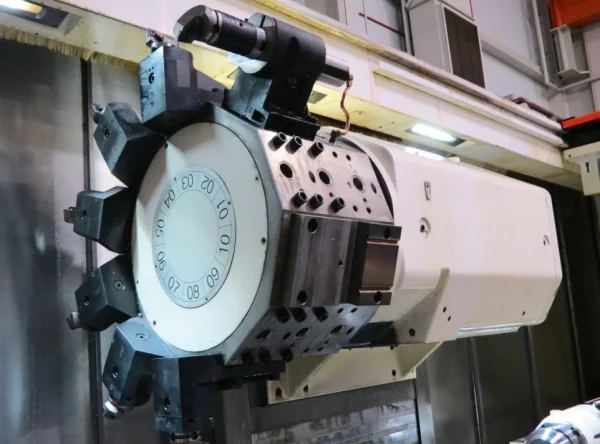

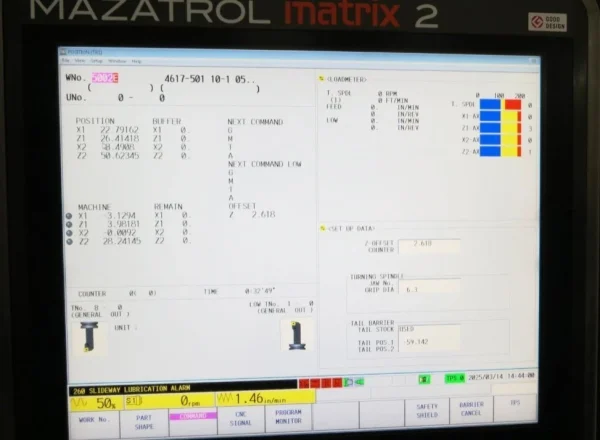

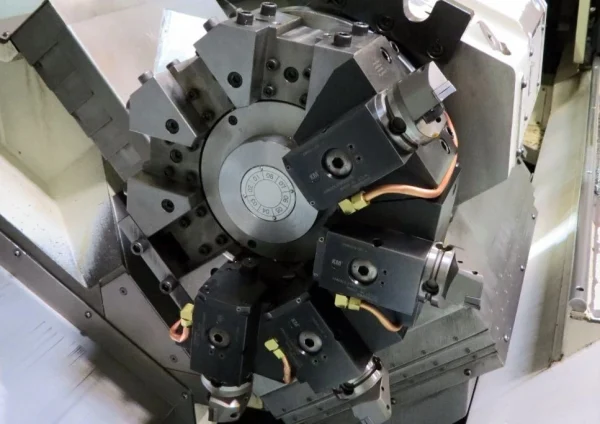

This model is equipped with dual turrets—10 positions on the upper turret and 8 on the lower—allowing for simultaneous machining to maximize productivity and reduce cycle times. The Mazatrol Matrix 2 control system enables intuitive operation, advanced part programming, and full toolpath management. With X1-axis travel of 19.20″ and a Z1-axis stroke of 166.77″, the machine accommodates a wide range of part sizes and machining strategies.
Supporting systems include dual Mazak T8-1000 Superflow high-pressure coolant systems, a Tsubakimoto Mayfran chip conveyor, and a Donaldson Torit WSO 25-1 mist collector for clean, efficient operation. Dual oil chillers from Kouwakougyo and Kanto Seiki maintain spindle and coolant temperatures to ensure consistent accuracy in extended runs. Designed with heavy-duty construction and smart features like foot controls and a dedicated pendant, the Cybertech 5500T is an ideal solution for industries requiring precision, power, and reliability in large-scale part manufacturing.
