Description

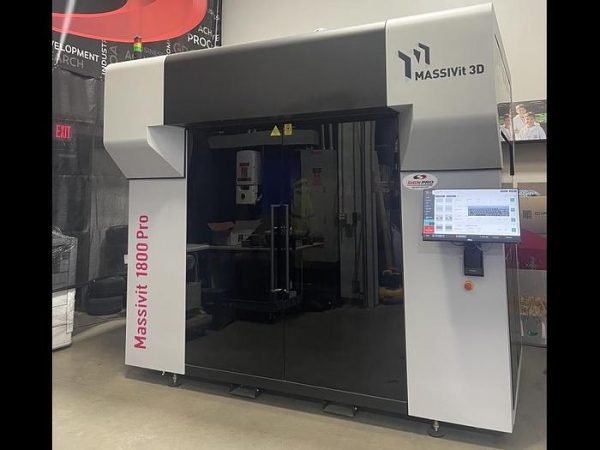

Massivit 3D 1800 PRO – Year 2019
Extra Fast 3D Printing for large parts
Manufacturer Massivit 3D
Model 1800 PRO
Year 2019
Condition Used
Rip included Yes
Service contract No
THIS IS A LIKE NEW PRINTER 83.32 hours Printing Time 44.45 hours Dispenser Time 86.18 Dispenser Amount 36.38 hours Pump Time 111.34 Pump Amount 23.38881125 hours UV #0 4.154053889 hours UV #1 10.53361139 hours UV #2 4.215404861 hours UV #3
Massivit 3D 1800 PRO Extra Fast 3D Printing Machines:
|
Print volume |
● WxDxH: 1.17×1.5×1.8m | 46x59x70.86in ● Max. object weight 150kg | 330lb |
|
Productivity (z-axis) |
Up to 35cm/hr | 13.7in/hr |
|
Printing material |

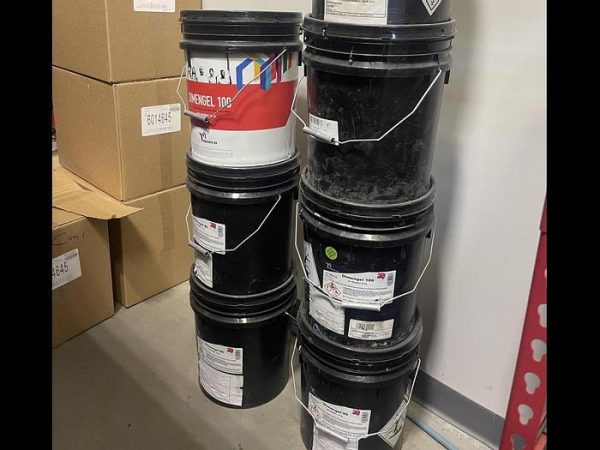

Dimengel – Massivit proprietary photo polymeric printing material white shade pails of 19kg | 41.8lb |
|
Workflow & software |
● Software on machine: Massivit proprietary front end software ° Operating on Windows® ● Massivit Smart: Massivit proprietary software* for file preparation ° Features: scale, rotate, slice, support generation |
|
Dimensions |
Printer WxDxH: 3.1×2.2×2.8m, 10.2×7.3×9.2ft | 2500kg, 5511lb Crated WxDxH: 3.5×2.3×2.6m, 10.9×7.6×8.4ft | 3000kg, 6613lb |
|
Regulatory compliance |
CE |
|
Operation requirements** |
● Electrical voltage: 3x32A 380-400VAC±10%, 50/60Hz ● Power consumption @50Hz (printing): 10kW |
|
Operating environment |
● Temperature: 16° to 30°C | 60.8° to 86°F |
Add a profitable new dimension to your business
Win new business, retain existing clients and distinguish your firm by making super-size 3D displays, prototypes and end-use parts a profitable part of your service offering.
Massivit 1800. Re-printing the rules of the game.
The Massivit 1800 is a big act to follow. It’s fast, it’s productive and, ultimately more profitable. Discover for yourself!
More printing power for your money
With its remarkable speed and cost- effectiveness, the Massivit 1800 adds a profitable dimension to any business.
Beautifully simple
Produce complex, super-size displays with minimal parts. For quicker,
cost – effective assembly.
Maximize productivity
● Turnaround more jobs in less time
● Build up rate of up to 35cm / 14in per hour
Dual-object printing (optional)
Can print 2 different objects in parallel
Easy to operate
● Easy to operate software
● Printer control from touchscreen
● Vacuum print table with printing liner for easy
handling of objects.
Leaner, lighter, greener
● Hollow lightweight products minimize cost of transportation and handling
● Minimal waste additive process
● No support structures required, eliminates
post-printing clean-up
● Low energy consumption LED UV curing
Speed-powered by GDP technology
Massivit’s patented Gel Dispensing Printing (GDP) technology enables objects to be 3D printed at remarkable size, speed, versatility and ease. GDP is a delicate balance of movement speed, curing speed, unique material properties, and smart support algorithms, enabling the printing of super-sized objects at super-fast speeds.
One machine. Limitless creative opportunities
Start producing creative 3D displays for advertising, promotions, high-level marketing and entertainment
Unique product launches Decoration that calls for selfies and interaction Special exhibition displays Amazing point of purchase displays that matter Entertaining, stand-out centerpieces for events
