Description

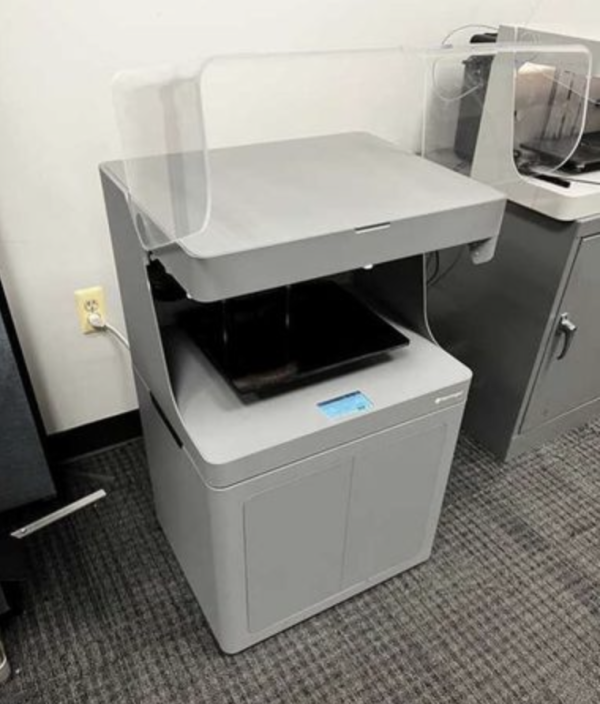

MARKFORGED X7 3D Printer – Year 2020
Brand: MARKFORGED
Model: X7
Specs:
X Axis Travel: 13″
Y Axis Travel: 10.6″
Z Axis Travel: 7.9″
Printer Properties
Process: Fused Filament Fabrication, Continuous Filament Fabrication
Build Volume: 330 x 270 x 200 mm (13 x 10.6 x 7.9 in)
Print Bed: Kinematic coupling — flat to within 80 ?m
Laser: In-process inspection, active print calibration, bed leveling
Extrusion System: Second-generation extruder, out-of-plastic and out-of-fiber detection
Power: 100–240 VAC, 150 W (2 A peak)
RF Module: Operating Band 2.4 GHz Wi-Fi Standards 802.11 b/g/n
Materials
Plastics Available: Onyx, Onyx FR, Onyx ESD, Nylon White, P-PLA, S-TPU
Fibers Available: Carbon Fiber, Carbon Fiber FR, Fiberglass, Aramid Fiber (Kevlar®),
HSHT Fiberglass
Tensile Strength: 800 MPa (25.8x ABS, 2.6x 6061-T6 Aluminum)*
Tensile Modulus: 60 GPa (26.9x ABS, 0.87x 6061-T6 Aluminum) *
Part Properties
Layer Height: 100 ?m default, 50 ?m minimum, 250 µm maximum
Infill: Closed cell infill: multiple geometries available
Software
Eiger Cloud: Slicer, part / build management (other options available at cost)
Security: Two-factor authentication, org admin access, single sign-on
Blacksmith: Adaptive manufacturing platform (additional purchase required)
Dimensions: 23″ x 19″ x 36″
Weight: 106
Options:
4 boxes of Carbon Fiber (150 cubic cm)
2 fiber glass spools (50 cubic cm)
2 kevlar spools (50 cubic cm)
