Description

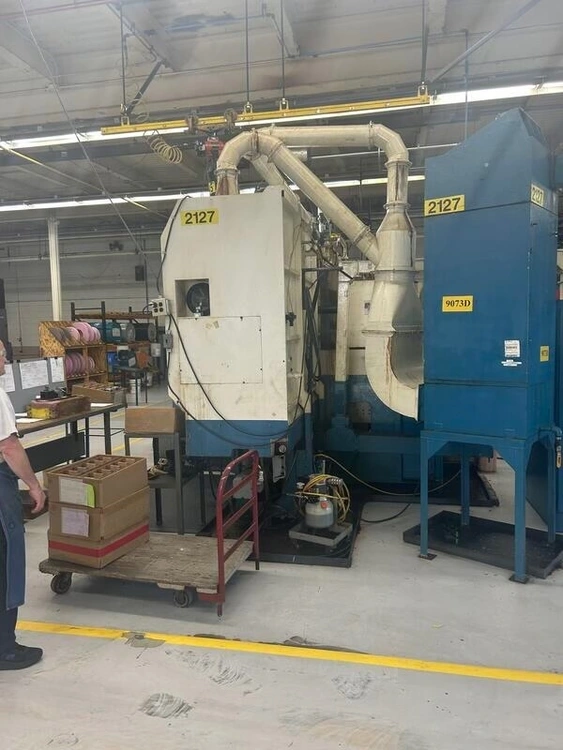

Magerle MFP125.35.45 CNC Creep Feed Grinder 4-Axis – Year 1992
size 49″ x 14″
# Axis 4
Power 20.5 kW
Max RPM 9,000 RPM
Control CNC (Allen Bradley)
Magerle MFP125.35.45 4 Axis CNC Creep Feed Grinder (1992)
Working Range 49″ X 14″
Grinding Length 47″
Longitudinal Stroke 49″
Traverse Stroke Of Wheel Head 13″
Vertical Stroke Of Wheel Head 17″
Dist. Between Table And C/L Grinding Spindle 23″
Grinding Wheel Motor 27.5 Hp
Log. Stroke Speed 1176/Ipm
Horiz. Stroke Speed 120/ Ipm
Vert. Stroke Speed 98/ Ipm
Profile Roll Dia. 5″
Profiel Roll Length 5″
Profile Roll Bore 1.3″
Speeds 9,000 Rpm
Horizontal Dressing Stroke 4.3″
Vertical Stroke 3.3″
Stroke Speed ( Horiz) 40 Ipm
Vert. Stroke Speed 2.9 Ipm
Min. In Feed Value .001 Mm
Equipped With
Allen Bradley CNC Control
Overhead Crush Roll Dresser
Utilization: Grinding Turbine Blades For Pratt & Whitney
