Description

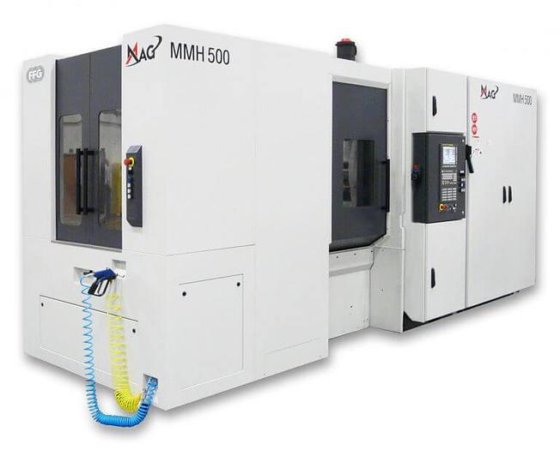

MAG MMH 500
CNC Horizontal Machining Center
Condition: new
X axis travel:30″
Y axis travel:28″
Z axis travel:31.5″
Spindle center to table surface:2″-30″
Spindle nose to table center:3.9″-35.4″
Table surface to floor:41.3″
Linear axis speed:2,362 IPM
Linear axis acceleration:19.7 IPS2
Linear accuracy (iso-230-2):0.4*10-3″
Linear repeatability (iso-230-2):0.2*10-3″
Linear accuracy (jis):+/-0.08*10-3″
Linear repeatability (jis):+/-0.06*10-3″
Pallet size:19.7″ x 19.7″
Max loading mass:1,323 LBS
Max workpiece height:39.4″
Max workpiece diameter:27.6″
Min indexing degree:0.001 degree
Tool taper:CAT40/HSK63
Max speed:12k/15k
Power (continuous):20.1 HP
Torque (continuous):88.5 FT-LBS
Max power (15 min):29.5 HP
Max torque (15 min):111 FT-LBS
Number of tools:40/60
Max tool mass:26.5 LBS
Max tool diameter:3.7″
Max tool diameter (adj pockets empty):7.5″
Max tool length:21.7″
Tool to tool time:1.5 sec
Tool change time:2.4 sec
Chip to chip time:4.3 sec
Dimensions:203″ x 117″ x 110″
Machine weight:37,479 LBS
Machine power usage:60 KVA
Machine air usage:85-114 psi
Equipped with:
Fanuc 31i-MB CNC control
Manual load pallet at load station
Pallet changer-2 positions
Machine leveling-7 point leveling
Rotary table
(2) Table pallets-500mm x 500mm w/tapped holes
Hydraulics and pneumatics included
Coolant flushing chip flume (rear discharge)
Dry floor
Chip augers (rear discharge)
Self-contained coolant system/chip conveyor
Operations manuals – electronic format (CD)
