Description

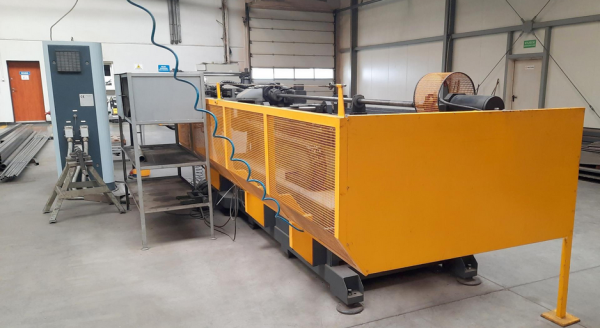

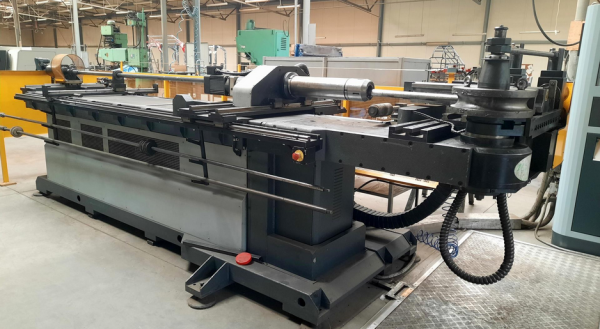

Macri Italia Provar 5-90 U-D – Year 2010
Tube Bending Machine
| Max. tube length | 5100 mm |
| Max. tube Ø | 90 mm |
| Bending angle | 150 ° |
| Total power | 35 kW |
| Macri Italia Provar 5-90 U-D | Tube Bending Machine |
| Length x width x height | 6100.0 × 1200.0 × 1200.0 |
| Weight | 6000 kg |
Technical parameters of the MACRI ITALIA PROVAR 5-90 U-D pipe and profile bender
General information
– number of axes: 5 (X, Y, Z, B1, B2)
– maximum pipe length: 5100 mm
– maximum pipe diameter: 90×4 mm
– maximum pipe diameter (variable radius min. RM 10D): 80×2 mm
– travel speed (X axis): 1000 mm / 1 ”
– bending speed (Y axis): 150°/1″
– clamp rotation speed (Z axis): 450 ° / 1 ”
– tolerance in the X axis: ± 0.1 mm
– tolerance in Y, Z axes: ± 0.1°
– maximum bending angle: 195°
– spindle retraction stroke: 60 mm
– direction of rotation: clockwise
– power: 35 kW
– power supply: 400V; 50 Hz
– dimensions of the control cabinet (length x width x height): 900 x 600 x 1800 mm
– dimensions (length x width x height): 6100 x 1200 x 1200 mm
– machine weight: 6000 kg
Efficiency
– bending radius R=42 kg/mm2 min. R middle 10D : 30 x 2 mm
– round pipe R=42 kg/mm2: 45 x 4 mm
– stainless steel round tube: 40 x 3 mm
– round tube (Al, Cu, Ot): 45 x 5 mm
– square pipe R=42 kg/mm2: 40 x 40 x 2 mm
– rectangular tube (easy way): 30 x 45 x 2 mm
– rectangular tube (difficult way): 30 x 35 x 2 mm
– round bar R=42 kg/mm2: 30 mm
– square bar R=42 kg/mm2: 25 x 25 mm
– minimum internal R with pin: ≥ 30 mm
– internal minimum R special : ≤ 30 mm
– maximum center R with rollers: 260 mm
MACRI ITALIA PROVAR bender equipment
– software: MACRI
– flat-oval profile 90 x 55 x 2.6 (inner radius 145 mm)
– flat-oval profile 60 x 30 x 2 (inner radius 135 mm)
– pipe 60.3 x 2.9 (inner radius 150 mm)
– pipe 76.1 x 2.8 (inner radius 152 mm)
– control cabinet with industrial computer (Windows 10, 512 MB RAM, 19 TFT SVGA touch display, keyboard, mouse, USB port, RS232 port)
– brushless axis servo motors
– die opening cylinder (square and rectangular tubes)
– anti-crack cap support
– movable slider support
– aluminum safety mat
– sets of tools for the selected diameter of the pipe / profile
The MACRI ITALIA PROVAR 5-90 U-D pipe bender was built in 2010 in Italy. The machine with a high-quality steel construction with even better components and rich equipment was created for precise bending of a constant and variable radius on two different dies. Processing of pipes and profiles with a maximum length of 5100 mm is carried out fully automatically in 5 numerically controlled axes (X, Y, Z, B1, B2) using a movable head with gears of increased strength. In order to ensure excellent dynamics and positioning accuracy throughout the life of the machine, all axes are equipped with reliable brushless servo motors.
The MACRI ITALIA mandrel bender is controlled by modern MACRI software with many useful functions. With the help of the software, it is possible, for example, to carry out an anti-collision test with 3D simulation, import files from 3D programs, program the pressure force of the positioner, program the speed of movement of each axis for each bend, or enter up to 6 different programs. The PROVAR 5-90 U-D bending machine weighs 6000 kg.
