Açıklama
| Axis X | 1000 mm |
|---|---|
| Axis Y | 500 mm |
| Axis Z | 550 mm |
| Rotary table (4th axis) | no |
| Type of CNC | Heidenhain TNC 410 |
| Table length | 1500 mm |
| Table width | 350 mm |
| Max. part weight | 500 kg |
| Number of tool pockets | 1 |
| Spindle taper | ISO 40 |
| Max. spindle speed | 4000 rpm |
| Spindle motor power | 7.5 kW |
| Length x width x height | 2650.0 × 3250.0 × 2100.0 |
| Weight | 4500 kg |

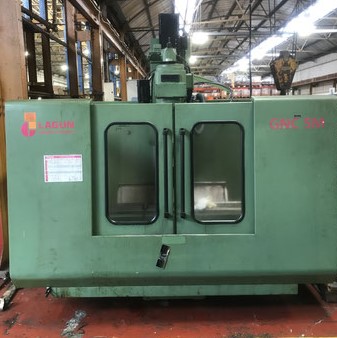

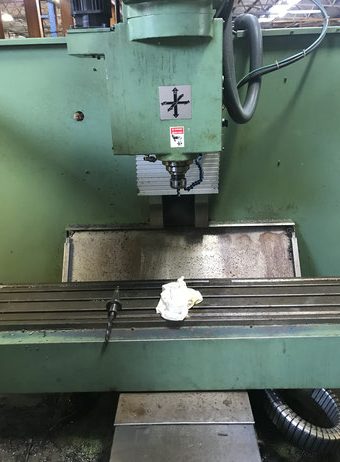

LAGUN Vertical Machining Centre
Model – GNC 5M VMC
Year: 2000
Travel axes (X,Y,Z) : 1000x450x540 mm
Travel rod W: 150 mm
Table: 1525x 325 mm
Max. weight on table: 400 Kg
Spindle speed : 4.000 rpm
Spindle power: 7,5 Kw
Taper type : ISO-40
CNC: Heidenhain TNC 410
Machine’s weight: 4.500 Kg
Dimensions : 2.670×3.275×2117 mm
Good working condition, can be viewed under power.
