Description

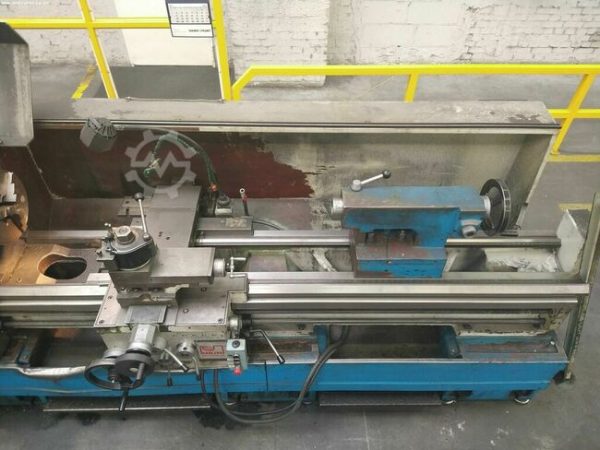

The universal lathe Knuth Sinus 330 D / 2000 was manufactured in 2005 by the German manufacturer of machine tools, the Knuth company.
Technical parameters :
turning length: 2000 mm
max turning diameter over the bed: 660 mm
max turning diameter over the slide: 440 mm
max turning diameter in the bridge: 900 mm
bridge length: 250 mm
canine rise: 330 mm
maximum tool shank size: 25 x 25 mm
maximum cross slide travel: 368 mm
maximum drawer travel: 230 mm
spindle bore: 105 mm
spindle head connector: D1-8
tapered spindle reduction: 113mm (1:20) / MT5
number of spindle speeds: 16
spindle revolutions: 25 – 1600 rpm
tailstock quill travel: 235 mm
tailstock quill diameter: 90 mm
Inner taper of tailstock quill: MT5
main engine power: 7.5 kW
cooling pump motor power: 0.1 kW
machine dimensions (L x W x H): 371 x 123 x 160 mm
lathe net weight: 2900 kg
