Description

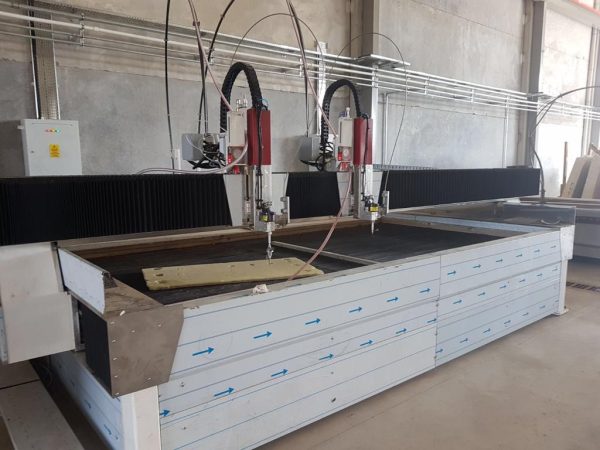

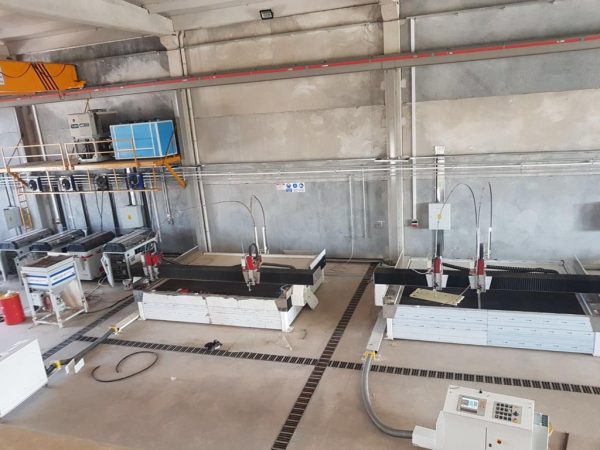

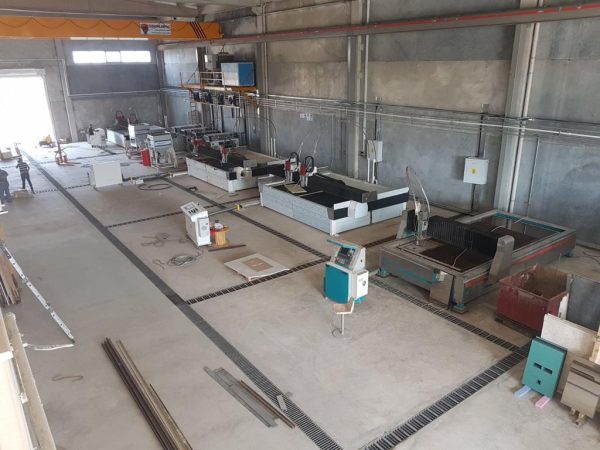

KMT STREAMLINE SL-V 100R Plus – Year 2012
Waterjet Cutting Machine
| Metal length | 4000 mm |
| Metal width | 2000 mm |
| CNC | Yes |
| CNC Waterjet Cutting Machine |
Machine has been produced by Baykal in Bursa/TURKEY
Cutting area : 4000 mm x 2000 mm

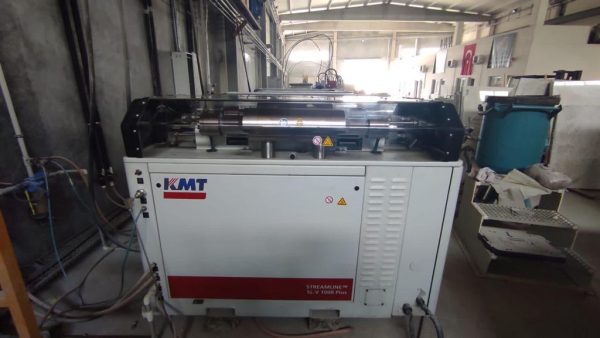

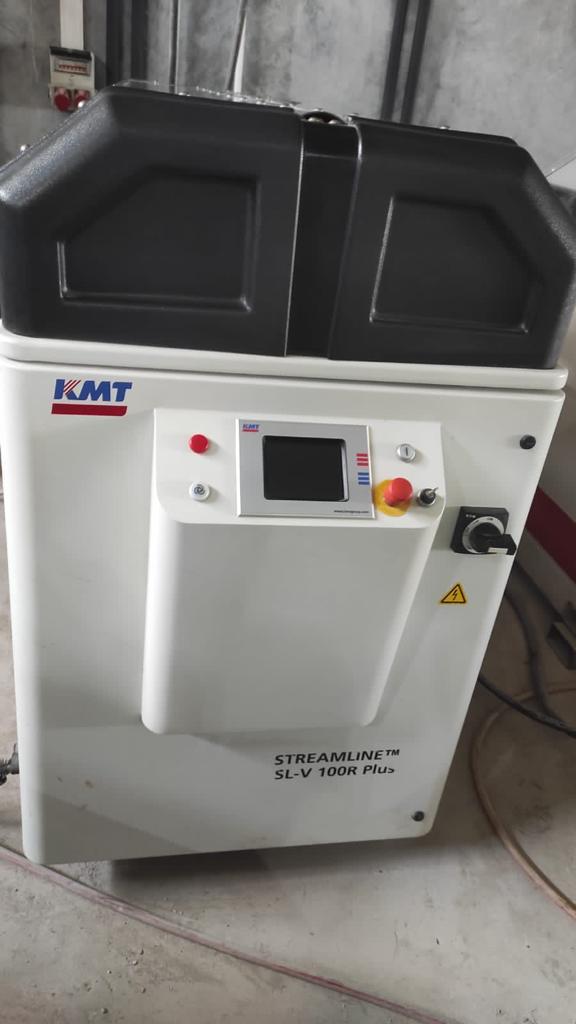

KMT pump 100 HP
American made KMT pump and cutting head
Machine can change tools while it is working
CNC and software made in Italy
Manufacturer Catalogue Information about
KMT STREAMLINETM SL-V Waterjet Machine :
Advance to STREAMLINETM SL-V
STREAMLINE TM Technology: Establish Your Competitive Edge
StreamlineTM systems use the latest technology and a very smart design for ease of use, reliability and convenience. The result is a system that delivers highest efficiency and profit.
SL-V: The Best Series Ever Offered
The SL-V line represents the culmination of several technological advancements:
Advances in Convenience
• Complete Redundancy – Because a single intensifier produces all of the needed pressure, adding an optional redundant system for continuous production of 60,000 psi is a simple operation.
• More Ergonomic Design – From the see-through top cover, which opens on both sides, to the high pressure intensifier, which can be disassembled in parts or one side at a time, extreme convenience was a high priority during design.
• Better Software Features – High-tech software and built-in sensors provide protection and immediate access to information. More control and information is available faster.
• Long-term Competitiveness – The SL-V pumps were designed with the latest technology to provide a competitive edge that will last long into the future.
Smart Design Advances
• Longer Run-times – Significant advances were achieved by eliminating some seals and changing materials.
• Faster Cutting – Rather than just increase the pressure, we changed and strengthened the machine design to produce 60,000 psi for faster cutting and cleaner edges.
Choosing the Right System
There are two main factors which determine the size of system required: water volume and pressure. By increasing these two factors, cutting can be faster and have cleaner edges. With this in mind, there are three main variables which help determine how much water and pressure is needed, and in turn, which system is best for an application:
1) Type of Material
The hardness and thickness of the material to be cut determines a minimum water volume requirement. Thick materials (whether hard or soft) require larger streams of water which have greater velocity and more energy to cut over a long distance. Harder materials with dense structures also require higher pressures.
2) Cut Speed Required
Cutting faster, extremely important for higher margins and high production environments, is possible by increasing both water volume and pressure. KMT Waterjet pumps can be networked (a KMT Waterjet exclusive) to allow high cutting speeds for multiples of cutting heads.
3) Size and Number of Cutting Heads
Multiple cutting heads enable higher productivity but require more water. KMT Waterjet pumps enable operating multiple cutting heads cutting the same or different parts, at extremely low operating costs.
KMT Waterjet can help determine the ideal mix of water and pressure by providing sample cuts or drawing
on extensive experience with cutting materials.

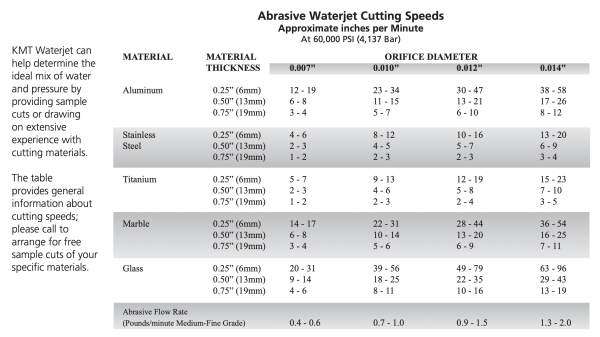

The table ( on pictures)
provides general information about cutting speeds; please call to arrange for free sample cuts of your specific materials.

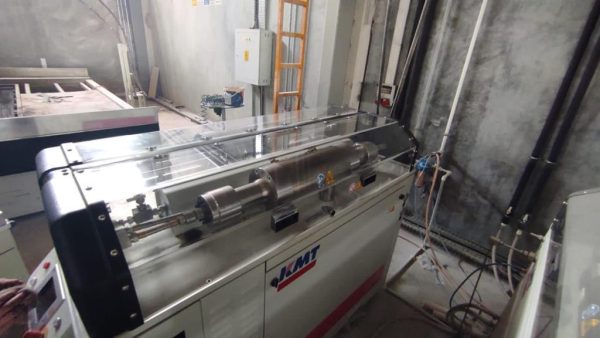

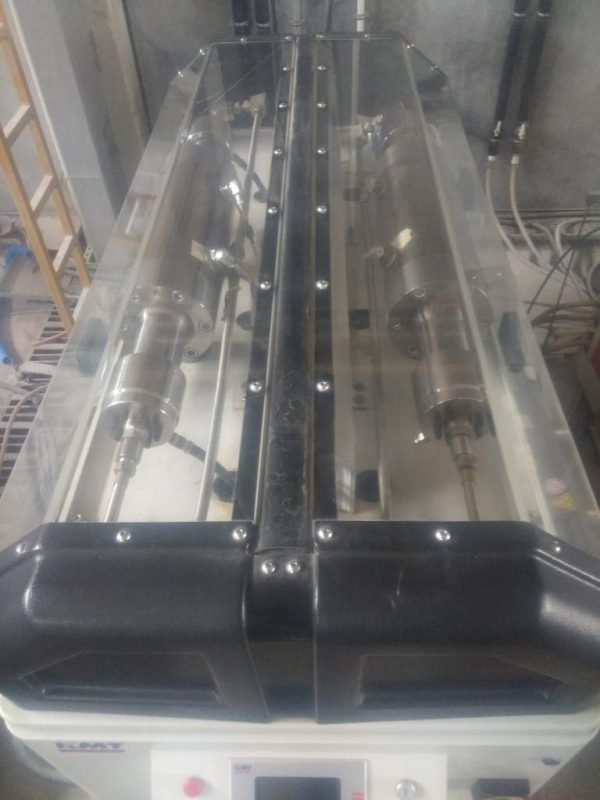

The Intensifier
The source of pressure.
No other system incorporates the features of the SL-V to deliver the simplest, easiest-to- operate, most reliable system.
Plunger
• Ceramic – Harder surface lasts longer, eliminates scoring and reduces wear on seals.
• Exclusive Long, Slow Stroke Moves More Water– Reduced maintenance results from the longer (about 8″) stroke which moves more volume (up to 5.5ci) allowing a slower stroke rate, extending the life of seals.
• “Quick Release” Plunger – Allows fast, easy removal and replacement of plungers.
Seals
• “One-Step” Seal Replacement – Hydraulic and high pressure seals can be replaced in one operation – with little downtime.
• HYPERLIFETM Seals – U.S. Patent #6,769,695 – Sweden Patent #0203660-6. The seals now last twice as long over 1,000 hours while providing a better seal by conforming to the shape of the cylinder when under pressure. (Seal performance may be longer or shorter depending on pressure and water quality.)
Hydraulic Seal
The convenient, cartridge-style seal in the intensifier combines 6 seals on one cartridge; it can be changed quickly using the plunger removal tool.
Electronic Shifting
Electronics provide smoother, more reliable shifting for a more leak-free operation.
Metal-to-Metal Seal Head
The exclusive, metal-to-metal seal of the seal head eliminates the maintenance of a consumable seal.
Threaded End Cap
The threaded Hard Seal End Cap and threaded cylinders make it easier to access internal parts. Maintenance can be performed quickly to just one side of the intensifier at a time no need to remove the entire intensifier to work on one side.
Weep Hole Indicators
Weep holes were included to reveal the condition of internal seals, before major problems appear.
