KITAKO MT4-200 CNC 4-Spindle Horizontal Turning Center Lathe – Year 1996
Good Condition. Under power and ready for inspection.
EQUIPPED WITH:

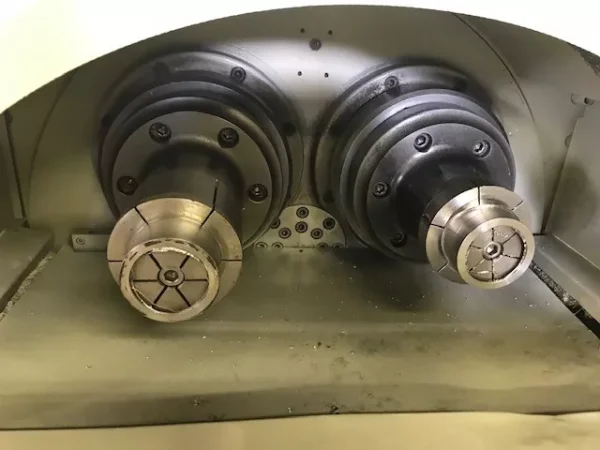

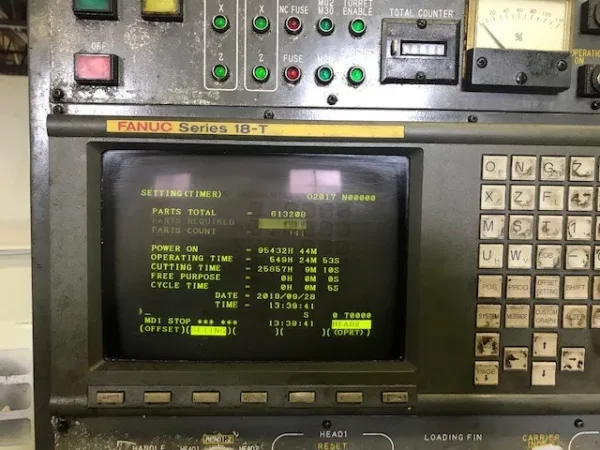

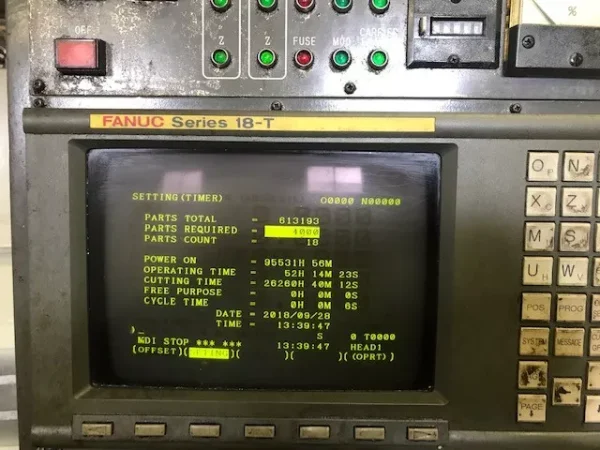

Fanuc 18T CNC Control, RS-232 Port, Background Edit, (4) Spindle

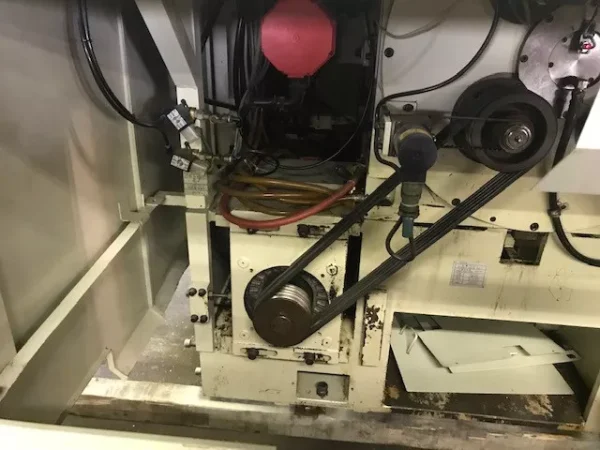

Design with (2) in the Machining Area and (2) in Load Position, Separate

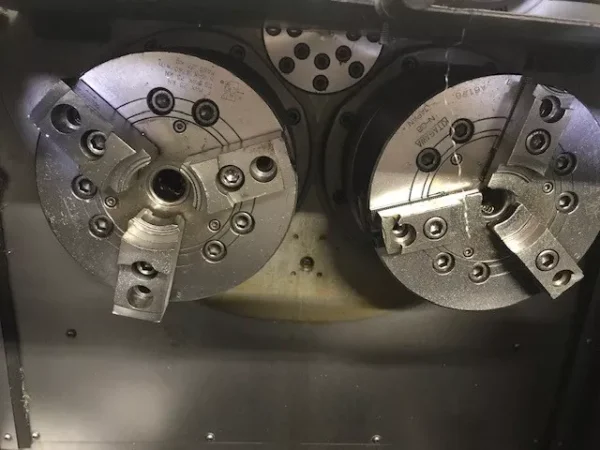

Drive for Each Spindle, (4) 8″ 3-Jaw Kitagawa Power Chucks, Hydraulic
Actuators on all (4) Spindles for Chucks or Hydraulic Clamping.

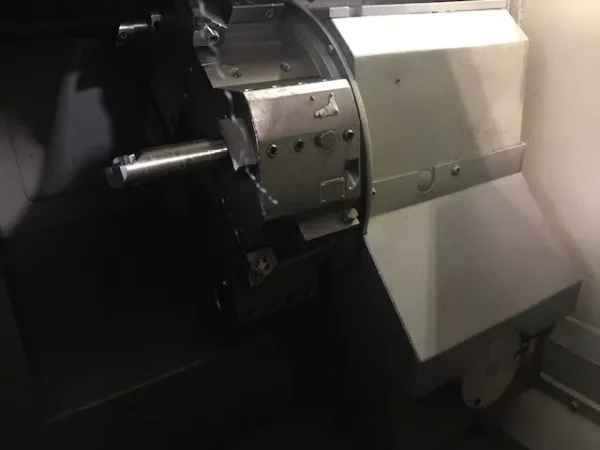

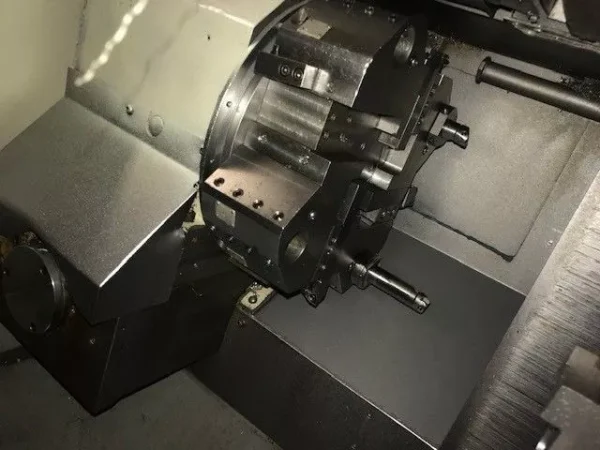

(2) 8 Position Tool Turrets, Conveyor and Coolant System.
Number of Spindles……………………………….. 4
Chuck Size………………………………………. 8″
Max Turning Diameter with Standard Tools……………. 7.9″
Max Turning Length……………………………….. 6.3″
X-Axis Stroke……………………………………. 6.7″
Z-Axis Stroke……………………………………. 9.84″
Rapid Traverse X-Axis…………………………….. 1181 IPM
Rapid Traverse Z-Axis…………………………….. 1181 IPM
Spindle Nose…………………………………….. A2-6
Spindle Speeds…………………………………… 50 – 4000 RPM
Spindle Motor……………………………………. 20 HP
Approximate Machine Dimensions…………………….. 106″ x 78″
Approximate Machine Height………………………… 85″
Approximate Machine Weight………………………… 17,500 LBS

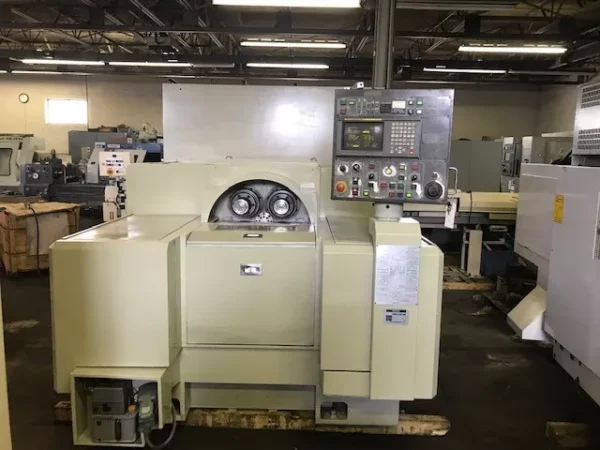

KITAKO 4-SPINDLE CNC HORIZONTAL TURNING CENTER
Model MT4-200,
New 1996,
