Description

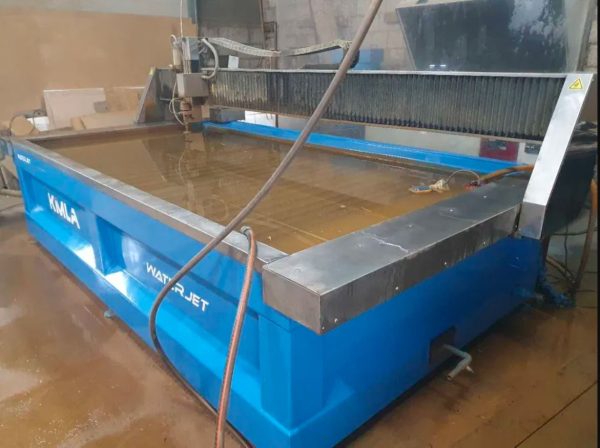

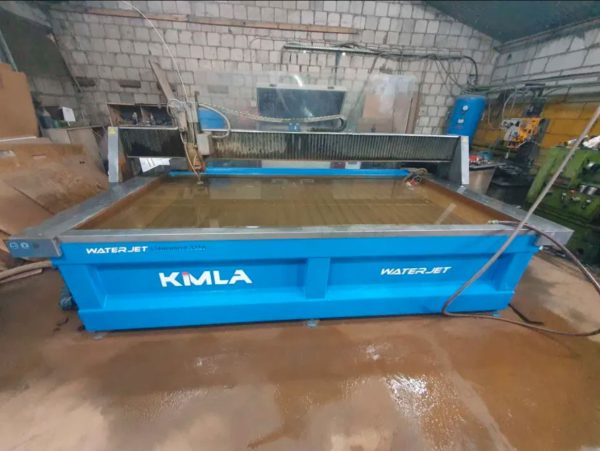

KIMLA 3116 Waterjet – Year 2009
| Metal length | 300 mm |
| Metal width | 1600 mm |
| Nbr of heads | 1 |
| Max thickness | 200 mm |
| Working pressure | 4137 bar |
| CNC | Yes |
| Type of CNC | PcCamPlusv5 |
| Power | 37000 W |
| Sand recuperation | Yes |
| KIMLA 3116 Waterjet Cutting machine | |
| Length x width x height | 1500.0 × 3000.0 × 700.0 |
| Worked hours | 6500 hours |
Waterjet Kimla 3116 machine is 100% efficient, mileage 6800mth 2009 in continuous use.
Technical parameters:
• Working range 3100 x 1600 mm
• Dimensions of the cut sheet 3050 x 1550 mm
• Maximum cutting thickness 200 mm

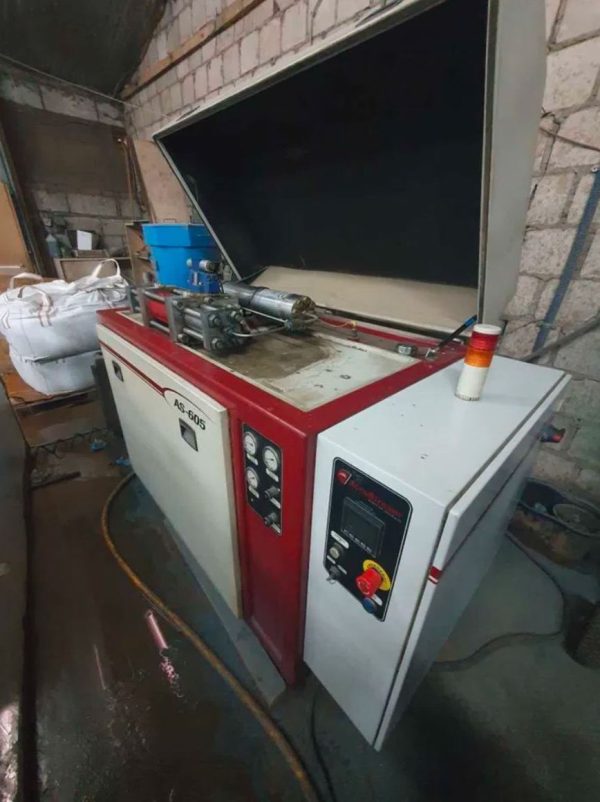

• Pump with a pressure intensifier with ceramic plungers (very durable)

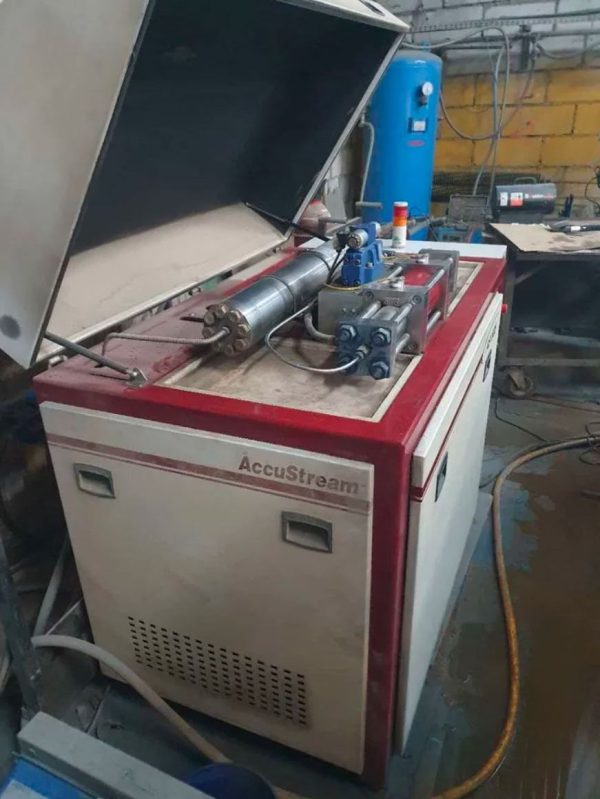

• 37 kW pump power by ACCUSTREAM – USA
• Maximum pump pressure 4137 bar
• Galvanized bathtub
• 300 kg abrasive feed hopper.
• Pneumatic abrasive delivery system
• Air cushion (can be cut in immersion)

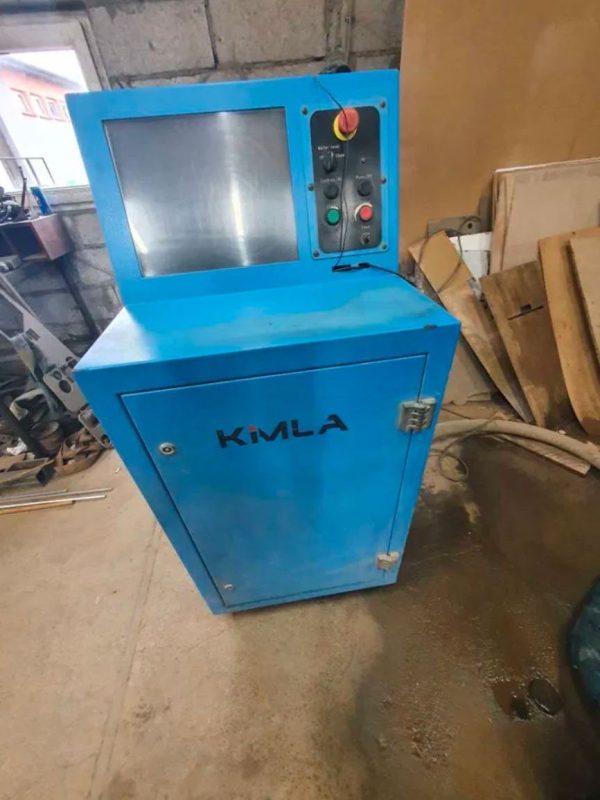

• Controlled by a pad

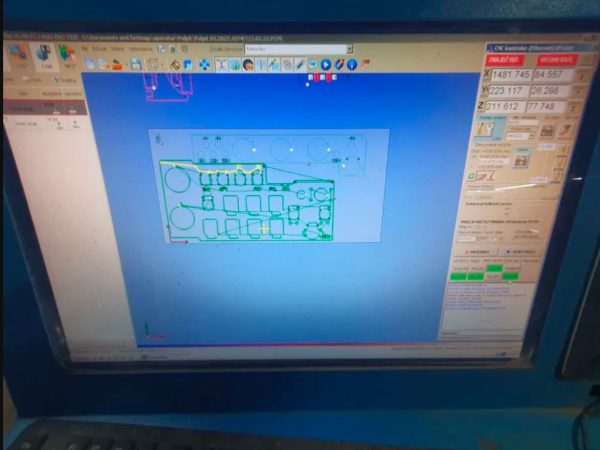

• PcCamPlusv5 machine control software
• KIMLA software controlling the head movement, compatible with the operating system
• Low pressure piercing feature.
The machine is in continuous use.
