Description

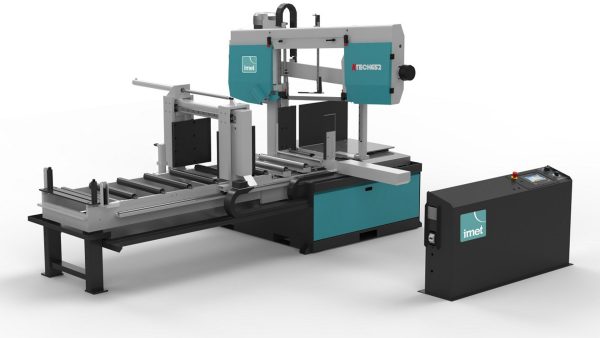

IMET KTECH 652 F2000 Fully Automatic Band Saw
| Model | KTECH 652 F2000 |
| Brand | IMET |
| Condition | new |
| Cutting capacity 0° round | 510 mm |
| Cutting capacity 0° square | 480 mm |
| Origin | Italy |
IMET KTECH 652 F2000 Machine General characteristics
| Band dimensions | 5320x34x1,1 mm |
| Band speed continous | 18/100 m/min |
| Cutting capacity 0° round | 510 mm |
| Cutting capacity 0° square | 480 mm |
| Cutting capacity 0° rectangular | 650×450 mm |
| Cutting capacity 45° | rund 440 mm, quadrat 440 mm, rechteck 440 x 440 mm |
| Cutting capacity 60° | rund 250 mm, quadrat 250 mm, rechteck 250 x 450 mm |
| Cutting capacity – 45° | rund 440 mm, quadrat 430 mm, rechteck 430 x 430 mm |
| Cutting capacity – 60° | rund 250 mm, quadrat 250 mm, rechteck 250 x 450 mm |
| Cutting capacity 0° solid material C45 | 280 mm |
| Min. cutting diameter | 10 mm |
| Min. cutting length | 25 mm |
| Min. rest piece length | 265 mm |
| Working height | 845 mm |
| Hydraulic motor | 0.55 kW |
| Motor | 3 kW |
Dimensions and weight
| Length | 3930 mm |
| Width | 2870 mm |
| Height | 2300 mm |
| Weight | 4000 kg |
Description
full automatic band saw with automatic mitre adjustment

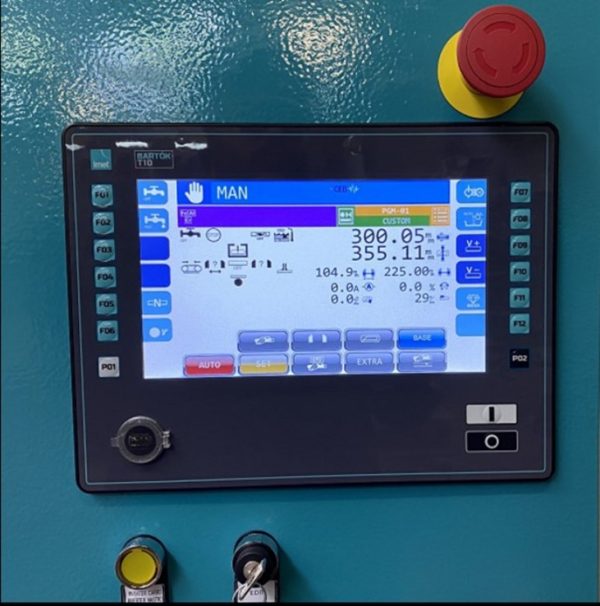

CNC control with 10″ touchsceen
4 axes controlled (lateral movement and closing of the vice, material feeding, saw frame rotation)
different expulsion modes can be programmed
the feeder can be used as gauge in semi automatic mode
edge cut funktion (for 2 different mitre angles at one cutting edge)
adjustable descent speed
vibrationfree cutting
mobile control console
electronic inverter for variable speed
feeder with 2000 mm stroke and integrater roller table
automatic detection of material
Optional equipment as blade deviation system, bundle cutting device, laser cutting line, software Sawfactory, ink marking unit, saw frame downfeed by ball screw spindle, protection fences or photocells and roller tables on request.
