Description
Max. grinding length | 500 mm |
---|---|
Grinding diameter | 200 mm |
Exter | No |
Inter | Yes |
CNC | Yes |
Type of CNC | OKAMOTO DX |
Max. swing diameter | 220 mm |
Max. height from spindle to table | 110 mm |
Max. wheel speed | 400 rpm |
Length x width x height | 2900.0 × 1850.0 × 1650.0 |
Weight | 2000 kg |

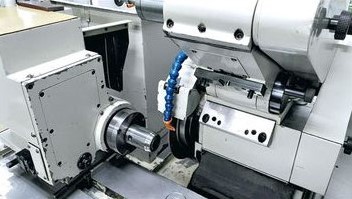

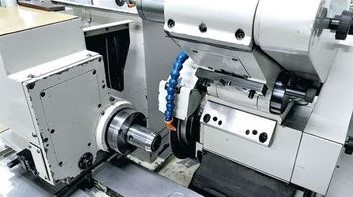

CNC universal cylindrical grinding machine,
Internal grinding device,
Table drive by means of AC motor via ball screw,
T-shaped machine bed as cast body
Grinding diameter 200 mm
Grinding length 500 mm
Center height 110 mm
Swing diameter 220 mm
Control system OKAMOTO DX
Grinding wheel dimensions 305 x 25 x 127 mm
Workpiece headstock: MK 3
Workpiece spindle speeds 150/250/400 1 / min
