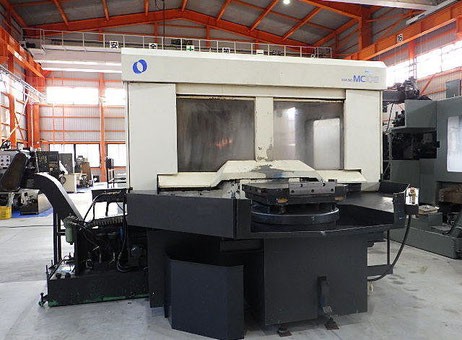

Description
Axis X | 1050 mm |
---|---|
Axis Y | 810 mm |
Axis Z | 810 mm |
Rotary table (4th axis) | no |
CNC | FANUC15-M |
Number of tool pockets | 60 |
Spindle taper | BT50 |
Max. spindle speed | 4000 rpm |
Length x width x height | 6600.0 × 4500.0 × 3200.0 |
BT50
ATC 60 pcs. 800 sq. 2 pallet
Spindle speed 4000 rpm
Stroke X1050 Y810 Z810
Right-out Chip Conveyor tool slew crown 5 degree index Installation dimension (actual size): 6600 x 4500 x 3200 mm
