Description
MAKA is used for aluminium machining . However, it can also be used for wood or plastic processing.

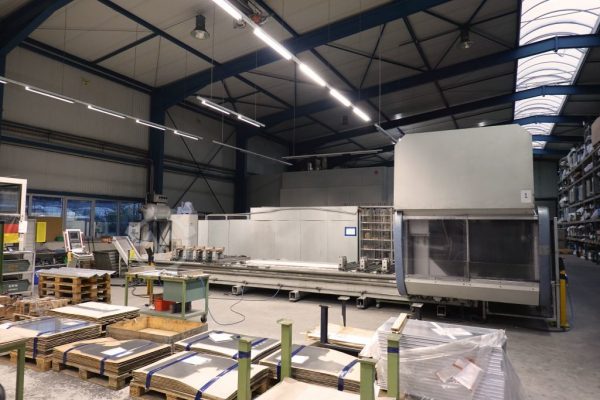

MAKA CNC milling and drilling system PM 270
for 5-axis machining
Machine in travelling portal design with drive on both sides (gantry drive)
CNC control SIEMENS 840-D for 5-axis milling with RTCP function,
mobile control panel, RAM memory 1MB, with integrated PC NCU 572.3 with floppy disk drive
Travel ranges:
Y-axis 2.350mm
X-axis 8.200mm
Z-axis 800mm
1 universal unit for 5-axis milling, nominal power 12 kW,
available from 12.000 rpm, speed infinitely variable from 1.000 to 24.000 rpm, water-cooled milling spindle
Room extraction for machining in 5-axis operation.
Tool interface HSK F63 for automatic tool change
Chain tool magazine with 16 places for tools up to max. 160mm diameter and 160mm total length from spindle (= with 70 mm basic length for tool holder + 90 mm discharge length).
A saw blade with a diameter of up to 350 mm can be deposited (occupies 3 depositing places).
Magazine arranged on the unit starting position.
hydraulic profile clamping units for the insertion of quick-change clamping jaws
1 hydraulic ag
