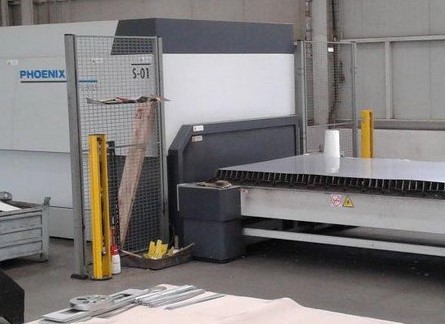

LVD PHOENIX FL 3015 – 2015 Model

Get Quote

Category:

Description

Metal length 3050 mm
Power 6000 W
Metal width 1525 mm
Type Fiber
Option to cut tubes no
CNC yes
CNC type SINUMERIC 840 D
Travel X 3185 mm
Travel Y 1560 mm
Travel Z 130 mm
Max weight of the workpiece 750 kg
Length x width x height 8825.0 × 2560.0 × 2550.0
Weight 12000 kg
Worked hours 7012 hours

Machine type: LASER
Manufacturer LVD
Machine type PHOENIX FL 3015
Year of production 10/2016
Basic parameters 3050x1525mm
Technical parameters:
Machine weight: 12000 kg
Sheet size: 3050×1525 mm
Laser power: 6000 W
Laser Source: IPG Fiber Laser
Max. workpiece weight: 750 kg
Transversal travel: – x 3185
Longitudinal travel: – Axle of 130
Vertical Travel: – Y axis 1560
Machine dimensions L x W x H: 8825x2560x2550 mm

It is put into operation in 2017. The SINUMERIC 840 D control system.
The clock status to 8.6.2018 is 7012. Output IPG source as of 1.6.2018: WT 6861: 30 ET 1569: 59
The machine is available with options:
a) Automatic nozzle replacement
b) Transmitter for control using JETCAM / by agreement transfer possibility – three licenses for JETCAM /

Other technical data:

Time to change the board: 35s
Max. Input speed X-Y: 140m / min
Max. Inserting speed Z: 30 m / min
Repeat accuracy: ± 0.025 mm
Positioning accuracy: ± 0.050 mm
Laser Type: IPG
Stability: ± 2%
Wavelength: 1 μm
Automatic table change: yes
Cutting head with NC Focus: yes
