Description

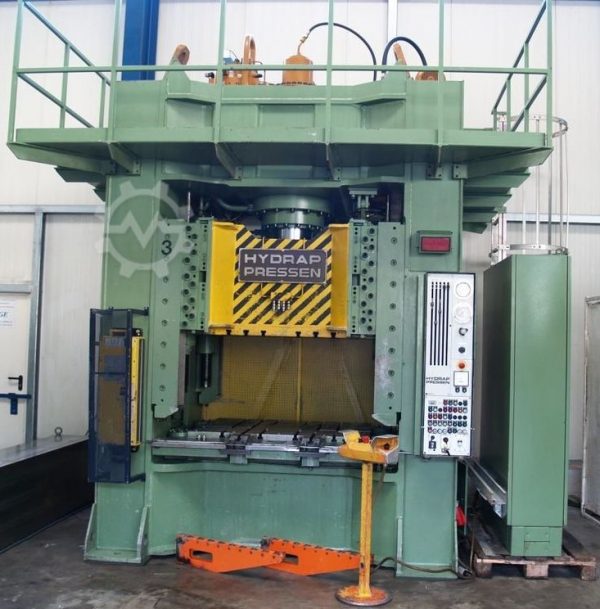

HYDRAP type HPDB 250
Double column – hydraulic press
year 1984
Pressure 250 ton.
Stand width 1350 mm
Stand width sides 500 mm
Piston stroke 500 mm
Table surface 1300 x 1000 mm
Tappet surface 1300 x 1000 mm
Mounting height max. 710 mm
Table height above floor 850 mm
Oil tank contents 800 litres
Motor power of main pump 2 x 22 kW
Engine output control and auxiliary pumps 7.5 / 2.2 / 1.5 kW
Power supply 400 Volt, 50 Hz, 55 kW
-Light curtain, photoelectric SICK
-4 x mechanical depth stop with electrical adjustment on the 4 butt licking
-Cut shock damping on the 4 butt licking
-ACCIDENT PREVENTION REGULATIONS VGB […] (for hand inlays)
-Machine documents and circuit diagrams available
-Working platform screwed around 50 cm on the machine head
Approximately 2700 mm wide without landing
Depth approx. 1900 mm in the tool’s base
Depth approx. 2350 mm with hydraulic tank
Machine height 3920 mm
Weight approx. ton 25.
very good condition
